Proline Promass A 100 PROFINET
Service interface
Languages
Endress+Hauser
Star topology

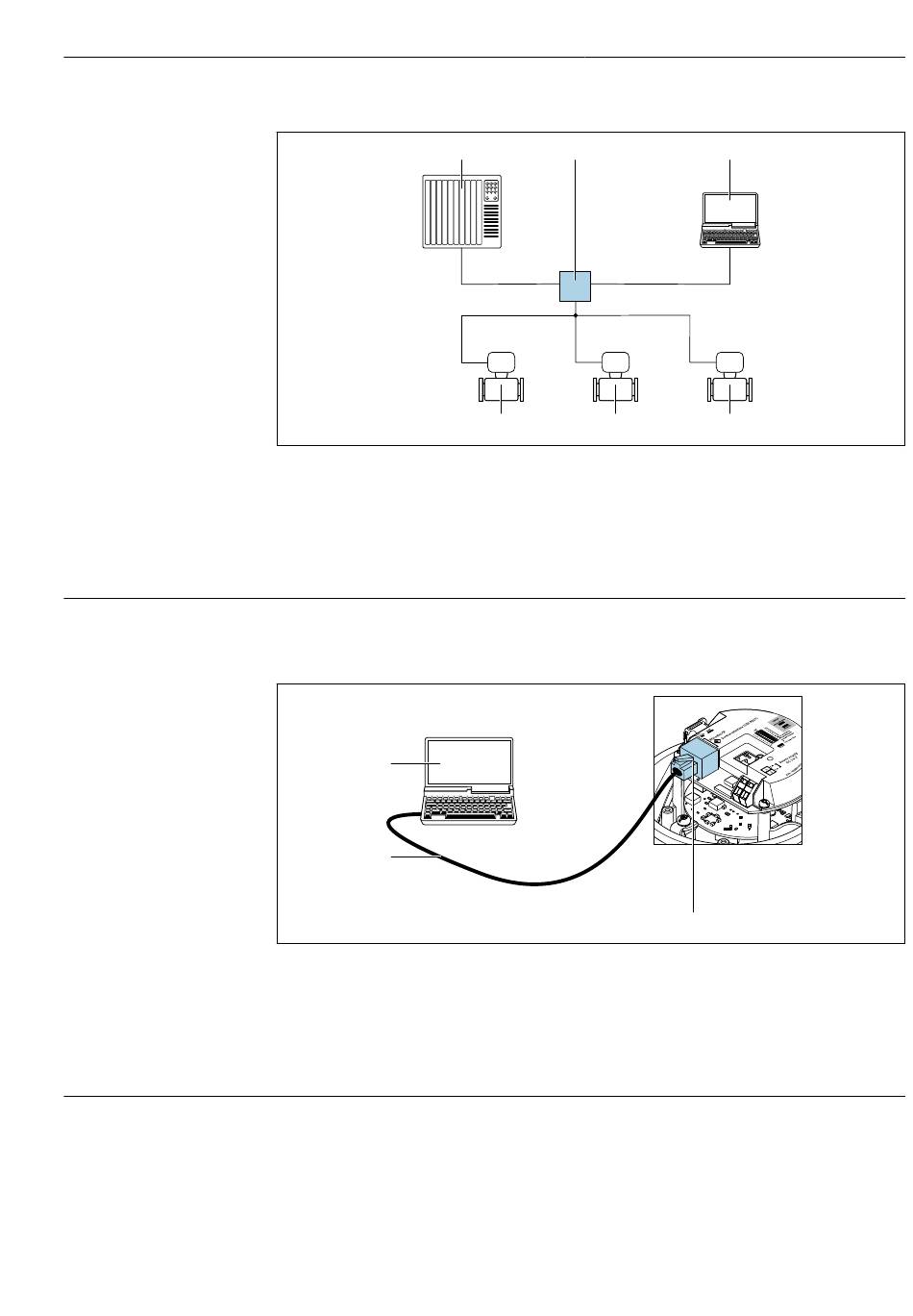

 16 Options for remote operation via PROFINET network: star topology
1 Automation system, e.g. Simatic S7 (Siemens)
2 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated Web server or computer
with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"
3 Standard Ethernet switch, e.g. Scalance X204 (Siemens)
4 Measuring device
Via service interface (CDI-RJ45)
PROFINET
2
3
 17 Connection for order code for "Output", option R: PROFINET
1 Service interface (CDI-RJ45) and PROFINET interface of the measuring device with access to the integrated
web server
2 Computer with web browser (e.g. Internet Explorer) for accessing the integrated web server or with "FieldCare"
operating tool with COM DTM "CDI Communication TCP/IP"
3 Standard Ethernet connecting cable with RJ45 plug
Can be operated in the following languages:
Via "FieldCare" operating tool: English, German, French, Spanish, Italian, Chinese, Japanese
1 3
4 4
