Endress+Hauser Proline Promass A 100 Operating Instructions Manual
Modbus rs485 coriolis flowmeter
Hide thumbs
Also See for Proline Promass A 100:
- Operating instructions manual (56 pages) ,
- Operating instructions manual (160 pages) ,
- Operating instructions manual (160 pages)
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Proline Promass A 100
Summary of Contents for Endress+Hauser Proline Promass A 100

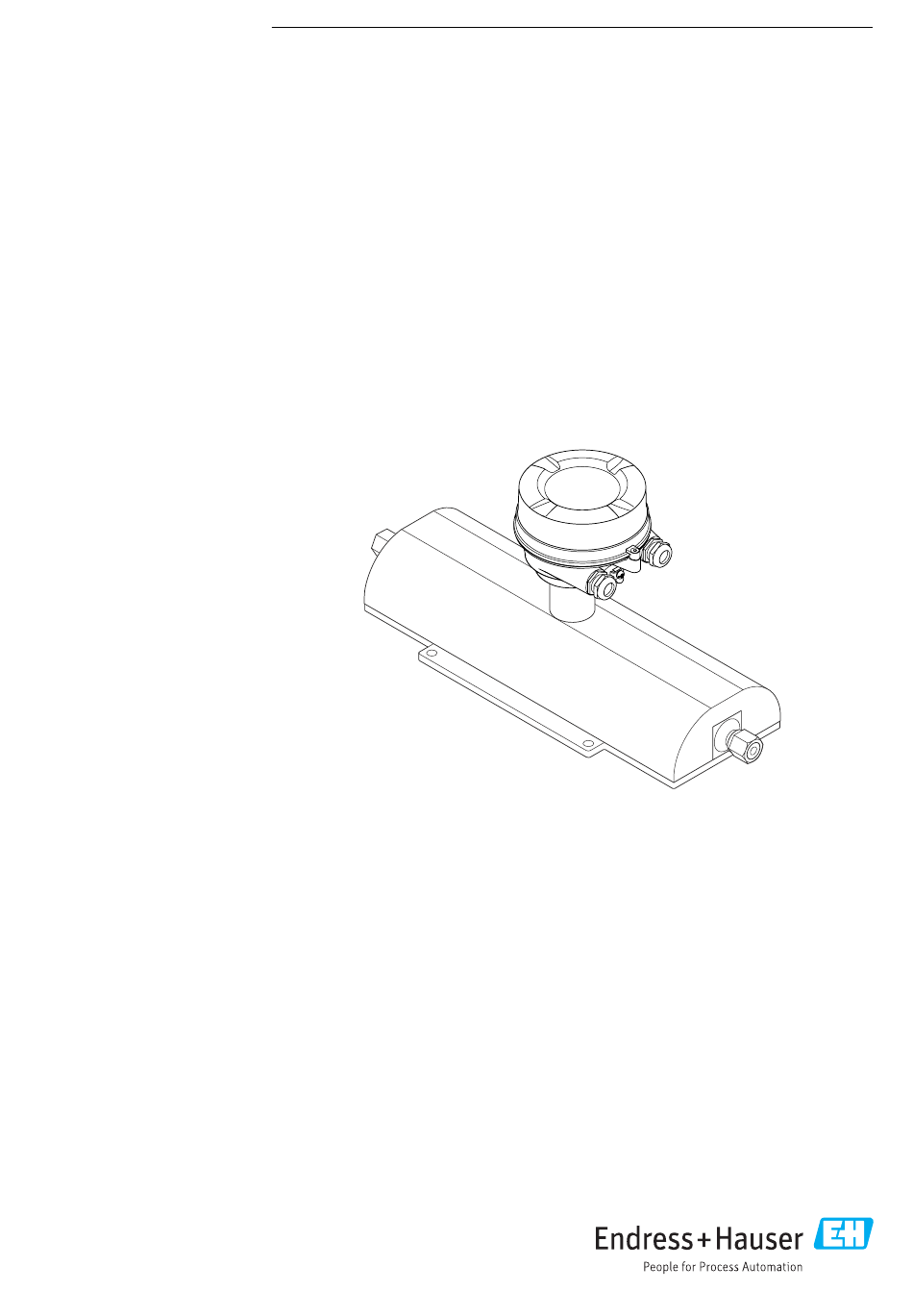

- Page 1 Products Solutions Services BA01179D/06/EN/02.24-00 71674395 2024-11-01 Valid as of version 01.03.zz (Device firmware) Operating Instructions Proline Promass A 100 Modbus RS485 Coriolis flowmeter...
- Page 2 • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser sales organization will supply you with current information and updates to this manual. Endress+Hauser...
-
Page 3: Table Of Contents
Proline Promass A 100 Modbus RS485 Table of contents Table of contents Installing the measuring instrument ..25 About this document ....6 6.2.1... - Page 4 10.5.3 Carrying out a sensor adjustment ..62 13.3 Endress+Hauser services ....87 10.5.4 Configuring the totalizer ..65 10.5.5 Using parameters for device...
-
Page 5: Endress+Hauser
Proline Promass A 100 Modbus RS485 Table of contents Index ....... . . 113... -
Page 6: About This Document
About this document Proline Promass A 100 Modbus RS485 About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal. -
Page 7: Symbols For
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser... -
Page 8: Registered Trademarks
About this document Proline Promass A 100 Modbus RS485 The following documentation may be available depending on the device version ordered: Document type Purpose and content of the document Technical Information (TI) Planning aid for your device The document contains all the technical data on the device and provides an overview of the accessories and other products that can be ordered for the device. -
Page 9: Safety Instructions
Proline Promass A 100 Modbus RS485 Safety instructions Safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. -
Page 10: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 11: Security
Proline Promass A 100 Modbus RS485 Safety instructions IT security Our warranty is valid only if the product is installed and used as described in the Operating Instructions. The product is equipped with security mechanisms to protect it against any inadvertent changes to the settings. -
Page 12: Product Description
Product description Proline Promass A 100 Modbus RS485 Product description The device consists of a transmitter and a sensor. The Safety Barrier Promass 100 is part of the scope of supply and must be implemented to operate the device. The device is available as a compact version: The transmitter and sensor form a mechanical unit. -
Page 13: Incoming Acceptance And Product
• Enter the serial numbers from the nameplates in the Device Viewer (www.endress.com/deviceviewer): all the information about the device is displayed. • Enter the serial numbers from the nameplates into the Endress+Hauser Operations app or scan the DataMatrix code on the nameplate with the Endress+Hauser Operations app: all the information about the device is displayed. -
Page 14: Transmitter Nameplate
Incoming acceptance and product identification Proline Promass A 100 Modbus RS485 4.2.1 Transmitter nameplate Order code: Ser. no.: Ext. ord. cd.: A0030222 2 Example of a transmitter nameplate Manufacturer address/certificate holder Name of the transmitter Order code Serial number Extended order code Electrical connection data, e.g. -
Page 15: Sensor Nameplate
Proline Promass A 100 Modbus RS485 Incoming acceptance and product identification 4.2.2 Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: Date: A0029199 3 Example of a sensor nameplate Name of the sensor Manufacturer address/certificate holder Order code Serial number (Ser. no.) Extended order code (Ext. -
Page 16: Promass 100 Safety Barrier Nameplate
Incoming acceptance and product identification Proline Promass A 100 Modbus RS485 4.2.3 Promass 100 safety barrier nameplate Safe area NON intrinsically safe circuit (grey terminals) Promass 100 Safety Barrier Intrinsically safe circuits (blue terminals) HAZARDOUS area A0017854 4 Example of a Promass 100 safety barrier nameplate Non-hazardous area or Zone 2/Div. -
Page 17: Storage And Transport
Proline Promass A 100 Modbus RS485 Storage and transport Storage and transport Storage conditions Observe the following notes for storage: ‣ Store in the original packaging to ensure protection from shock. ‣ Do not remove protective covers or protective caps installed on process connections. -
Page 18: Measuring Devices With Lifting Lugs
Storage and transport Proline Promass A 100 Modbus RS485 5.2.2 Measuring devices with lifting lugs CAUTION Special transportation instructions for devices with lifting lugs ‣ Only use the lifting lugs fitted on the device or flanges to transport the device. -
Page 19: Installation
Proline Promass A 100 Modbus RS485 Installation Installation Installation requirements 6.1.1 Installation position Installation point A0028772 To prevent measuring errors arising from accumulation of gas bubbles in the measuring pipe, avoid the following mounting locations in the piping: • Highest point of a pipeline. -
Page 20: Inlet And Outlet Runs
Installation Proline Promass A 100 Modbus RS485 Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ¹⁄₂₄ 0.03 ¹⁄₁₂ 0.06 ¹⁄₈ 0.12 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction (direction of medium flow through the piping). -
Page 21: Environmental And Process Requirements
Proline Promass A 100 Modbus RS485 Installation 6.1.2 Environmental and process requirements Ambient temperature range Measuring device • –40 to +60 °C (–40 to +140 °F) • Order code for "Test, certificate", option JM: –50 to +60 °C (–58 to +140 °F) Safety barrier Promass 100 –40 to +60 °C (–40 to +140 °F) -
Page 22: Special Installation Instructions
Installation Proline Promass A 100 Modbus RS485 A0034391 6 Thermal insulation with exposed extended neck Heating NOTICE Electronics can overheat due to elevated ambient temperature! ‣ Observe maximum permitted ambient temperature for the transmitter. ‣ Depending on the medium temperature, take the device orientation requirements into account. - Page 23 Proline Promass A 100 Modbus RS485 Installation Rupture disk Process-related information: → 104. WARNING Danger from medium escaping! Medium escaping under pressure can cause injury or material damage. ‣ Take precautions to prevent danger to persons and damage if the rupture disk is actuated.
-
Page 24: Wall Mounting
Installation Proline Promass A 100 Modbus RS485 To get a representative zero point, ensure that: • any flow in the device is prevented during the adjustment • the process conditions (e.g. pressure, temperature) are stable and representative Verification and adjustment cannot be carried out if the following process conditions are present: •... -
Page 25: Installing The Measuring Instrument
Proline Promass A 100 Modbus RS485 Installation SW 13 SW 10 A0019746 7 Post retainer mounting kit 8 x hexagonal nut M8 × 0.8 4 x threaded bolt M8 × 150 1 x post retaining plate 1 x post securing plate 4 x spring washer for M8 4 x hexagon bolt M6 ×... -
Page 26: Post-Installation Check
Installation Proline Promass A 100 Modbus RS485 2. Install the measuring device or turn the transmitter housing so that the cable entries do not point upwards. A0029263 Post-installation check Is the device undamaged (visual inspection)? Does the measuring instrument correspond to the measuring point specifications? For example: •... -
Page 27: Electrical Connection
Proline Promass A 100 Modbus RS485 Electrical connection Electrical connection WARNING Live parts! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Set up a disconnecting device (switch or power-circuit breaker) to easily disconnect the device from the supply voltage. -
Page 28: Terminal Assignment
Electrical connection Proline Promass A 100 Modbus RS485 Connecting cable between Safety Barrier Promass 100 and measuring device Cable type Shielded twisted-pair cable with 2x2 wires. When grounding the cable shield, observe the grounding concept of the plant. Maximum cable resistance 2.5 Ω, one side Comply with the maximum cable resistance specifications to ensure the operational reliability of the measuring device. - Page 29 Proline Promass A 100 Modbus RS485 Electrical connection Connection methods available Order code Possible options for order code Power "Housing" "Electrical connection" Output supply Options Device plugs Device plugs Option Q: 2 x plug M12x1 A, B, C → 31 →...
- Page 30 Electrical connection Proline Promass A 100 Modbus RS485 72 A A0030219 9 Modbus RS485 terminal assignment, connection version for use in intrinsically safe areas (connection via Safety Barrier Promass 100) Intrinsically safe power supply Modbus RS485 Order code 10 (L+)
-
Page 31: Pin Assignment, Device Plug
Proline Promass A 100 Modbus RS485 Electrical connection 7.2.4 Pin assignment, device plug Supply voltage Promass 100 Device plug for signal transmission with supply voltage (device side), MODBUS RS485 (intrinsically safe) Assignment Supply voltage, intrinsically safe Modbus RS485 intrinsically safe... -
Page 32: Shielding And Grounding
Electrical connection Proline Promass A 100 Modbus RS485 7.2.5 Shielding and grounding Shielding and grounding concept 1. Maintain electromagnetic compatibility (EMC). 2. Take explosion protection into consideration. 3. Pay attention to the protection of persons. 4. Comply with national installation regulations and guidelines. -
Page 33: Connecting The Transmitter
Proline Promass A 100 Modbus RS485 Electrical connection 7.3.1 Connecting the transmitter The connection of the transmitter depends on the following order codes: • Housing version: compact or ultra-compact • Connection version: device plug or terminals A0016924 11 Housing versions and connection versions... -
Page 34: Connecting The Safety Barrier Promass 100
Electrical connection Proline Promass A 100 Modbus RS485 For device version with device plug: follow step 6 only. 1. Depending on the housing version, loosen the securing clamp or fixing screw of the housing cover. 2. Depending on the housing version, unscrew or open the housing cover. -
Page 35: Potential Equalization
Proline Promass A 100 Modbus RS485 Electrical connection Potential equalization 7.4.1 Requirements For potential equalization: • Pay attention to in-house grounding concepts • Take account of operating conditions, such as the pipe material and grounding • Connect the medium, sensor and transmitter to the same electric potential •... -
Page 36: Hardware Settings
Electrical connection Proline Promass A 100 Modbus RS485 Modbus RS485 intrinsically safe L- L+ A0028766 15 Connection example for Modbus RS485 intrinsically safe Control system (e.g. PLC) Cable shield provided at one end. Observe cable specifications Safety Barrier Promass 100... -
Page 37: Ensuring The Degree Of Protection
Proline Promass A 100 Modbus RS485 Electrical connection If the transmitter is used in the intrinsically safe area 220 Ω 27 A A0030217 17 Terminating resistor can be enabled via DIP switch in the Safety Barrier Promass 100 Ensuring the degree of protection The measuring instrument fulfills all the requirements for the degree of protection IP66/67, Type 4X enclosure. - Page 38 Electrical connection Proline Promass A 100 Modbus RS485 Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap" → 37? Depending on the device version: Are all connectors securely tightened → 33? •...
-
Page 39: Operation Options
Proline Promass A 100 Modbus RS485 Operation options Operation options Overview of operation options A0017760 Computer with "FieldCare" or "DeviceCare" operating tool via Commubox FXA291 and service interface Automation system (e.g. PLC) Endress+Hauser... -
Page 40: Structure And Function Of The Operating Menu
Operation options Proline Promass A 100 Modbus RS485 Structure and function of the operating menu 8.2.1 Structure of the operating menu For an overview of the operating menu for experts: see the "Description of Device Parameters" document supplied with the device → 112... -
Page 41: Operating Philosophy
Proline Promass A 100 Modbus RS485 Operation options 8.2.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. Menu/parameter... - Page 42 Operation options Proline Promass A 100 Modbus RS485 X X X X X X X 1120.50 kg/h A0037831 Operational display Tag name Status area Display area for measured values (4-line) Status area The following symbols appear in the status area of the operational display at the top right: •...
-
Page 43: User Roles And Related Access Authorization
Proline Promass A 100 Modbus RS485 Operation options Totalizer The measurement channel number indicates which of the three totalizers is displayed. Output Measurement channel numbers Symbol Meaning Measurement channel 1 to 4 The measurement channel number is displayed only if more than one channel is present for the same measured variable type (e.g. -
Page 44: Access To The Operating Menu Via The Operating Tool
FieldCare Function range FDT-based (Field Device Technology) plant asset management tool from Endress+Hauser. It can configure all smart field units in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition. -
Page 45: User Interface
DeviceCare Function range Tool for connecting and configuring Endress+Hauser field devices. The fastest way to configure Endress+Hauser field devices is with the dedicated "DeviceCare" tool. Together with the device type managers (DTMs) it presents a convenient, comprehensive solution. Innovation brochure IN01047S Source for device description files →... -
Page 46: System Integration
System integration Proline Promass A 100 Modbus RS485 System integration Overview of device description files 9.1.1 Current version data for the device Firmware version 01.03.zz • On the title page of the manual • On the transmitter nameplate • Firmware version Diagnostics →... -
Page 47: Register Information
Proline Promass A 100 Modbus RS485 System integration Code Name Description Application Write single Master writes a new value to one Write only 1 device parameter registers Modbus register of the measuring Example: reset totalizer device. Use function code 16 to write multiple registers with just 1 telegram. -
Page 48: Byte Transmission Sequence
System integration Proline Promass A 100 Modbus RS485 INTEGER Data length = 2 bytes (1 register) Byte 1 Byte 0 Most significant byte (MSB) Least significant byte (LSB) STRING Data length = depends on the device parameter, e.g. presentation of a device parameter with a data length = 18... -
Page 49: Modbus Data Map
Proline Promass A 100 Modbus RS485 System integration 0 – 1 – 2 – 3 Byte 16 Byte 17 Byte 0 Byte 1 2 – 3 – 0 – 1 (MSB) (LSB) * = factory setting, MSB = most significant byte, LSB = least significant byte 9.2.6... - Page 50 System integration Proline Promass A 100 Modbus RS485 Configuration of the scan list via Modbus RS485 Carried out using register addresses 5001 - 5016 Scan list Modbus RS485 register Data type Configuration register 5001 Integer Scan list register 0 Integer...
-
Page 51: Commissioning
Proline Promass A 100 Modbus RS485 Commissioning Commissioning 10.1 Post-mounting and post-connection check Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • Checklist for "Post-installation" check→ 26 • Checklist for "Post-connection" check→ 37 10.2... -
Page 52: Parameter Overview With Brief Description
Commissioning Proline Promass A 100 Modbus RS485 Navigation "Setup" menu → Device tag Parameter overview with brief description Parameter Description User entry Device tag Enter the name for the measuring point. Max. 32 characters, such as letters, numbers or special characters (e.g. @, %, /). - Page 53 Proline Promass A 100 Modbus RS485 Commissioning Parameter overview with brief description Parameter Description Selection Factory setting Mass flow unit Select mass flow unit. Unit choose list Country-specific: • kg/h (DN > 150 (6"): t/h Effect option) The selected unit applies to: •...
- Page 54 Commissioning Proline Promass A 100 Modbus RS485 Parameter Description Selection Factory setting Temperature unit Select temperature unit. Unit choose list Country-specific: • °C Effect • °F The selected unit applies to: • Electronic temperature parameter (6053) • Maximum value parameter (6051) •...
-
Page 55: Selecting And Setting The Medium
Proline Promass A 100 Modbus RS485 Commissioning 10.4.3 Selecting and setting the medium The Select medium wizard submenu contains parameters that must be configured in order to select and set the medium. Navigation "Setup" menu → Medium selection ‣ Medium selection Select medium →... -
Page 56: Configuring The Communication Interface
Commissioning Proline Promass A 100 Modbus RS485 Parameter Prerequisite Description Selection / User entry Reference sound velocity In the Select gas type parameter, the Enter sound velocity of gas at 0 °C (32 1 to 99 999.9999 m/s Others option is selected. - Page 57 Proline Promass A 100 Modbus RS485 Commissioning Parameter Description User entry / Selection Parity Select parity bits. Picklist ASCII option: • 0 = Even option • 1 = Odd option Picklist RTU option: • 0 = Even option • 1 = Odd option •...
-
Page 58: Configuring The Low Flow Cut Off
Commissioning Proline Promass A 100 Modbus RS485 10.4.5 Configuring the low flow cut off The Low flow cut off submenu contains the parameters that must be set in order to configure the low flow cut off. Navigation "Setup" menu → Low flow cut off ‣... -
Page 59: Configuring Partially Filled Pipe
Proline Promass A 100 Modbus RS485 Commissioning 10.4.6 Configuring partially filled pipe detection The Partially filled pipe detection submenu contains parameters that have to be set for configuring empty pipe detection. Navigation "Setup" menu → Partially filled pipe detection ‣... -
Page 60: Using The Parameter To Enter The Access Code
Commissioning Proline Promass A 100 Modbus RS485 10.5 Advanced settings The Advanced setup submenu with its submenus contains parameters for specific settings. The number of submenus can vary depending on the device version, e.g. viscosity is available only with the Promass I. - Page 61 Proline Promass A 100 Modbus RS485 Commissioning "Corrected volume flow calculation" submenu Navigation "Setup" menu → Advanced setup → Calculated values → Corrected volume flow calculation ‣ Corrected volume flow calculation → 61 Select reference density (1812) External reference density (6198) →...
-
Page 62: Carrying Out A Sensor Adjustment
Commissioning Proline Promass A 100 Modbus RS485 10.5.3 Carrying out a sensor adjustment The Sensor adjustment submenu contains parameters that pertain to the functionality of the sensor. Navigation "Setup" menu → Advanced setup → Sensor adjustment ‣ Sensor adjustment Installation direction →... - Page 63 Proline Promass A 100 Modbus RS485 Commissioning 2. In the Density setpoint 1 parameter, enter the density value and confirm. In the Execute density adjustment parameter the following options are now available: Measure density 1 option Restore original 3. Select the Measure density 1 option and confirm.
- Page 64 Commissioning Proline Promass A 100 Modbus RS485 Navigation "Expert" menu → Sensor → Sensor adjustment → Density adjustment ‣ Density adjustment Density adjustment mode → 64 Density setpoint 1 → 64 → 64 Density setpoint 2 Execute density adjustment →...
-
Page 65: Configuring The Totalizer
Proline Promass A 100 Modbus RS485 Commissioning Zero verification and zero adjustment All measuring instruments are calibrated in accordance with state-of-the-art technology. Calibration takes place under reference conditions → 98. Therefore, a zero adjustment in the field is generally not required. -
Page 66: Using Parameters For Device Administration
Commissioning Proline Promass A 100 Modbus RS485 Navigation "Setup" menu → Advanced setup → Totalizer 1 to n ‣ Totalizer 1 to n Assign process variable → 66 Unit totalizer → 66 → 66 Totalizer operation mode Failure mode →... -
Page 67: Simulation
Proline Promass A 100 Modbus RS485 Commissioning Parameter overview with brief description Parameter Description Selection Device reset Reset the device configuration - either entirely or in part - to a • Cancel defined state. • To fieldbus defaults • To delivery settings •... -
Page 68: Write Protection Via Write Protection Switch
Commissioning Proline Promass A 100 Modbus RS485 10.7.1 Write protection via write protection switch The write protection switch makes it possible to block write access to the entire operating menu with the exception of the following parameters: • External pressure •... -
Page 69: Operation
Proline Promass A 100 Modbus RS485 Operation Operation 11.1 Reading the device locking status Device active write protection: Locking status parameter Navigation "Operation" menu → Locking status Function scope of "Locking status" parameter Options Description Hardware locked The locking switch (DIP switch) for locking the hardware is activated on the main electronic module. - Page 70 Operation Proline Promass A 100 Modbus RS485 Volume flow → 70 Corrected volume flow → 70 → 70 Density Reference density → 71 Temperature → 71 Pressure → 71 → 71 Concentration Target mass flow →...
-
Page 71: Totalizer" Submenu
Proline Promass A 100 Modbus RS485 Operation Parameter Prerequisite Description User interface Reference density – Displays the reference density that is Signed floating-point currently calculated. number Dependency The unit is taken from: Reference density unit parameter (→ 53) Temperature –... -
Page 72: Adapting The Measuring Device To The Process Conditions
Operation Proline Promass A 100 Modbus RS485 Navigation "Diagnostics" menu → Measured values → Totalizer ‣ Totalizer Totalizer value 1 to n → 72 Totalizer overflow 1 to n → 72 Parameter overview with brief description Parameter Prerequisite... -
Page 73: Function Scope Of "Control Totalizer
Proline Promass A 100 Modbus RS485 Operation Preset value 1 to n → 73 Totalizer value 1 to n → 73 → 73 Reset all totalizers Parameter overview with brief description Parameter Prerequisite Description Selection / User Factory setting entry / User... -
Page 74: Function Range Of "Reset All Totalizers" Parameter
Operation Proline Promass A 100 Modbus RS485 Options Description Preset + hold The totaling process is stopped and the totalizer is set to its defined start value from the Preset value parameter. Reset + totalize The totalizer is reset to 0 and the totaling process is restarted. -
Page 75: Diagnostics And Troubleshooting
Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting For output signals Error Possible causes Remedial action Green power LED on the main electronics Supply voltage does not match the voltage Apply the correct supply voltage → 33. -
Page 76: Safety Barrier Promass 100
Diagnostics and troubleshooting Proline Promass A 100 Modbus RS485 A0029689 Supply voltage Device status Not used Communication Service interface (CDI) active 1. Open the housing cover. 2. Remove the display module. 3. Fold open the terminal cover. Color Meaning Supply voltage... -
Page 77: Diagnostic Information In Fieldcare Or
Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting 12.3 Diagnostic information in FieldCare or DeviceCare 12.3.1 Diagnostic options Any faults detected by the measuring device are displayed on the home page of the operating tool once the connection has been established. -
Page 78: Calling Up Remedy Information
Diagnostics and troubleshooting Proline Promass A 100 Modbus RS485 Diagnostic information The fault can be identified using the diagnostic information. The short text helps you by providing information about the fault. Diagnostic information Diagnostic code Status signal Diagnostic number Short text ↓... -
Page 79: Adapting The Diagnostic Information
Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting Parameter overview with brief description Parameter Description Options Factory setting Failure mode Select measured value • NaN value NaN value output behavior when a • Last valid value diagnostic message occurs ... - Page 80 Diagnostics and troubleshooting Proline Promass A 100 Modbus RS485 Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Data storage 1. Check module connections Alarm 2. Contact service Memory content 1. Restart device Alarm 2.
-
Page 81: Pending Diagnostic Events
Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Sensor temperature too Increase ambient temp. around Warning the sensor housing Electronic temperature too Reduce ambient temperature... -
Page 82: Diagnostics List
Diagnostics and troubleshooting Proline Promass A 100 Modbus RS485 Operating time from restart → 82 Operating time → 82 Parameter overview with brief description Parameter Prerequisite Description User interface Actual diagnostics A diagnostic event has occurred. Shows the current occured diagnostic... -
Page 83: Filtering The Event Logbook
Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting In addition to the operation time of its occurrence and possible troubleshooting measures, each event is also assigned a symbol that indicates whether the event has occurred or has ended: • Diagnostic event •... -
Page 84: 12.10 Resetting The Measuring Device
Diagnostics and troubleshooting Proline Promass A 100 Modbus RS485 Info number Info name I1451 Monitoring on I1457 Failed:Measured error verification I1459 Failed: I/O module verification I1460 Failed: Sensor integrity verification I1461 Failed: Sensor verification I1462 Failed:Sensor electronic module verific. 12.10 Resetting the measuring device The entire device configuration or some of the configuration can be reset to a defined state with the Device reset parameter (→... - Page 85 Proline Promass A 100 Modbus RS485 Diagnostics and troubleshooting Extended order code 3 → 85 ENP version → 85 Parameter overview with brief description Parameter Description User interface Factory setting Device tag Shows name of measuring point. Max. 32 characters, such as –...
-
Page 86: 12.12 Firmware History
"Manufacturer' s information" document. The manufacturer' s information is available: • In the Download Area of the Endress+Hauser web site: www.endress.com → Downloads • Specify the following details: •... -
Page 87: Maintenance
• Observe the maximum permitted medium temperature for the measuring device . 13.2 Measuring and test equipment Endress+Hauser offers a variety of measuring and testing equipment, such as Netilion or device tests. Your Endress+Hauser Sales Center can provide detailed information on the services. -
Page 88: Repair
• The measuring devices have a modular design. • Spare parts are grouped into logical kits with the associated Installation Instructions. • Repairs are carried out by Endress+Hauser Service or by appropriately trained customers. • Certified devices can only be converted to other certified devices by Endress+Hauser Service or at the factory. -
Page 89: Disposal
Proline Promass A 100 Modbus RS485 Repair 14.5 Disposal If required by the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product is marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Do not dispose of products bearing this marking as unsorted municipal waste. -
Page 90: Accessories
Various accessories, which can be ordered with the device or subsequently from Endress +Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 91: Service-Specific Accessories
Via the Internet: https://portal.endress.com/webapp/applicator Netilion lloT ecosystem: Unlock knowledge With the Netilion IIoT ecosystem,Endress+Hauser allows you to optimize your plant performance, digitize workflows, share knowledge, and enhance collaboration. Drawing upon decades of experience in process automation, Endress+Hauser offers the process industry an IIoT ecosystem designed to effortlessly extract insights from data. -
Page 92: System Components
Accessories Proline Promass A 100 Modbus RS485 15.4 System components Accessories Description Memograph M graphic The Memograph M graphic data manager provides information on all the relevant data manager measured variables. Measured values are recorded correctly, limit values are monitored and measuring points analyzed. The data are stored in the 256 MB internal memory and also on a SD card or USB stick. -
Page 93: Technical Data
Proline Promass A 100 Modbus RS485 Technical data Technical data 16.1 Application The measuring device is intended only for the flow measurement of liquids and gases. Depending on the version ordered, the measuring device can also measure potentially explosive, flammable, poisonous and oxidizing media. -
Page 94: Input
Technical data Proline Promass A 100 Modbus RS485 16.3 Input Measured variable Direct measured variables • Mass flow • Density • Temperature Calculated measured variables • Volume flow • Corrected volume flow • Reference density Measuring range Measuring range for liquids Measuring range full scale values ... -
Page 95: Output
• Operating pressure to increase measurement accuracy (Endress+Hauser recommends the use of a pressure measuring instrument for absolute pressure, e.g. Cerabar M or Cerabar S) •... -
Page 96: Light Emitting Diodes (Led)
Technical data Proline Promass A 100 Modbus RS485 Interface/protocol • Via digital communication: Modbus RS485 • Via service interface CDI-RJ45 service interface Plain text display With information on cause and remedial measures Light emitting diodes (LED) Status information Status indicated by various light emitting diodes The following information is displayed depending on the device version: •... -
Page 97: Power Supply
Proline Promass A 100 Modbus RS485 Technical data 16.5 Power supply Terminal assignment • → 29 • → 28 • Supply voltage The power unit must be tested to ensure it meets safety requirements (e.g. PELV, SELV). Transmitter •... -
Page 98: Performance Characteristics
Technical data Proline Promass A 100 Modbus RS485 Power supply failure • Totalizers stop at the last value measured. • Depending on the device version, the configuration is retained in the device memory or in the pluggable data memory (HistoROM DAT). -
Page 99: Zero Point Stability
Proline Promass A 100 Modbus RS485 Technical data Density (liquids) Under reference conditions Standard density calibration Wide-range 2) 3) Density specification [g/cm³] [g/cm³] [g/cm³] ±0.0005 ±0.001 ±0.002 For devices with the order code "Measuring tube material, wetted surface", option HB "Alloy C22, high pressure, not polished", the standard density calibration ±0.002 g/cm³... -
Page 100: Influence Of Medium Temperature
Technical data Proline Promass A 100 Modbus RS485 Base repeatability Design fundamentals → 101 Mass flow and volume flow (liquids) ±0.05 % o.r. Mass flow (gases) ±0.25 % o.r. Density (liquids) ±0.00025 g/cm Temperature ±0.25 °C ± 0.0025 · T °C (±0.45 °F ± 0.0015 · (T–32) °F) Response time The response time depends on the configuration (damping). - Page 101 Proline Promass A 100 Modbus RS485 Technical data Influence of medium A difference between the calibration pressure and process pressure does not affect pressure accuracy. Influence of process density If there is a difference in density between the calibration density and the process density, the measurement error for the measured density is typically: •...
-
Page 102: Mounting
Technical data Proline Promass A 100 Modbus RS485 16.7 Mounting Mounting requirements → 19 16.8 Environment Ambient temperature → 21→ 21 range Temperature tables Observe the interdependencies between the permitted ambient and fluid temperatures when operating the device in hazardous areas. -
Page 103: Process
Proline Promass A 100 Modbus RS485 Technical data Electromagnetic • As per IEC/EN 61326 and NAMUR Recommendation 21 (NE 21) compatibility (EMC) • As per IEC/EN 61000-6-2 and IEC/EN 61000-6-4 • Complies with emission limits for industry as per EN 55011 (Class A) Details are provided in the Declaration of Conformity. -
Page 104: Flow Limit
Technical data Proline Promass A 100 Modbus RS485 If the device is fitted with a rupture disk (order code for "Sensor option", option CA "Rupture disk"), the rupture disk trigger pressure is decisive . The sensor housing burst pressure refers to a typical internal pressure which is reached prior to mechanical failure of the sensor housing and which was determined during type testing. -
Page 105: 16.10 Mechanical Construction
Proline Promass A 100 Modbus RS485 Technical data 16.10 Mechanical construction Design, dimensions For the dimensions and installation lengths of the device, see the "Technical Information" document, "Mechanical construction" section Weight All values (weight exclusive of packaging material) refer to devices with EN/DIN PN 40 flanges. -
Page 106: Sensor Housing
Technical data Proline Promass A 100 Modbus RS485 Cable entries/cable glands A0020640 19 Possible cable entries/cable glands Female thread M20 × 1.5 Cable gland M20 × 1.5 Adapter for cable entry with female thread G ½" or NPT ½"... - Page 107 Proline Promass A 100 Modbus RS485 Technical data Process connections VCO coupling • Stainless steel, 1.4404 (316/316L) • Alloy C22, 2.4602 (UNS N06022) Tri-clamp Stainless steel, 1.4539 (904L) Adapter, flanges as per EN 1092-1 (DIN 2501), ASME B16.5, JIS B2220 •...
-
Page 108: 16.11 Operability
The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. UKCA marking The device meets the legal requirements of the applicable UK regulations (Statutory Instruments). - Page 109 Proline Promass A 100 Modbus RS485 Technical data Contact address Endress+Hauser UK: Endress+Hauser Ltd. Floats Road Manchester M23 9NF United Kingdom www.uk.endress.com RCM marking The measuring system meets the EMC requirements of the "Australian Communications and Media Authority (ACMA)". Ex-approval The devices are certified for use in hazardous areas and the relevant safety instructions are provided in the separate "Safety Instructions"...
-
Page 110: 16.13 Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. -
Page 111: 16.14 Accessories
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Standard documentation Brief Operating instructions... -
Page 112: Special Documentation
Technical data Proline Promass A 100 Modbus RS485 Description of Device Parameters Measuring device Documentation code Proline Promass 100 GP01035D Supplementary device- Safety Instructions dependent documentation Content Documentation code ATEX/IECEx Ex i XA00159D ATEX/IECEx Ex nA XA01029D cCSAus IS XA00160D... - Page 113 Proline Promass A 100 Modbus RS485 Index Index 0 … 9 Operating menu ......40 Design fundamentals 3-A approval .
- Page 114 Index Proline Promass A 100 Modbus RS485 Events list ....... . . 82 Ex-approval .
- Page 115 Proline Promass A 100 Modbus RS485 Index Mounting preparations ..... . . 25 Zero point adjustment (Submenu) ... . . 65 Mounting requirements Performance characteristics .
- Page 116 Index Proline Promass A 100 Modbus RS485 Medium ....... . 55 see Measuring device design Operating language .
- Page 118 *71674395* 71674395 www.addresses.endress.com...
