Endress+Hauser Proline Promass A 100 PROFINET Operating Instructions Manual page 20

Installation
20
DN
[mm]
1
2
4

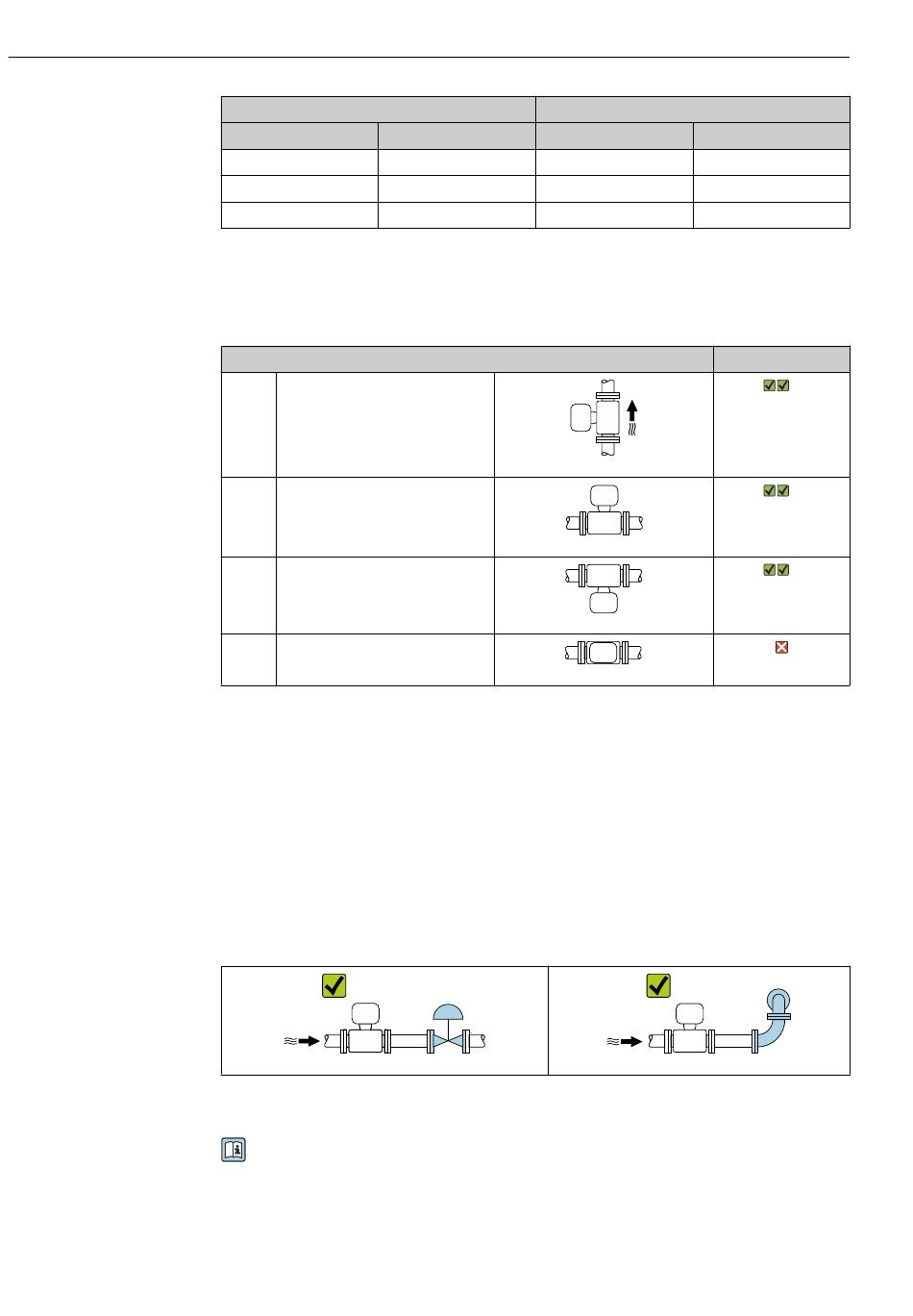

Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor
according to the flow direction (direction of medium flow through the piping).
A Vertical orientation
B Horizontal orientation, transmitter at
top
C Horizontal orientation, transmitter at
bottom
D Horizontal orientation, transmitter at
side
1) This orientation is recommended to ensure self-draining.
2) Applications with low process temperatures may reduce the ambient temperature. To maintain the
minimum ambient temperature for the transmitter, this orientation is recommended.
3) Applications with high process temperatures may increase the ambient temperature. To maintain the
maximum ambient temperature for the transmitter, this orientation is recommended.
If a sensor is installed horizontally with a curved measuring tube, match the position of the
sensor to the fluid properties.
Inlet and outlet runs
No special precautions need to be taken for fittings that create turbulence, such as valves,
elbows or T-pieces, as long as no cavitation occurs →  21.
Installation dimensions
For the dimensions and installation lengths of the device, see the "Technical
Information" document, "Mechanical construction" section
Ø orifice plate, pipe restriction
[in] [mm]
¹⁄₂₄ 0.8
¹⁄₁₂ 1.5
¹⁄₈ 3.0
Orientation
A0029322
Proline Promass A 100 PROFINET
[in]
0.03
0.06
0.12
Recommendation
A0015591
A0015589
A0015590
A0015592
Endress+Hauser
1)
2)
3)
A0029323
