Proline Promass A 100 PROFINET
Endress+Hauser
7.2.3 Terminal assignment
Transmitter
PROFINET connection version
Order code for "Output", option R
Depending on the housing version, the transmitters can be ordered with terminals or
device plugs.
Connection methods available
Order code
"Housing"
Output
Options Device plug
A, B connectors
→  30
Options Device plug
A, B, C connectors
→  30
Order code for "Housing":
• Option A: compact, coated aluminum
• Option B: compact, hygienic, stainless
• Option C ultra-compact, hygienic, stainless

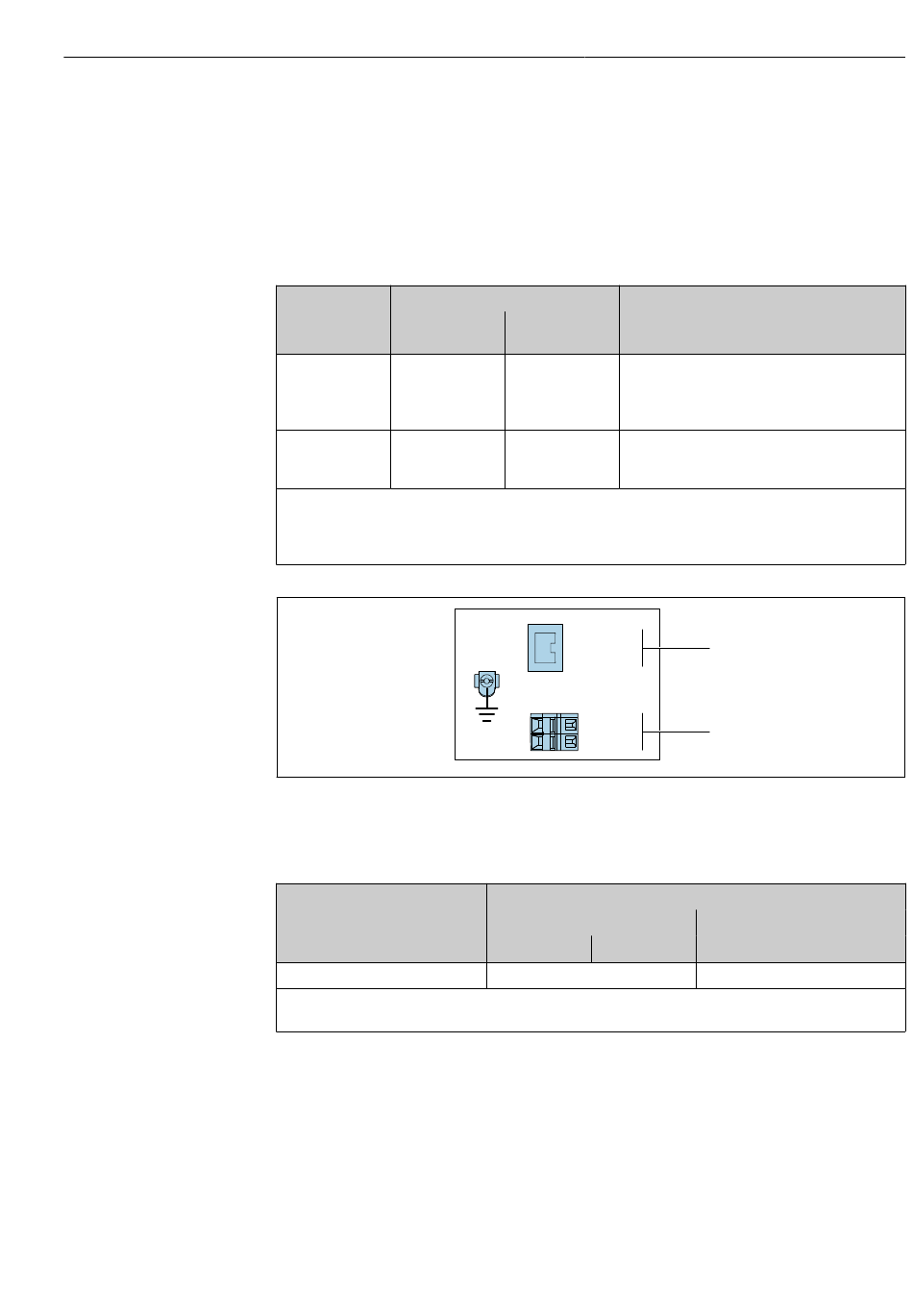

 7 PROFINET terminal assignment
1 Power supply: DC 24 V
2 PROFINET
Order code
"Output"
Option R
Order code for "Output":
Option R: PROFINET
Possible options for order code
Power
supply
Terminals • Option L: plug M12x1 + thread NPT ½"
• Option N: plug M12x1 + coupling M20
• Option P: plug M12x1 + thread G ½"
• Option U: plug M12x1 + thread M20
Device plug Option Q: 2 x plug M12x1
connectors
→  30
1 +
L
_
2
L
Terminal number
Power supply
2 (L-) 1 (L+)
DC 24 V
Electrical connection
"Electrical connection"
2
1
Output
Device plug M12x1
PROFINET
A0017054
