Operation options
46
8.5 Access to the operating menu via the operating tool
8.5.1 Connecting the operating tool
Via PROFINET network
This communication interface is available in device versions with PROFINET.
Star topology

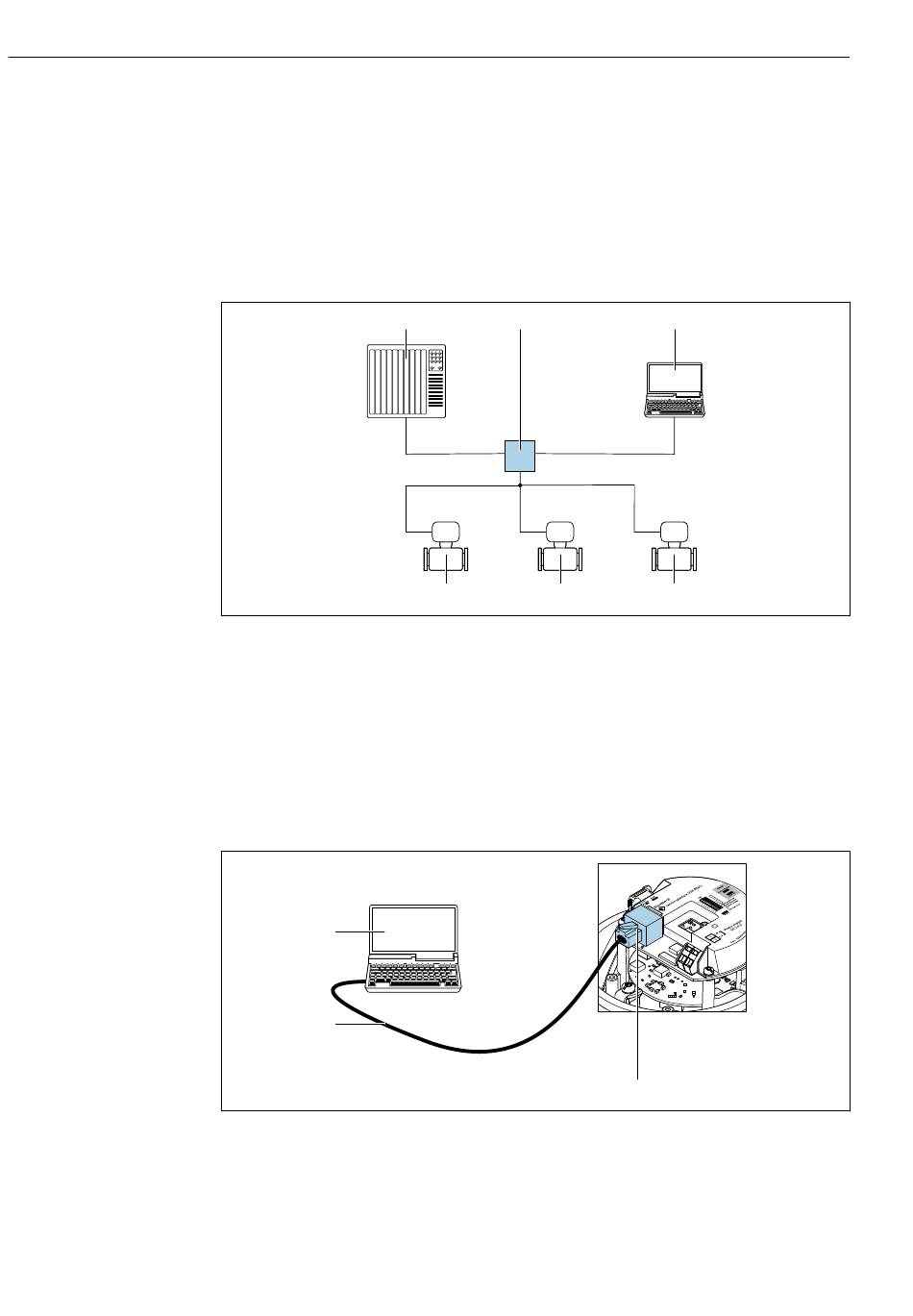

 12 Options for remote operation via PROFINET network: star topology
1 Automation system, e.g. Simatic S7 (Siemens)
2 Computer with Web browser (e.g. Internet Explorer) for accessing the integrated Web server or computer
with operating tool (e.g. FieldCare, DeviceCare, SIMATIC PDM) with COM DTM "CDI Communication TCP/IP"
3 Standard Ethernet switch, e.g. Scalance X204 (Siemens)
4 Measuring device
Via service interface (CDI-RJ45)
PROFINET
2
3
 13 Connection for order code for "Output", option R: PROFINET
1 Service interface (CDI-RJ45) and PROFINET interface of the measuring device with access to the integrated
web server
2 Computer with web browser (e.g. Internet Explorer) for accessing the integrated web server or with "FieldCare"
operating tool with COM DTM "CDI Communication TCP/IP"
3 Standard Ethernet connecting cable with RJ45 plug
1 3
4 4
Proline Promass A 100 PROFINET
2
4
1
