Proline Promass A 100 PROFINET
Endress+Hauser

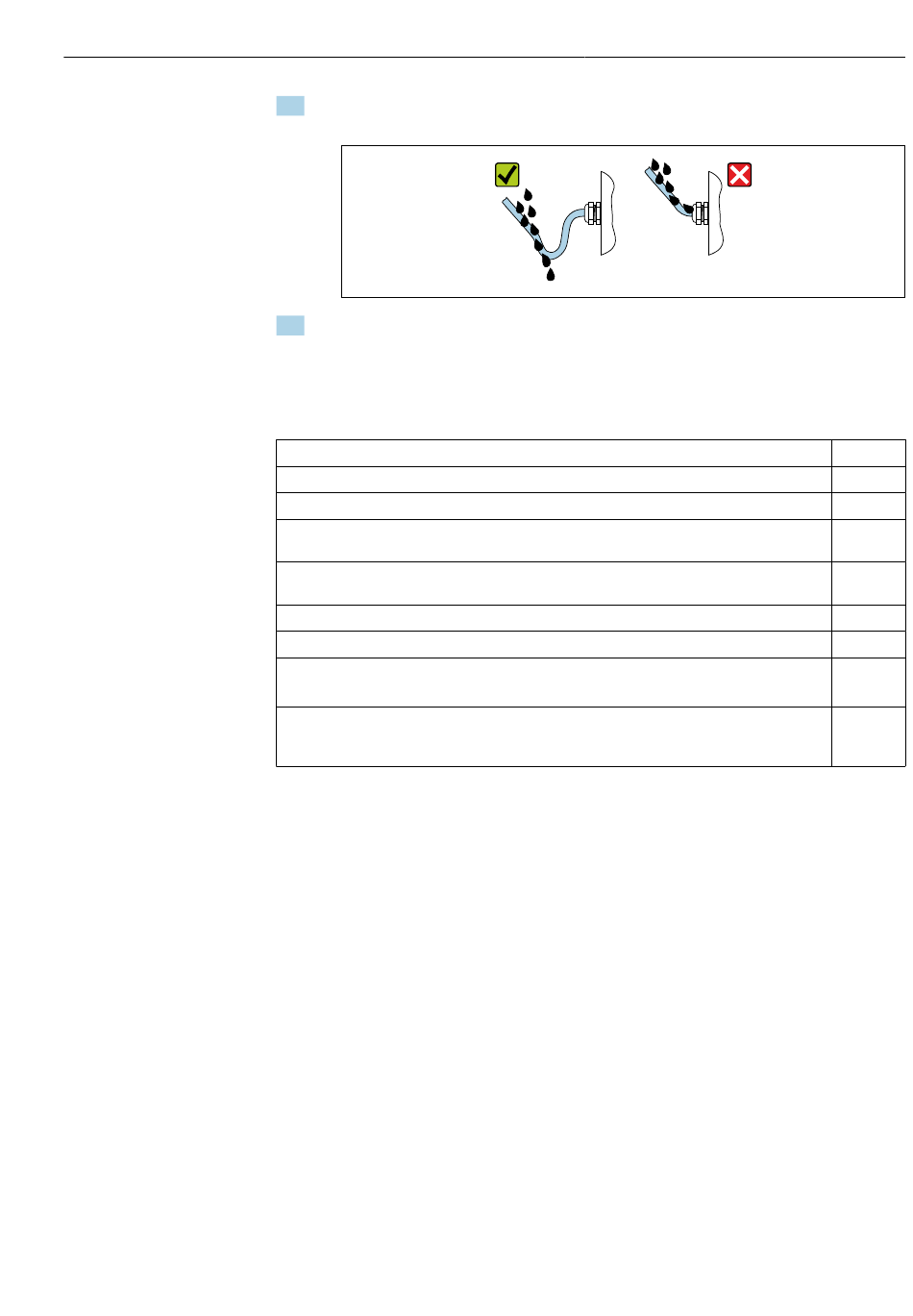

5. To ensure that moisture does not enter the cable entry:
Route the cable so that it loops down before the cable entry ("water trap").

6. The cable glands supplied do not ensure housing protection when not in use. They
must therefore be replaced by dummy plugs corresponding to the housing protection.
7.8 Post-connection check
Are the device and cable undamaged (visual inspection)?
Do the cables used comply with the requirements →  28?
Are the installed cables strain-relieved and securely routed?
Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap"
→  34?
Depending on the device version:
Are all connectors securely tightened →  31?
Does the supply voltage match the specifications on the transmitter nameplate →  136?
Is the terminal assignment →  29 or the device plug pin assignment →  30 correct?
If supply voltage is present:
Is the power LED on the transmitter electronics module lit in green →  12?
Depending on the device version:
• Have the fixing screws been tightened with the correct tightening torque?
• Is the securing clamp securely tightened?
Electrical connection
A0029278









35
