Printer Part Names

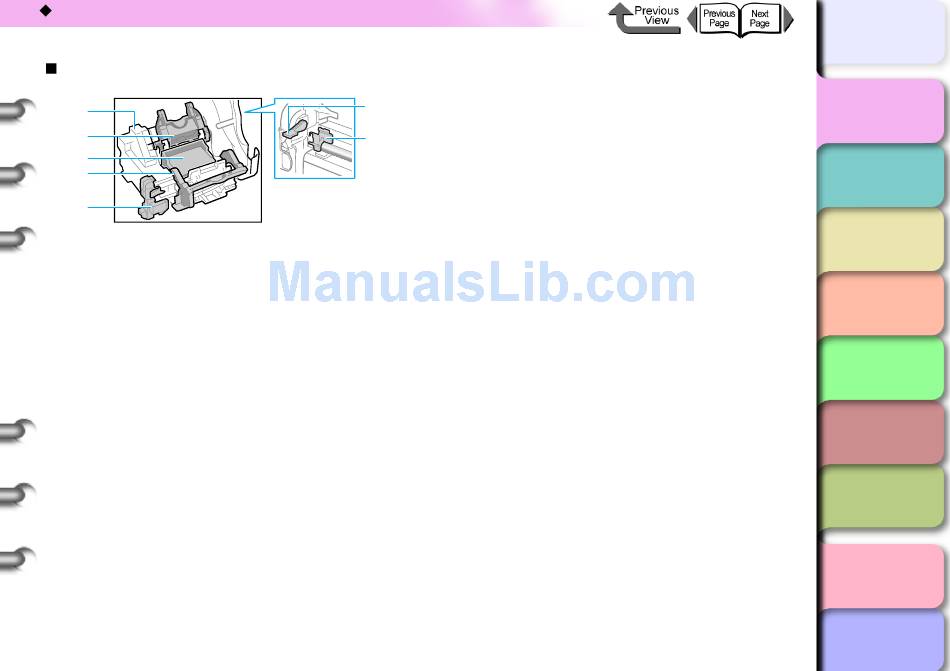

Carriage (Inside Top Cover)
a
b
c
d
e
a Carriage
The important part that moves the printhead during
printing.
b Printhead Fixer Cover
This cover locks and holds the printhead in place.
(→ P.4-21)
c Printhead
An important component that is equipped with the print
nozzles. The printer is shipped without the printhead
installed. You must install the printhead after unpacking
the printer. (→Quick Start Guide)
d Printhead Fixer Lever
This is the lever that locks the printhead fixer cover.
Open this lever to open the printhead fixer cover.
(→ P.4-21)
e Cutter Blade
The cutter unit that cuts print media automatically.
(→ P.4-27)
f Printhead Height Adjustment Lever
Use to adjust the height of the printhead. You will need to
adjust the height of the printhead for high quality printing
and printing on special media. (→ P.2-43)
1- 5
g Shaft Cleaner
The shaft cleaner prevents the carriage shaft from
becoming dirty. This cleaner must be replaced at the
f
same time as the maintenance cartridge is replaced.
g (→ P.4-19)
