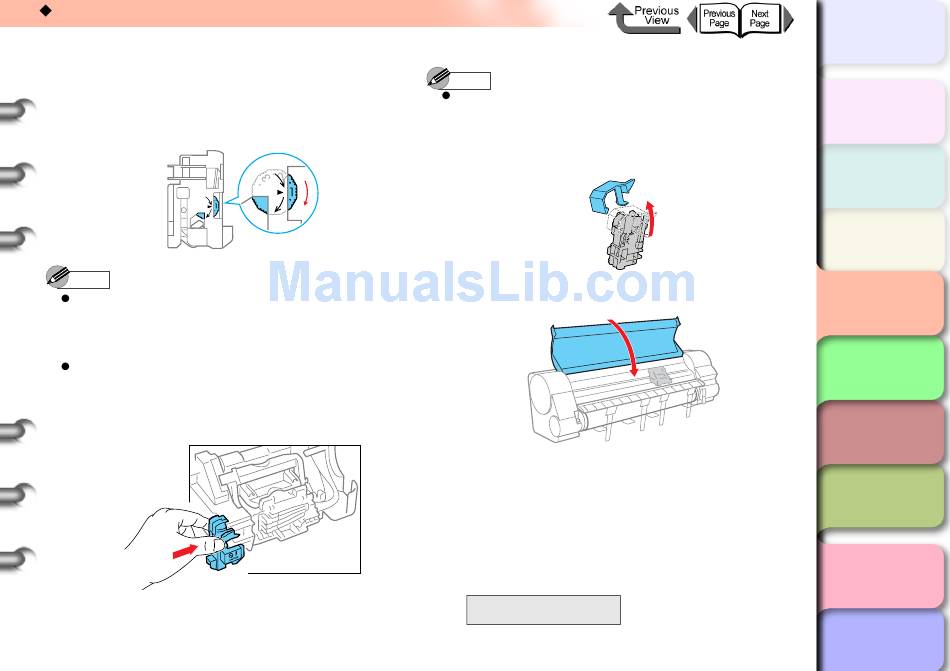

Replacing the Cutter Blade
8
Rotate the cutter position adjustment dial 1
notch in the direction shown.
If the dial is already at notch "3" replace the cutter
blade with a new one.
Note
The position adjustment dial has 3 positions that can
be adjusted; the blade cab be used at three steps (1,
2, 3). If the dial is returned to a position, the blade can
no longer be used.
Once you have set the cutter blade dial to position 3,
procure a new cutter blade for future replacement.
9
Install the cutter blade back into the carriage.
4- 29
Note
To remove the protective cap from a new cutter blade,
turn the cap in the direction of the arrow. Attach the
removed cap to the used cutter blade then discard the
cutter blade in accordance with the local laws and
regulations regarding the disposal of such items.
10
Close the top cover.
Please Wait.. appears in the bottom line of the
display and the carriage moves, then the Reset Cut
Count message is displayed.
11
If you have set the cutter position dial to 2 or
3, press the Stop/Eject button, or if you have
replaced the cutter blade with a new one,
press the OK button.
Reset Cut Count
Press OK/Stop
The printer returns to online mode.
