Canon imagePROGRAF W8400 User Manual page 7

Printer Part Names

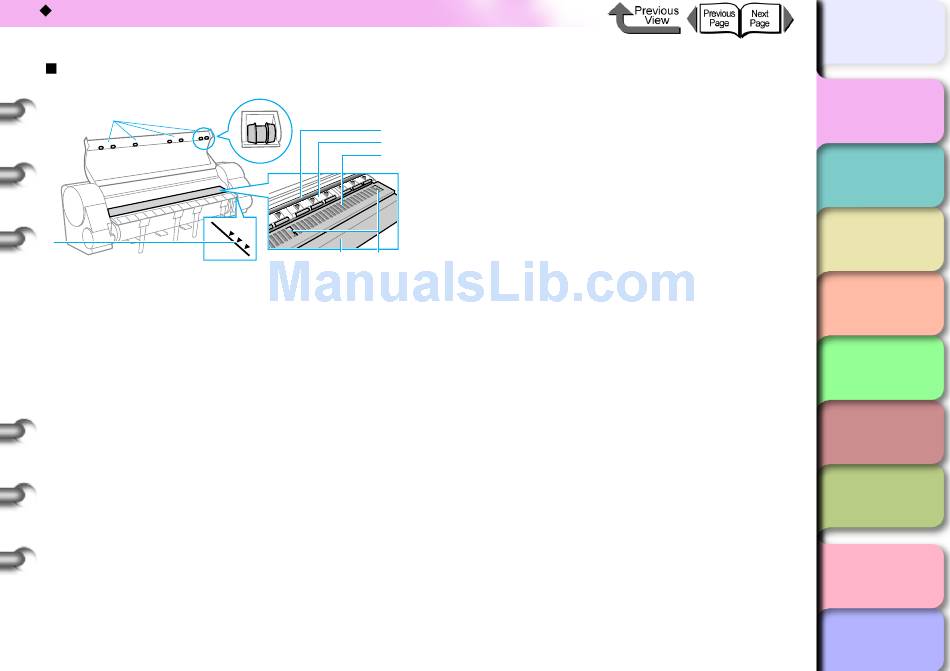

Inside the Top Cover
a
b
a Top Cover Roller
This roller prevent the paper from peeling during output.
b Paper Alignment Line
When you are loading roll media, load it so that the
media is parallel to the right side of this guideline.
(→ P.2-28)
c Carriage Shaft
The carriage moves on the carriage shaft.
d Paperweight
An important part of the paper feed path. The plate
keeps the paper straight in the paper path.
e Platen
The printhead moves across the platen when it prints. A
suction port is provided on the front surface to prevent
the media from floating out of position.
f Borderless Printing Ink Grooves
Receives ink that drains from the edges of the media
during borderless printing.
1- 4
g Standard Cutter Unit
This guide is used to feed paper. Remove this part if
mounting an optional cutter unit.
c
d
e
g
f
TOP
