14. Rotate stand (A) upward and into the storage position.
15. Insert pin (A) and secure stand (B) in the storage position.

3.7.3 Connecting Hydraulics

Hydraulic hoses and lines distribute hydraulic fluid to the various components on the rotary disc pull-type.
WARNING
Do NOT use remote hydraulic system pressures over 20,684 kPa (3000 psi). Check your tractor operator's manual for
remote system pressure.
NOTE:
Refer to the numbered/colored bands on the hoses to identify lift, swing/transport, and tilt hose sets.
262634
OPERATION

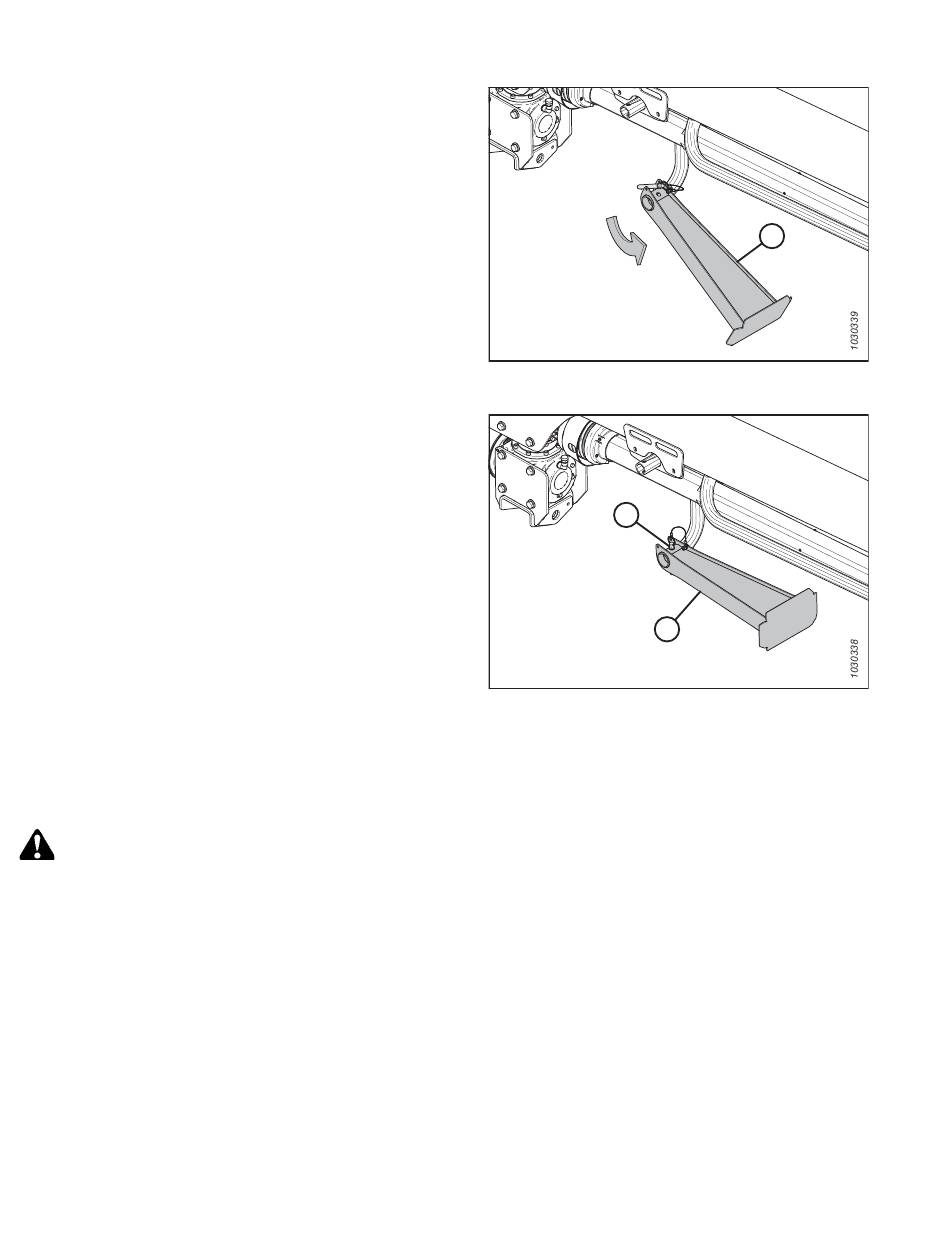

Figure 3.31: Repositioning Hitch Stand
Figure 3.32: Hitch Stand in Storage Position
54
A
A
B
