Converting from Transport to Field Mode – with Transport
In field mode, the rotary disc pull-type is rotated from the narrow road position to full width field position. Steering and lift
functions are operational.
DANGER
To prevent serious injury or death, do NOT convert the machine into, or from transport mode until all people, animals,
and objects are clear of the unit's rotational range.
CAUTION
To prevent injury or equipment damage, ensure the cutterbar doors are properly closed before converting the machine
from field to transport mode.
1. Clear bystanders from the area and start the tractor. Do NOT operate the rotary disc pull-type.

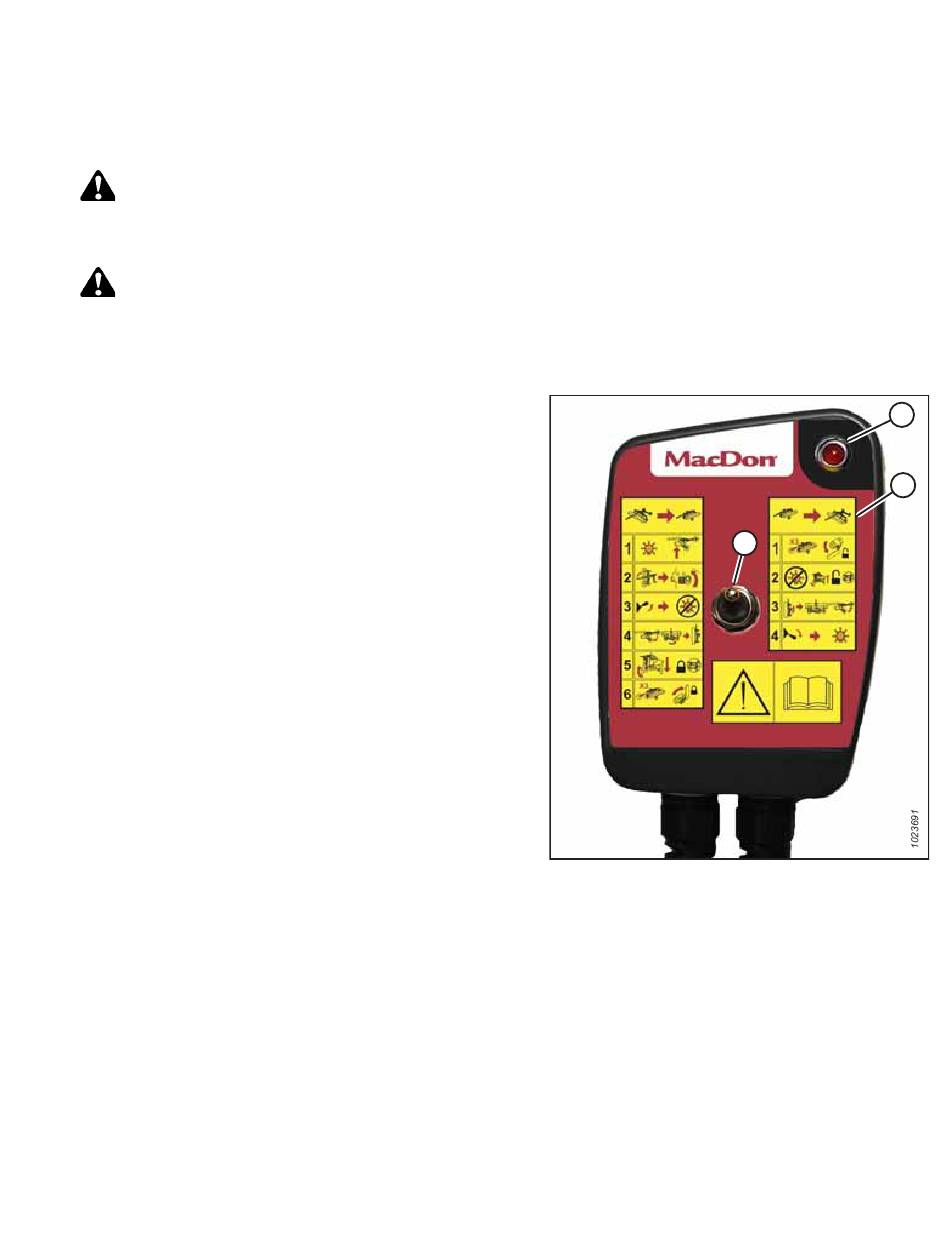

2. Following the steps on transport-to-field decal (A), move
the transport switch to upper position (C) and ensure that
light (B) is NOT illuminated.
262634
OPERATION
Figure 3.88: Control Box
85
B
A
C
Revision A
