13. Apply a bead of medium-strength threadlocker
®
(Loctite
243 or equivalent) around the threads of M10 hex
flange head bolt (B). Install bolt (B) through cover plate (A)
and top plate (C). Torque the hardware to 61 Nm (45 lbf·ft).
14. Apply a bead of medium-strength threadlocker
®
(Loctite
243 or equivalent) around the threads of M10 hex
flange head bolt (D). Install bolt (D) through cover plate (A)
and vertical shield (E). Torque the hardware to 61 Nm
(45 lbf·ft).
15. Tighten bolts (B) and (D).
16. Position vertical driveshield (B) as shown at right. Apply a
bead of medium-strength threadlocker (Loctite
equivalent) around the threads of four M10 hex flange
head bolts (A). Use bolts (A) to secure the vertical
driveshield. Torque the hardware to 61 Nm (45 lbf·ft).
WARNING
Ensure that the cutterbar is completely clear of foreign objects.
Foreign objects can be ejected with considerable force when
the machine is started, which can result in serious injury or
cause damage to the machine.
17. Close the cutterbar doors. For instructions, refer to
Closing Cutterbar Doors, page
Removing Small Non-Driven Drum – Ten Disc Cutterbar
The small non-driven drum is the second from the end on the right side of the cutterbar.
DANGER
To prevent injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and remove
the key from the ignition before leaving the operator's seat or making adjustments to the machine. If the rotary disc
pull-type is raised, always close the lock-out valves, and place blocks under the rotary disc pull-type. Never work on or
beneath an unsupported rotary disc pull-type.
262634
MAINTENANCE AND SERVICING
®
243 or
3.3.3
43.
215
E

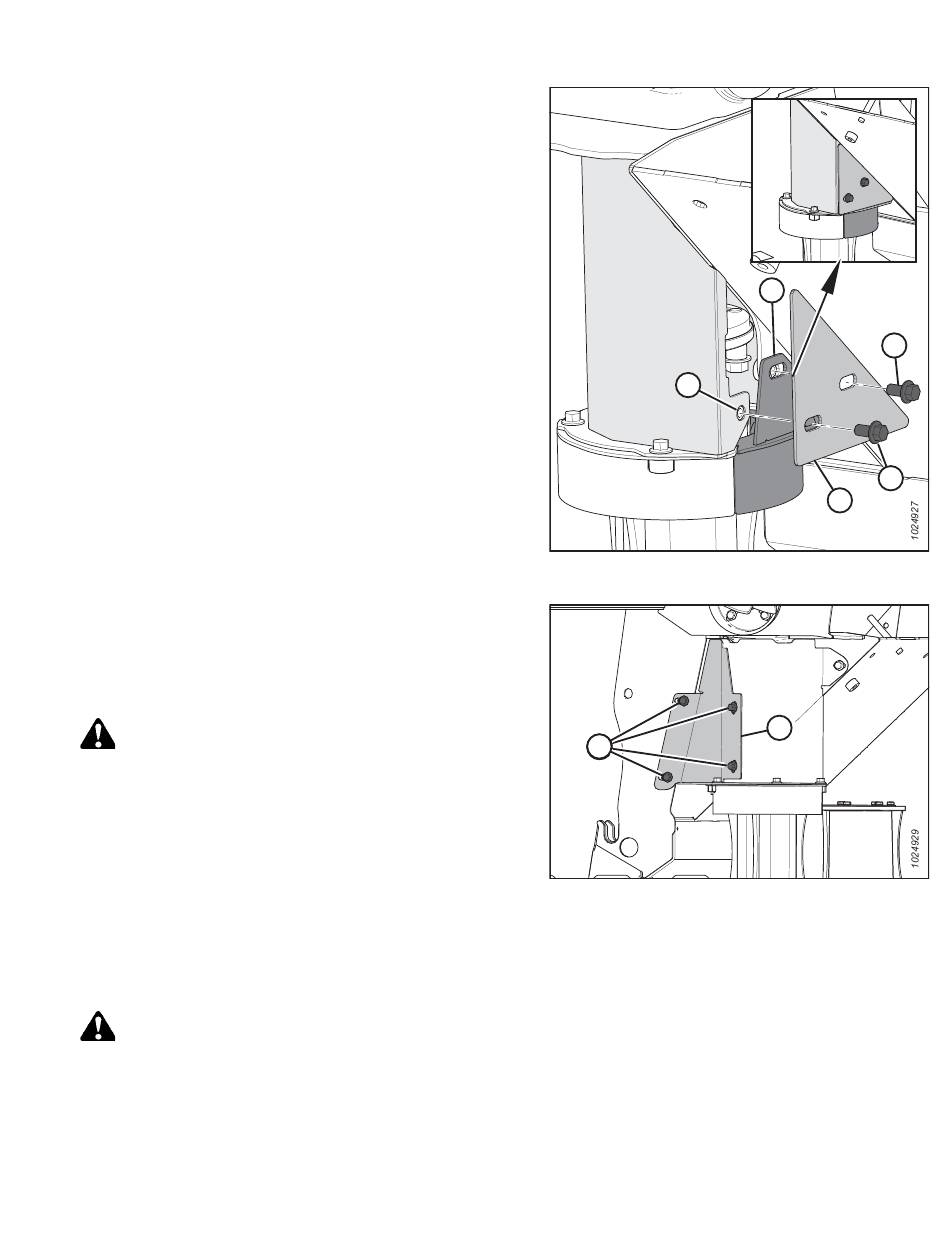

Figure 4.126: Driveline Shield
A A A
A
Figure 4.127: Driveline Shield
C
B
D
A
B
Revision A
