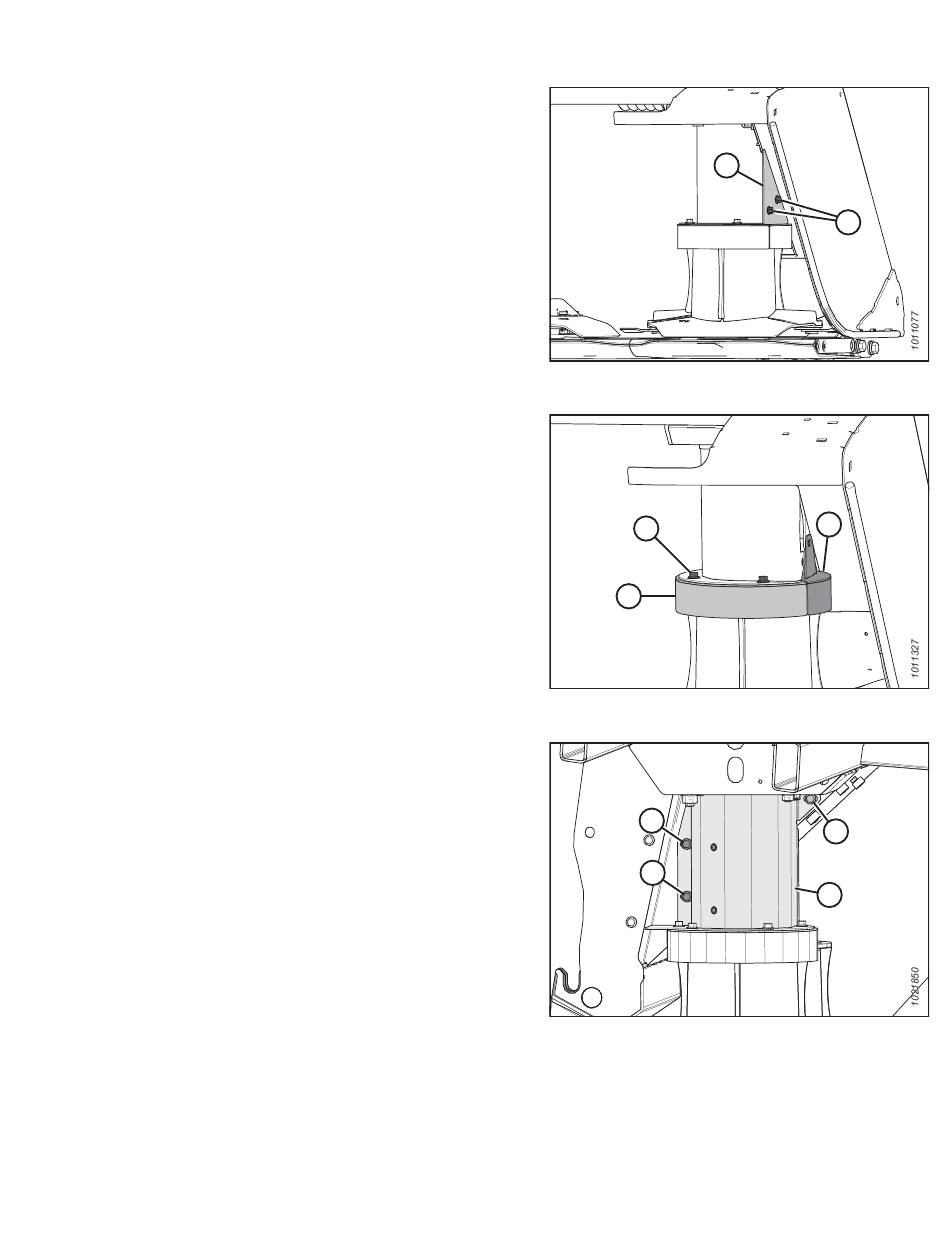

6. Remove two M10 hex flange head bolts (A) and remove
cover plate (B).
7. Remove four M10 hex flange head bolts (A), and remove
top plate (B) and drum top (C).
8. Remove one M10 x 20 hex flange head bolt (A), two
M10 x 16 hex flange head bolts (B), and vertical shield (C).
262634
MAINTENANCE AND SERVICING
Figure 4.135: Cover Plate
Figure 4.136: Top Plate and Drum Top
Figure 4.137: Vertical Shield
221
B
A
B
B
B
A
C
A
C
Revision A
