3. Position driveline yoke (B) as shown on both ends of the
cross driveline.
4. Install the taper pin so the groove on the pin is aligned with
the groove on the shaft.
5. Install nut (A) onto the taper pin and torque it to 150 Nm
(110 lbf·ft). The pin must be recessed 9 11 mm
(3/8 7/16 in.) inside the yoke.
IMPORTANT:
Check the taper pin torque every 25 hours until it stops
moving, then check the torque before every season.
6. Slide driveline shields (B) over the yokes at both ends of the
driveline, and secure them with clamps (A).
7. Close the cutterbar doors. For instructions, refer to
Closing Cutterbar Doors, page

4.5.8 Inspecting Driveline Taper Pins

The taper pins are located at three places (A) along the HITCH DRIVESHAFT. Torque each pin to 150 Nm (110 lbf·ft) every
25 hours until it no longer moves, and then check the torque at the beginning of every season.
262634
MAINTENANCE AND SERVICING
3.3.3
43.
265
B

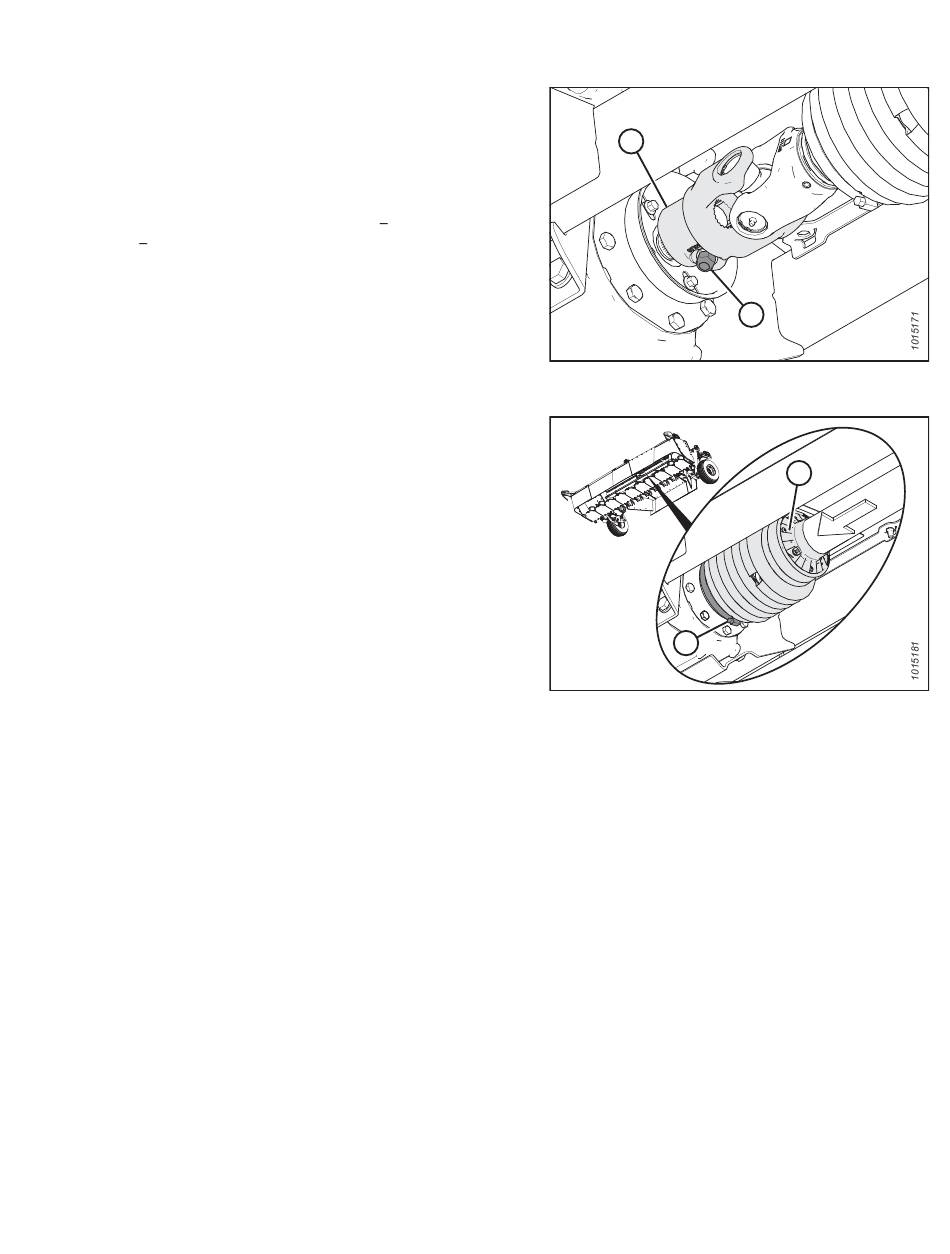

Figure 4.231: Cross Driveline Yoke
A
Figure 4.232: Cross Driveline Shield
A
B
