4. Remove three bolts (A), and remove deflector (B).
5. Reinstall three bolts (A).
6. Repeat for opposite side.
A
B
7. Close cutterbar doors. For instructions, refer to 3.3.3
Closing Cutterbar Doors, page 43.

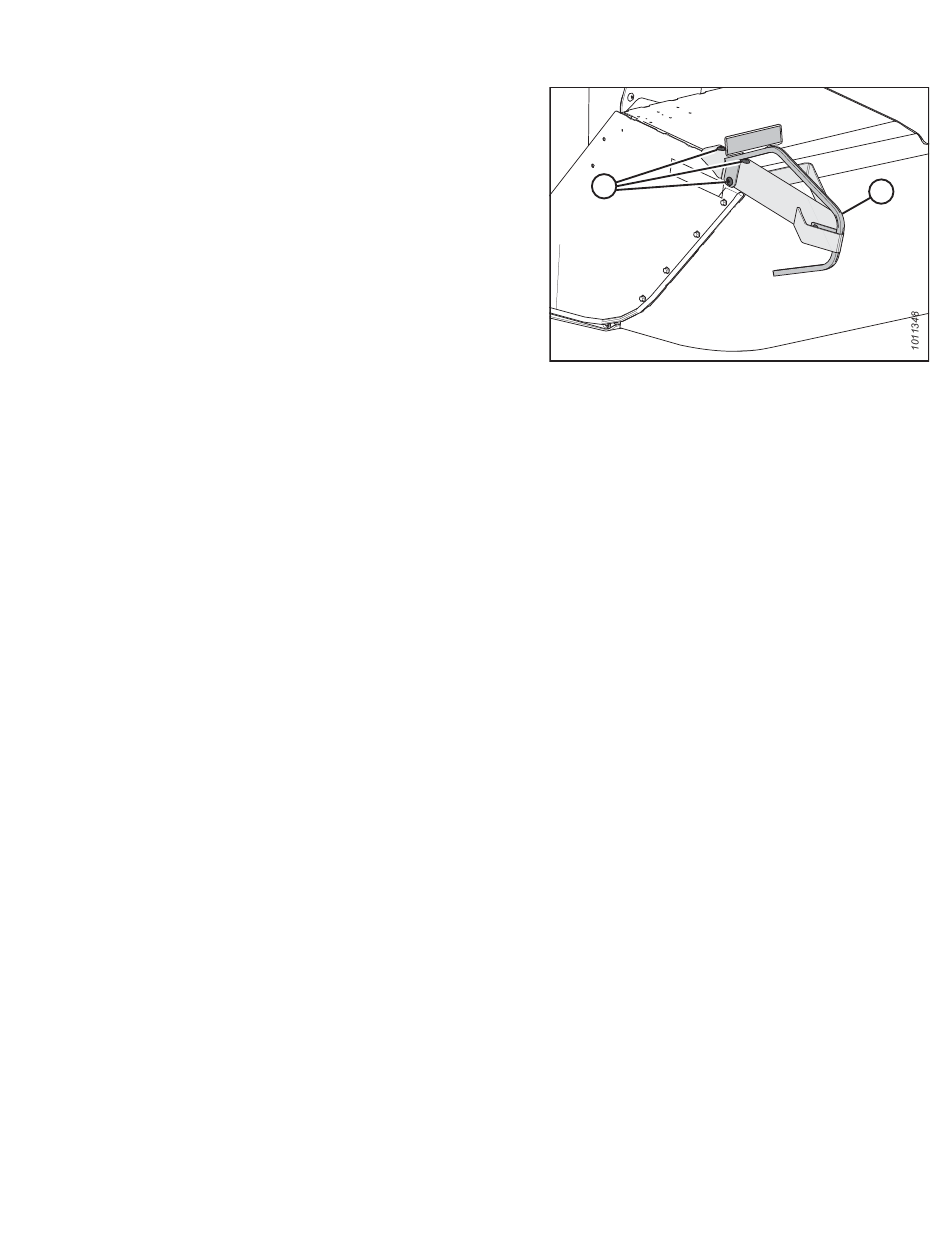

Figure 3.117: Deflector and Hardware
