3.2 Driveshields

Driveshields offer protection from the rotating belts and drives. The header has two driveshields: one on the left side, and
one on the right side.

3.2.1 Opening Driveshields

The driveshields offer protection from moving components. Open them only when you intend to service the header.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
WARNING
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.
NOTE:
The illustrations in this procedure show the left driveshield; the
right driveshield is similar.
1. Shut down the engine, and remove the key from the ignition.
2. Remove lynch pin (A) and tool (B) from pin (C).
262634
OPERATION

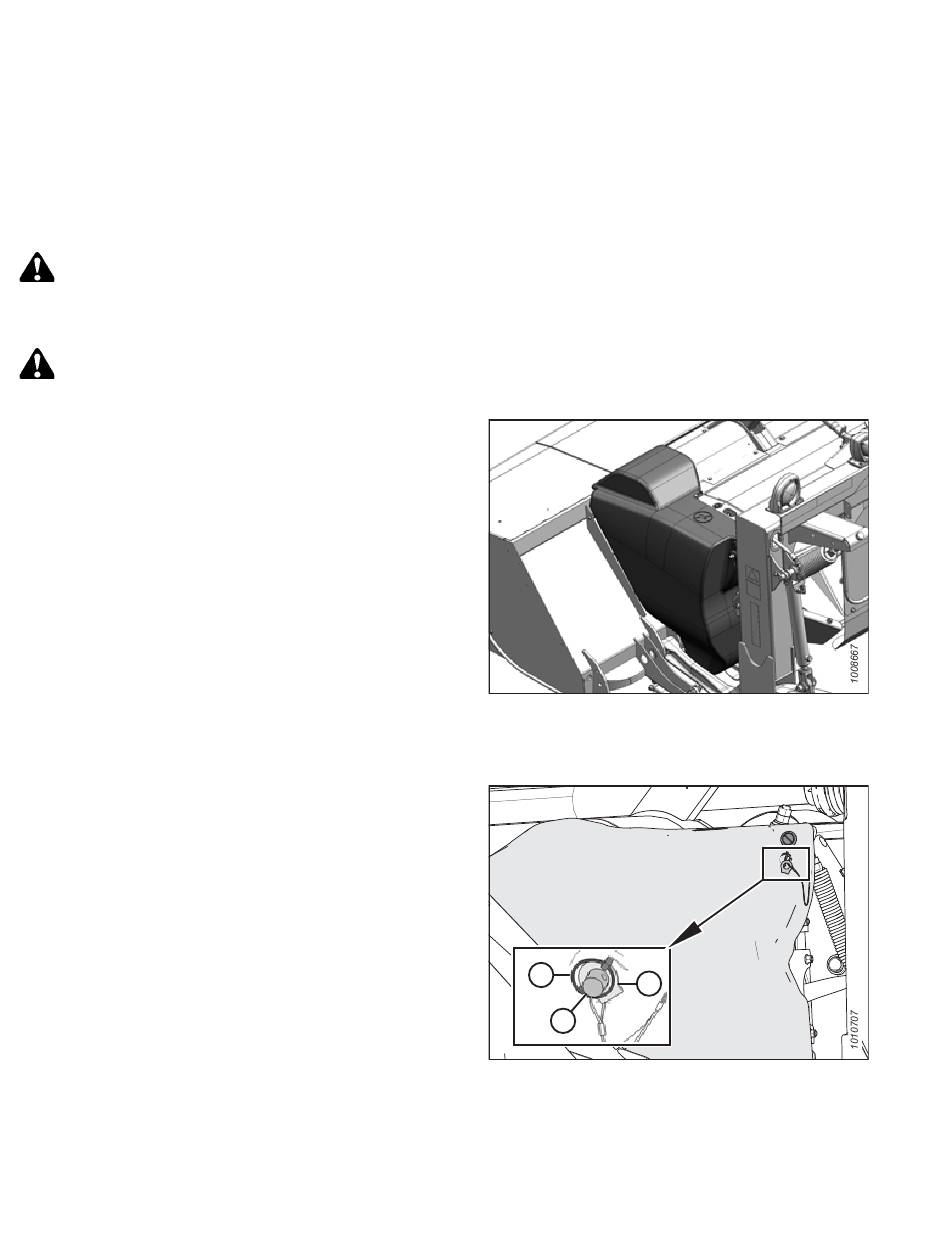

Figure 3.5: Left Driveshield
A
C
Figure 3.6: Left Driveshield
38
B
Revision A
