7. Disconnect the hydraulic hoses and electrical harness from
the tractor and store the hose ends and electrical
connector in hose support (A) at front of hitch as shown.
8. Pull pin (B) securing jack (A) at storage location and remove
the jack.
9. Move jack (A) to working position and secure it with pin (B).
10. Lower the jack to remove the weight from the tractor
drawbar.
262634
OPERATION
A

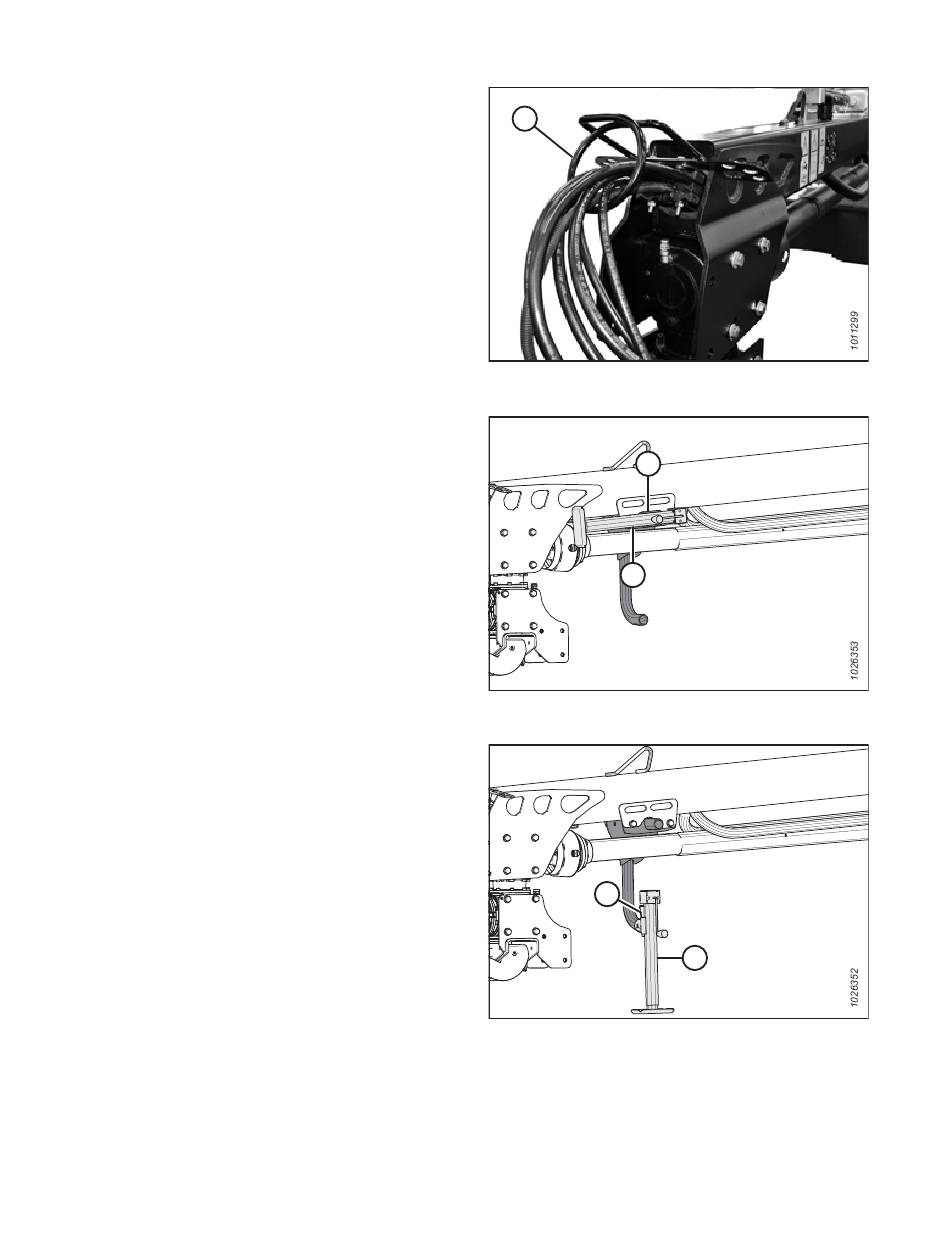

Figure 3.41: Hose Support
Figure 3.42: Jack Storage
Figure 3.43: Jack Storage
