5. Remove two M10 carriage head bolts (A) and nuts securing
curtain assembly (B) to the rotary disc pull-type, and
remove the curtain assembly.
6. Remove four nuts (A) from the studs on the center shield.
7. Remove two curtain brackets (B). Remove the curtain.

Installing Cutterbar Inboard Curtain

Do NOT overtighten the nuts when installing the inboard curtain.
DANGER
To prevent injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and remove
the key from the ignition before leaving the operator's seat or making adjustments to the machine. If the rotary disc
pull-type is raised, always close the lock-out valves, and place blocks under the rotary disc pull-type. Never work on or
beneath an unsupported rotary disc pull-type.
DANGER
Ensure that all bystanders have cleared the area.
WARNING
Disc blades have two sharp cutting edges that can cause serious injury. Exercise caution and wear gloves when working
with, or near, blades.
1. Position the rotary disc pull-type at an appropriate height for the task.
2. Shut down the engine, and remove the key from the ignition.
262634
MAINTENANCE AND SERVICING

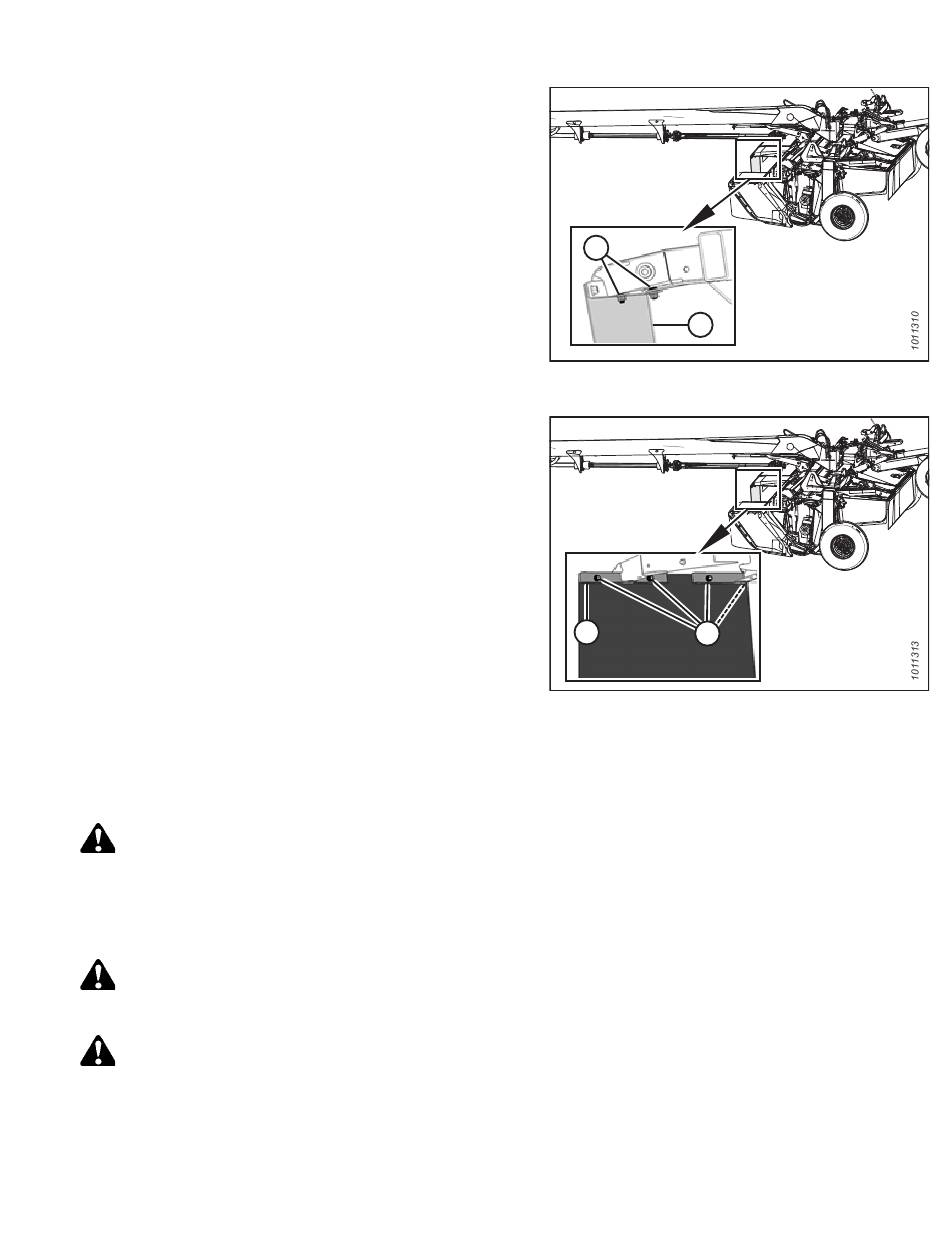

Figure 4.24: Inboard Curtain
Figure 4.25: Inboard Curtain
155
A
B
B
A
Revision A
