MacDon R1 Series Operator's Manual page 229

10. Remove four M12 hex flange head bolts and spacers (A)
securing driveline assembly (B) to hub drive (C).
11. Slide driveline (A) downwards, tilt it to the side, and pull
the driveline up and out of drum.
NOTE:
For clarity, the illustration shows a cutaway view of the
drum and the tube shield.
12. Remove four M12 bolts and washers (A) holding the drum
disc in place.
13. Remove drum disc assembly (B).
262634
MAINTENANCE AND SERVICING

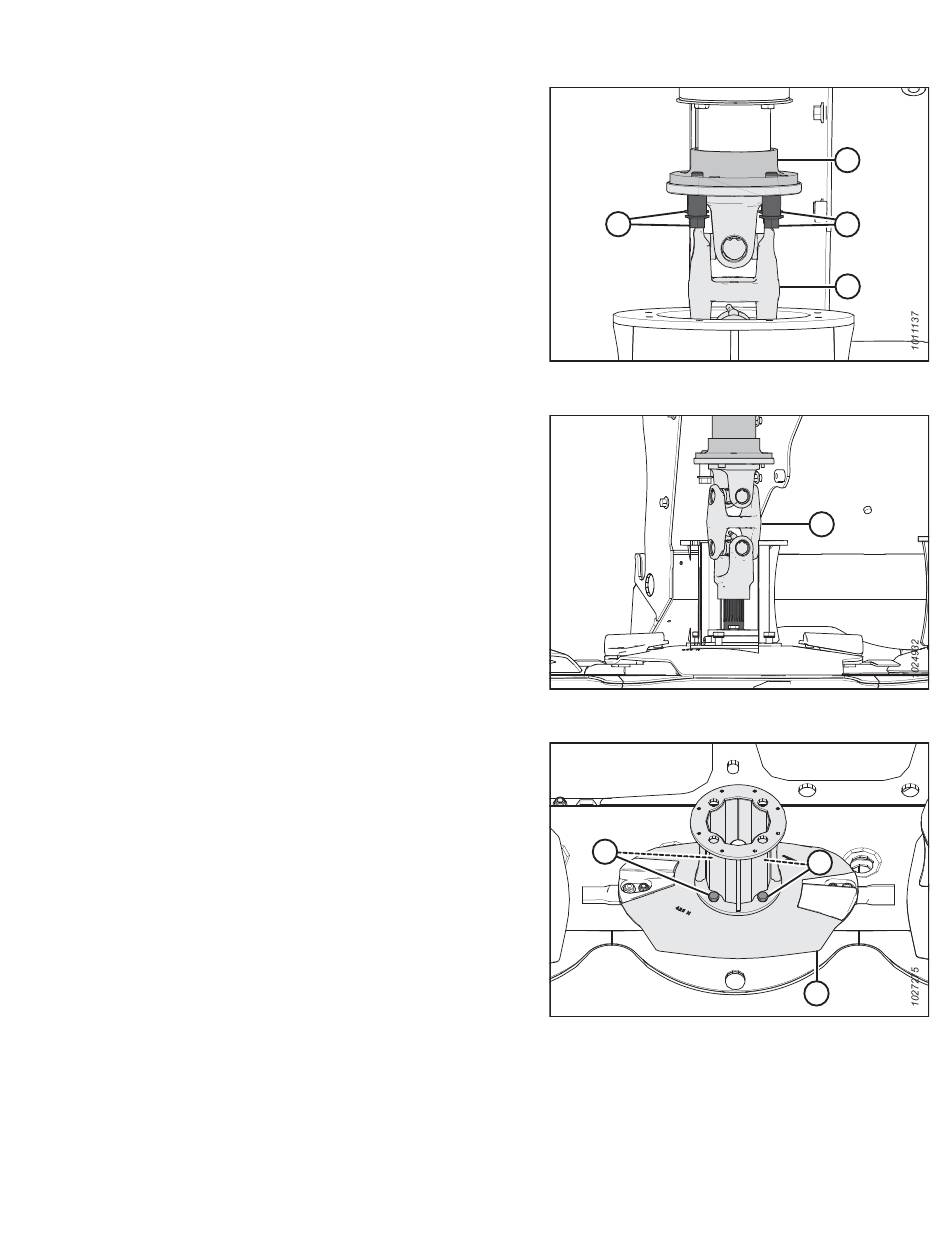

Figure 4.117: Hub Drive to Driveline Connection
Figure 4.118: Hub Drive to Driveline Connection
Figure 4.119: Driven Drum
211
A
A
C
A
B
A
A
B
Revision A
