4. If equipped with a two-point hitch: Insert pin (A) and
secure stand (B) in the storage position.
5. Ensure that the hydraulic hoses are securely stored on the hitch.
NOTE:
The primary driveline and hydraulic hoses do NOT need to be attached to the tractor for towing.
6. Ensure the hitch swing lock-out and the two lift-cylinder lock-out valves are closed (handle 90° to the hose).
NOTE:
Keep the slow moving vehicle (SMV) sign, reflectors, and lights clean and visible at the rear of the rotary disc pull-type.
7. Ensure that the tires are properly inflated.
IMPORTANT:
Do NOT exceed 32 km/h (20 mph).

3.14.4 Transport Lighting

Light assemblies provide position, hazard, turning direction, and braking information.
Lighting – with Transport Option
When the optional transport system is installed, the lights mount to the left side of the machine.
The rotary disc pull-type is equipped with two bidirectional
amber lights (A) that function as flashing hazard lights and turn
signals.
Red lights (B) located on the inboard side of the amber lights
function as both tail and brake lights. For information about
connecting the rotary disc pull-type s electrical harness to the
tractor, refer to 3.7.4 Connecting Electrical Wiring Harness, page
56.
Amber reflective tape is applied to various locations on the
front and sides of the rotary disc pull-type, hitch, and carrier
frame. Red reflective tape is applied to the rear of the
rotary disc pull-type.
262634
OPERATION

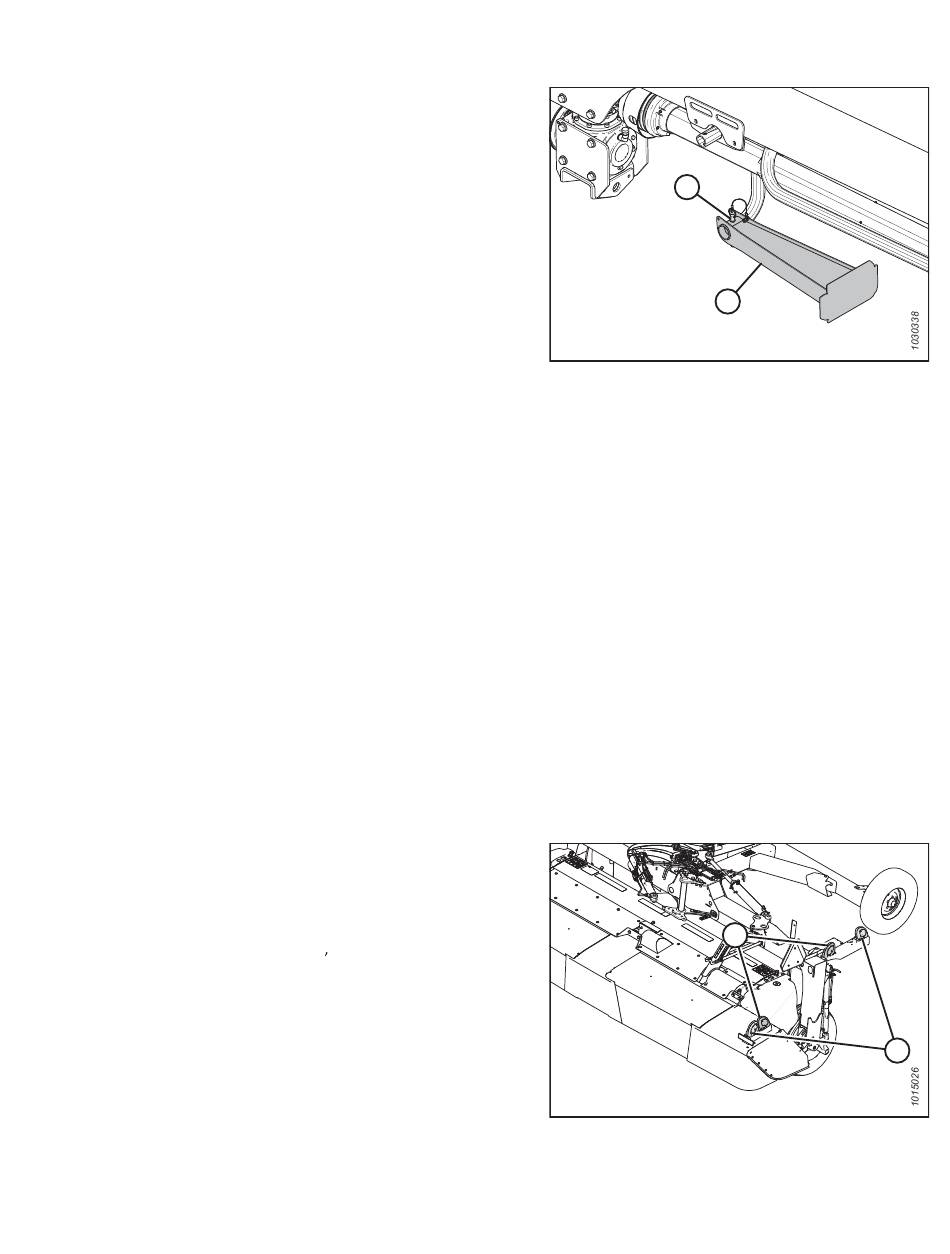

Figure 3.97: Two-Point Hitch Jack in Storage Position
Figure 3.98: Lighting Locations – with Transport
89
A
B
B
A
