7. Support driveline and remove five nuts (A), flange (B) with
grease fitting, ball bearing (C), and second flange (D).
8. Unlock bearing lock collar (A) by rotating it in the direction
opposite to the rotation of the shaft.
9. Slide the bearing lock collar off the driveline shaft.
10. Lower the driveline from the center support.
NOTE:
If you are removing the bolts, note the position of long
bolts (B) and short bolts (C).
11. Slide the forward end of hitch driveline (A) away from the
swivel gearbox shaft.
12. Remove the driveline guard if necessary. For instructions,
refer to
Removing Driveline Guards, page
262634
MAINTENANCE AND SERVICING

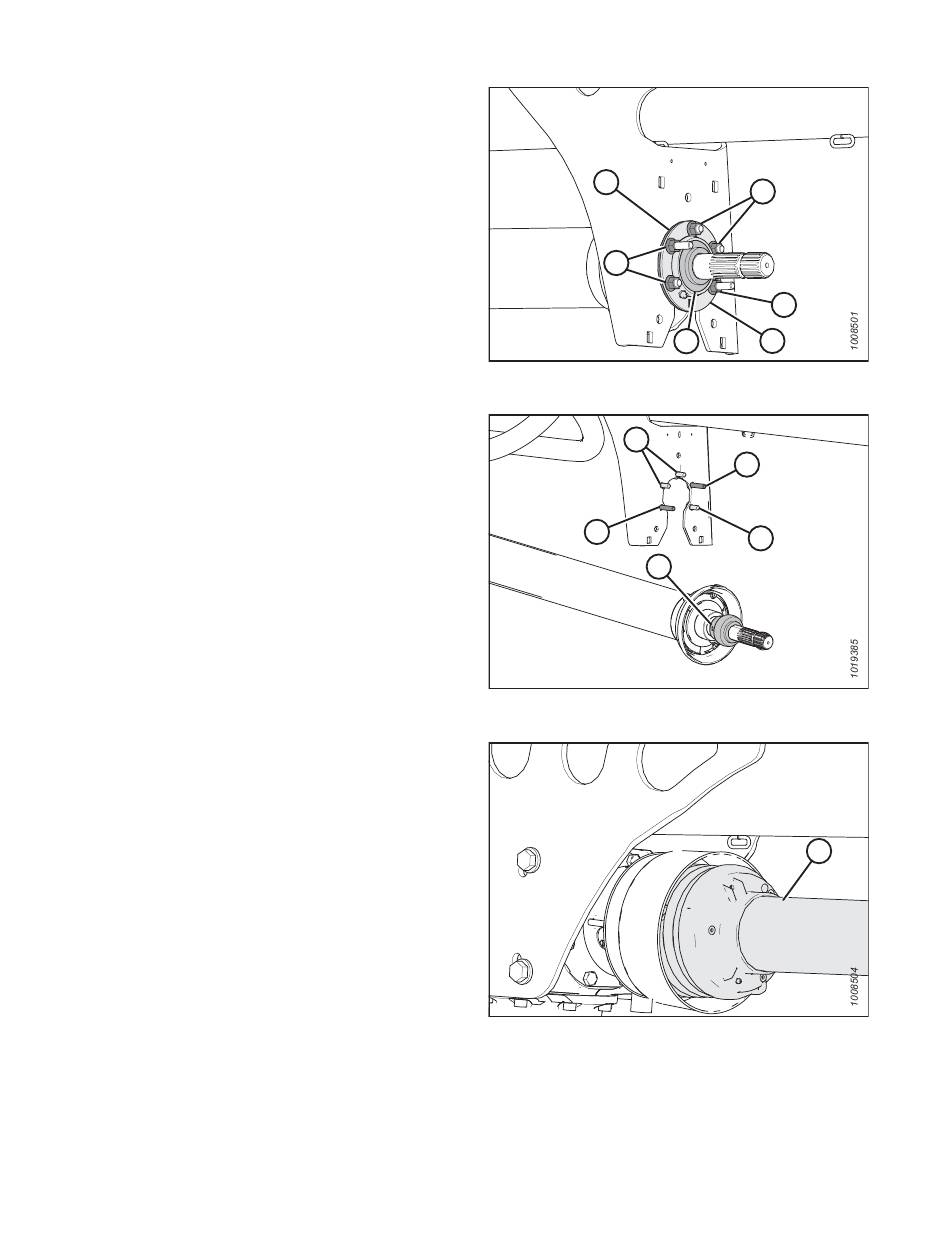

Figure 4.197: Ball Bearing and Flanges
Figure 4.198: Bearing Lock Collar
268.
Figure 4.199: Forward End of Hitch
250
D
A
A
B
C
C
B
B
C
A
A
A
Revision A
