4. Open right driveshield (A). For instructions, refer to
Opening Driveshields, page
Checking the conditioner roll timing gearbox lubricant level:
5. Clean any dirt from around lubricant level sight glass (A)
and breather (B) on the inboard side of the gearbox.
6. Ensure that the lubricant is level at the top of the sight
glass. If necessary, add lubricant through breather (B). Refer
to this manual s inside back cover for a list of
recommended fluids, lubricants, and capacities.
262634
MAINTENANCE AND SERVICING
3.2.1
38.

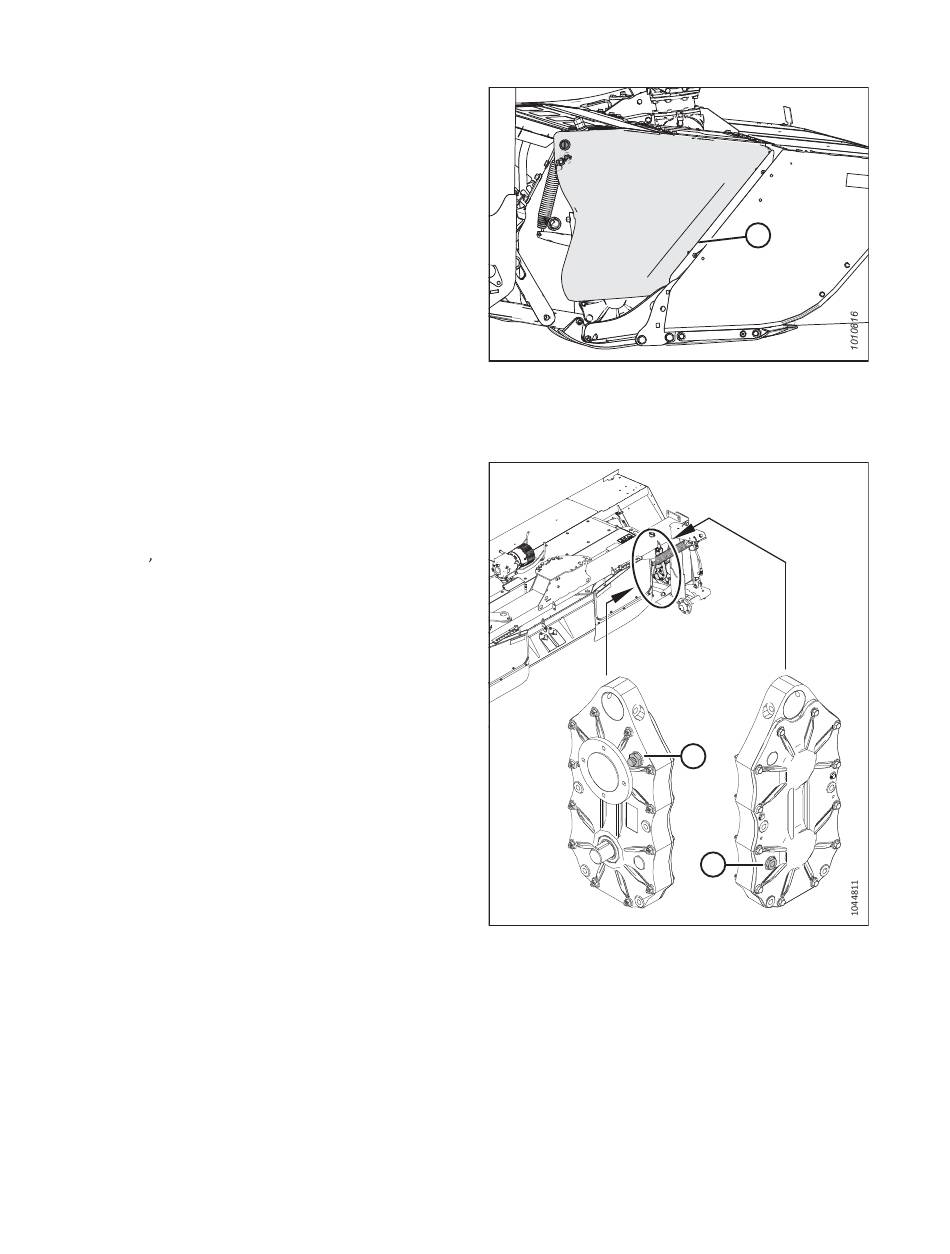

Figure 4.251: Right Driveshield
Figure 4.252: Roll Timing Gearbox
276
A
B
A
