3. Lift up doors (A) at the front of the machine.
3.3.2 Opening Cutterbar Doors – Export
Machines sold outside North America have a tool-operated latch on the cutterbar doors.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator's seat.
DANGER
Ensure that all bystanders have cleared the area.
1. If both doors need to be opened, center the rotary disc pull-type beneath the hitch.
2. Shut down the engine, and remove the key from the ignition.
3. Locate latch access holes (A) for each door.
262634
OPERATION
A

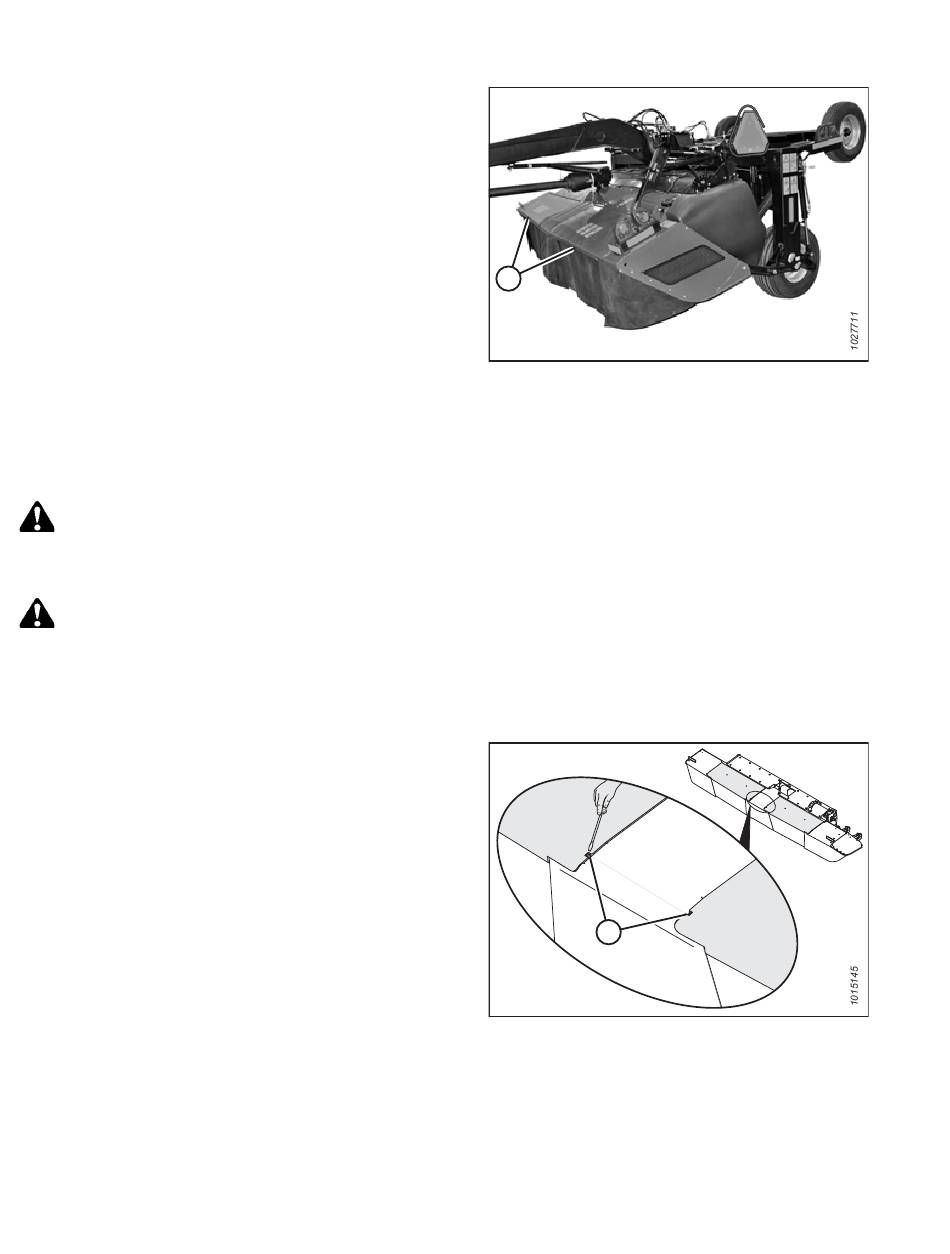

Figure 3.12: Cutterbar Doors and Curtains
Figure 3.13: Cutterbar Door Latch Access Hole –
Export Only
