3. Close lock-out valve (A) on each auxiliary lift cylinder by
turning the handle to the closed position (90° angle to
the hose).

3.1.2 Disengaging Locks

Engage the hydraulic lock-out valves when you are transporting or servicing the machine.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
DANGER
Ensure that all bystanders have cleared the area.
1. Shut down the engine, and remove the key from the ignition.
2. Open lock-out valve (A) on each lift cylinder by turning the
handle to the open position (in line with the hose).
262634
OPERATION

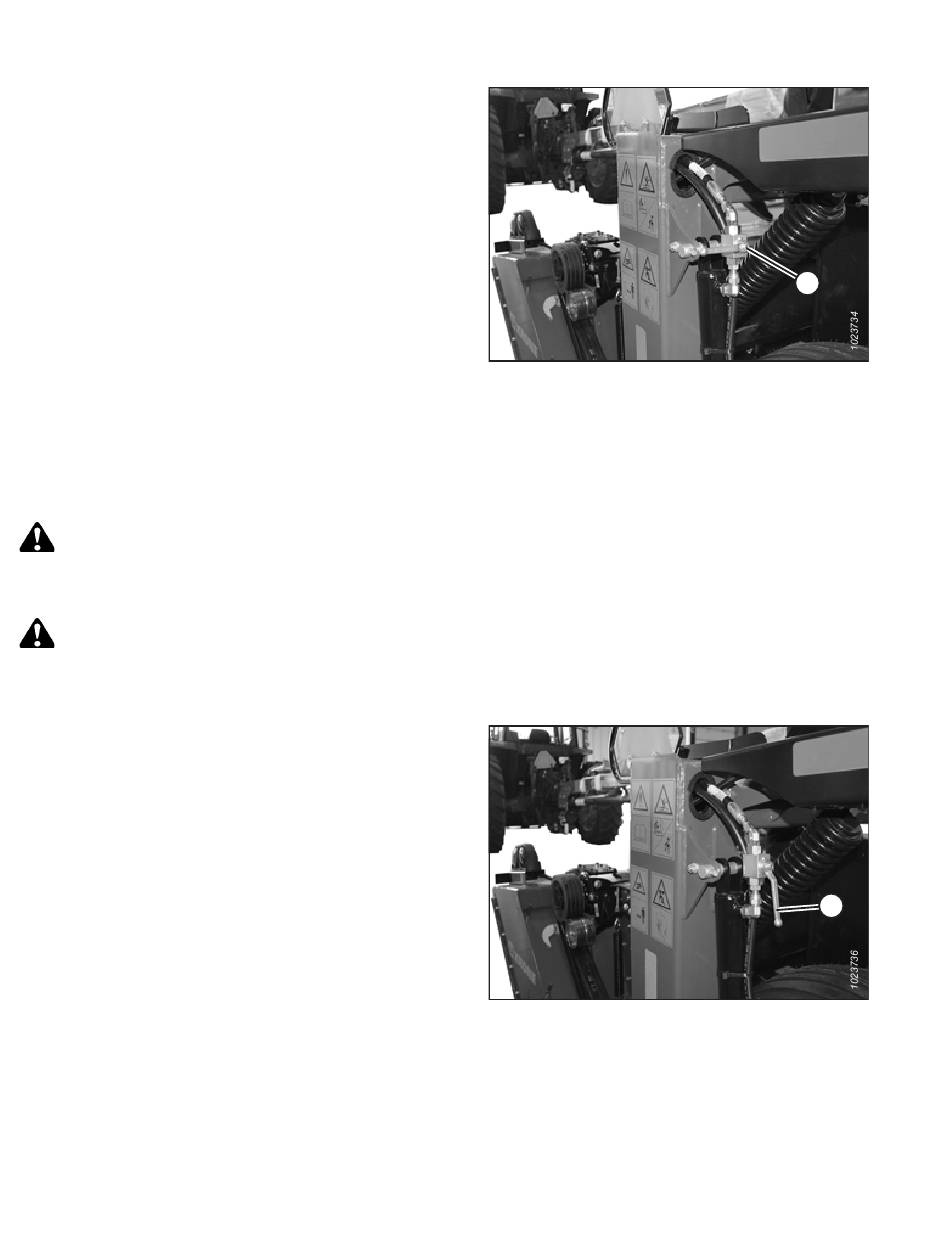

Figure 3.2: Lift Cylinder Lock-Out Valve in Closed
Position
Figure 3.3: Lift Cylinder Lock-Out Valve in Open
Position
36
A
A
Revision A
