11. Raise jack (A), and remove pin (B).
12. Move jack (A) to the storage position on top of the hitch,
and secure it with pin (B).
13. Proceed to 3.7.3 Connecting Hydraulics, page

3.7.2 Attaching with Two-Point Hitch

If the rotary disc pull-type was configured for a tractor with a two-point hitch, then the rotary disc pull-type can now be
attached to the tractor.
DANGER
To prevent injury or death from the unexpected startup of the machine, stop the engine and remove the key from the
ignition before you make adjustments to the machine.
DANGER
Ensure that all bystanders have cleared the area.
262634
OPERATION

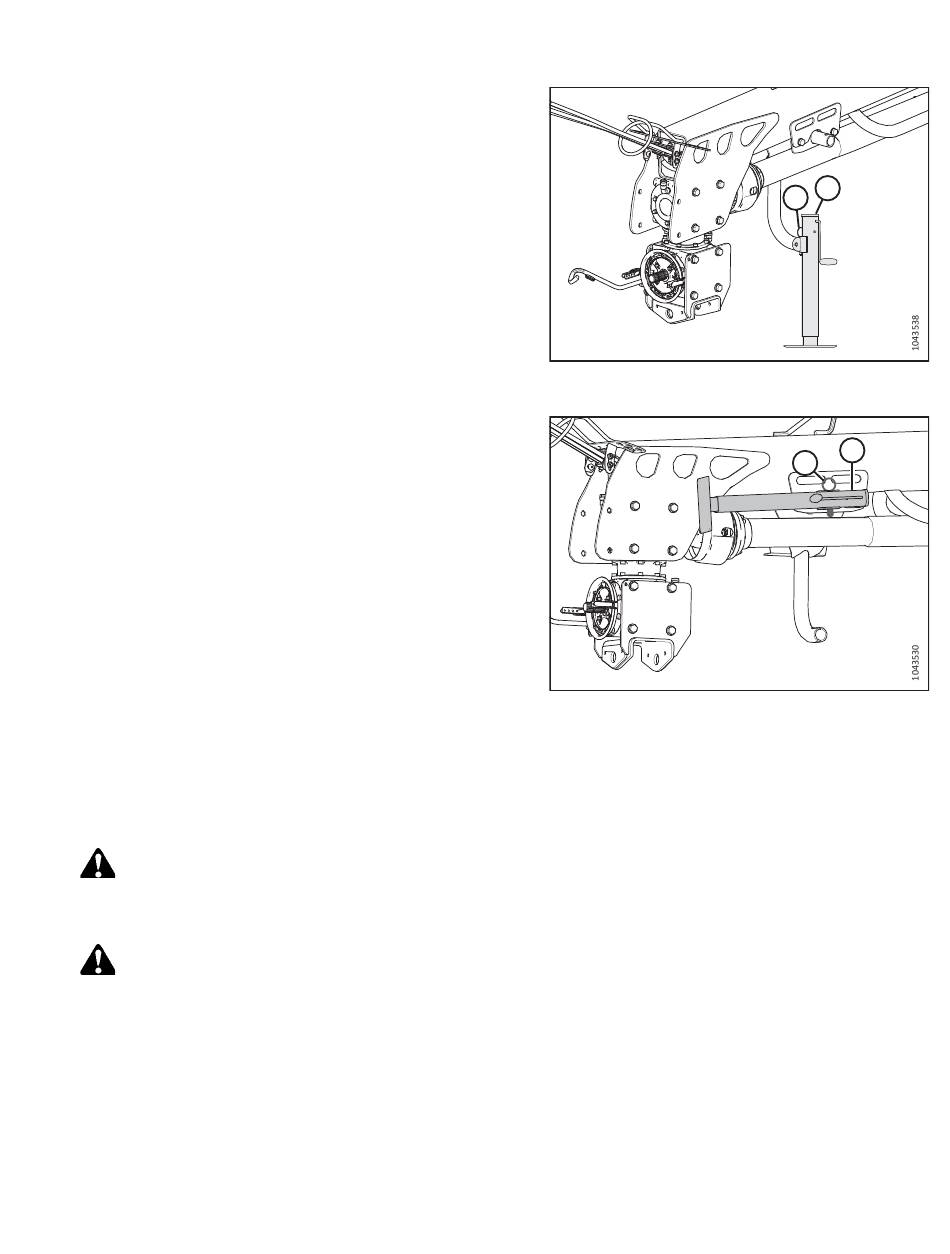

Figure 3.24: Hitch Jack
54.
Figure 3.25: Drawbar Jack Storage
51
A
B
A
B
Revision A
