2. Remove and retain hex nut and flat washer (A) securing the
latch to the backside of the driveshield.
3. Remove the latch and replace it with the new part.
4. Reinstall retained hex nut and flat washer (A).
5. Remove two carriage bolts (A), replace stud and clip
assembly (B) if it is worn or damaged, and reinstall the
carriage bolts.
6. Reinstall the driveshield. For instructions, refer to

4.5.2 Driveline Shield Cone

The shield cone protects the U-joint from dirt, dust, and debris.

Removing Driveline Shield Cone

Removing the driveline shield cone.
WARNING
Do NOT operate the machine without the driveline shield cones in place and the lever clamps securely fastened.
262634
MAINTENANCE AND SERVICING

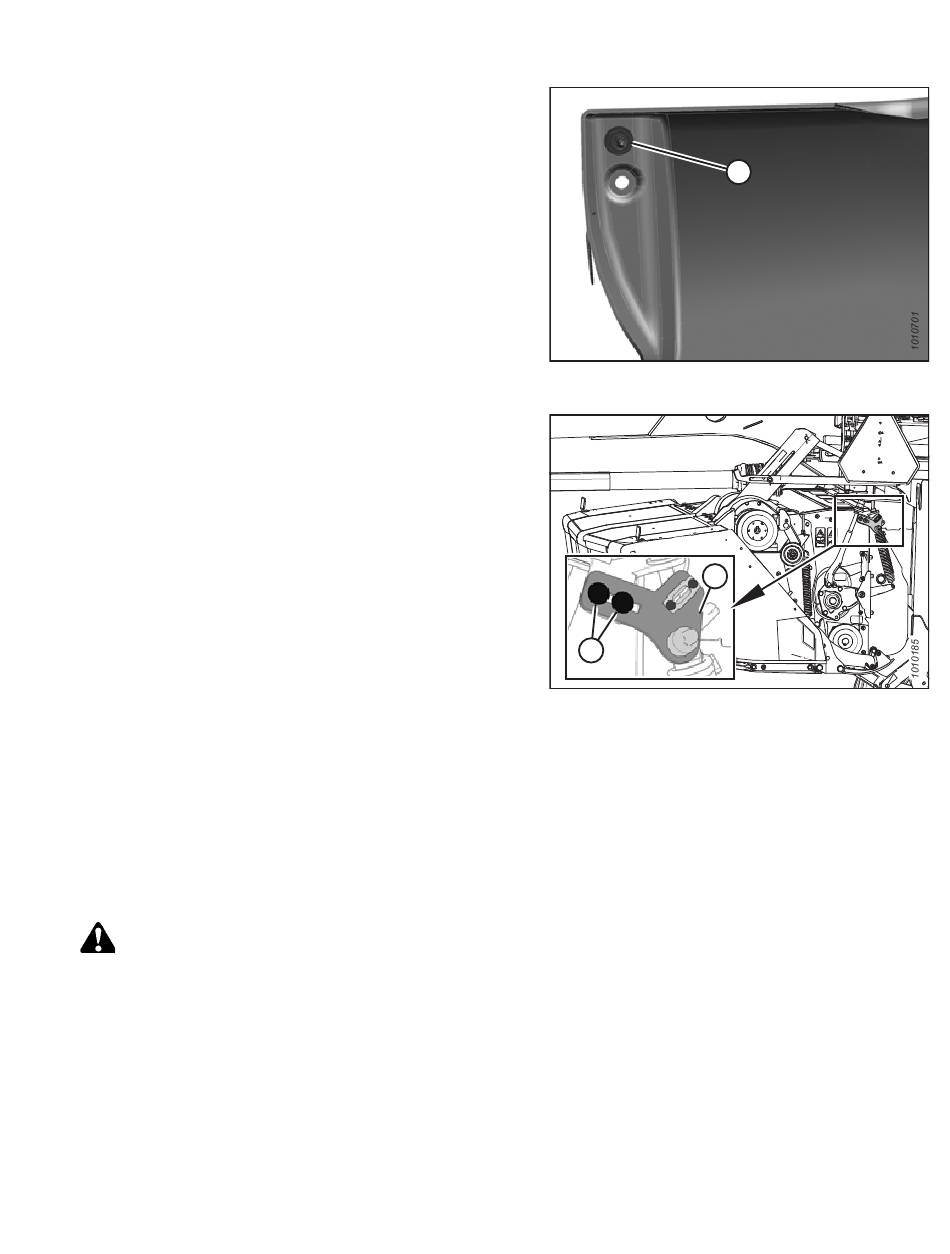

Figure 4.177: Backside of Driveshield
Figure 4.178: Stud and Clip Assembly
Installing Driveshields, page
241
A
B
A
239.
