MacDon R1 Series Operator's Manual page 240

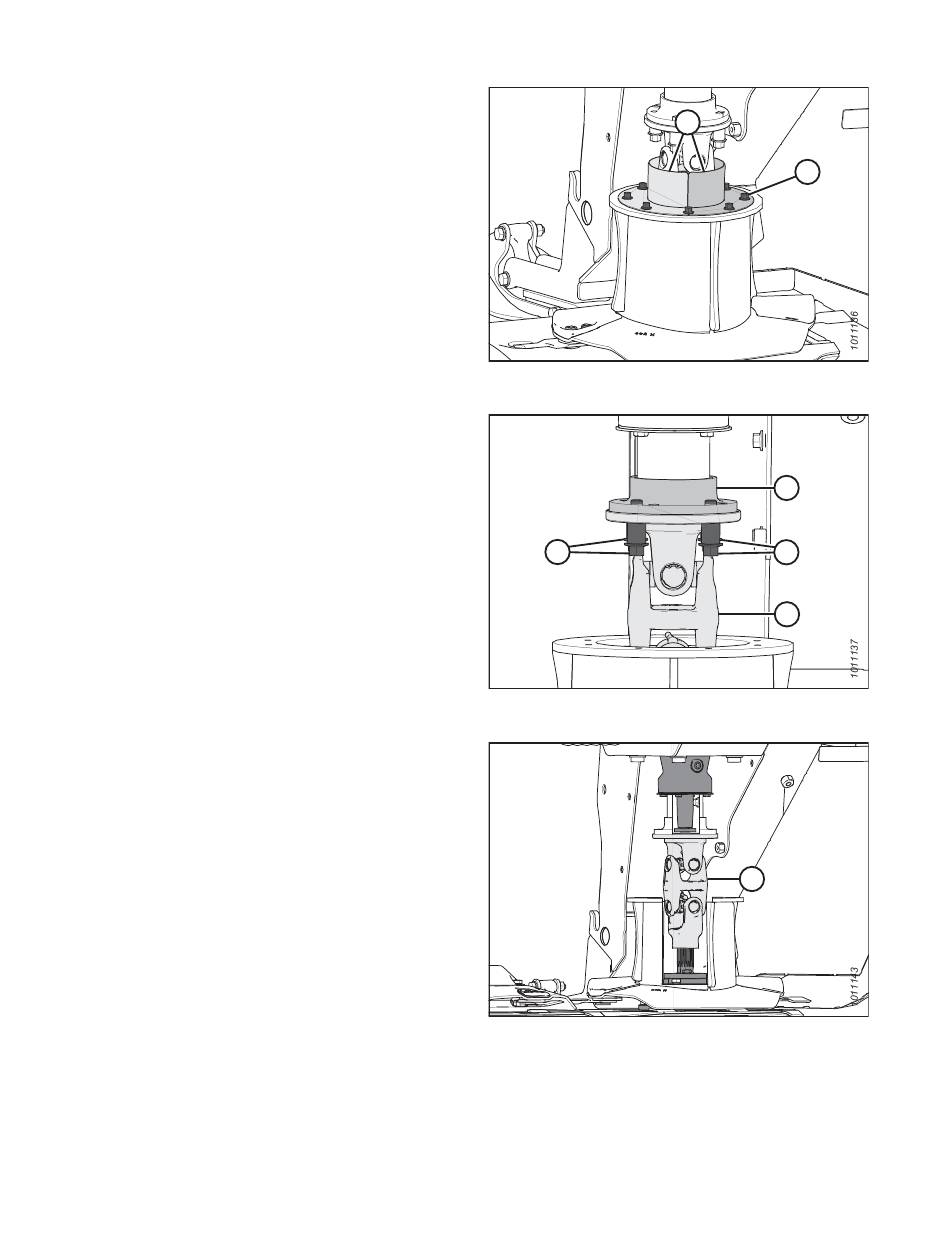

9. Remove eight M8 hex flange head bolts (A), and remove
two drum shields (B).
10. Remove four M12 hex flange head bolts and spacers (A)
securing driveline assembly (B) to hub drive (C).
11. Slide driveline (A) downwards, and tilt it to the side. Pull
the driveline up and out of the drum.
NOTE:
The illustration shows a cutaway view of the drum and tube
shield.
262634
MAINTENANCE AND SERVICING
Figure 4.138: Drum Shields
Figure 4.139: Hub Drive to Driveline Connection
Figure 4.140: Hub Drive to Driveline Connection
222
B
A
A
C
A
B
A
Revision A
