2. Insert the flat end of tool (A) into latch (B) and turn it
counterclockwise to unlock the latch.
3. Pull the top of driveshield (A) away from rotary the pull-
type and lift the driveshield off of the pins at the base of
the shield.

Installing Driveshields

No additional tools are needed to install the driveshields.
WARNING
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.
NOTE:
The illustrations shown in this procedure depict the left driveshield; the right driveshield is similar.
262634
MAINTENANCE AND SERVICING

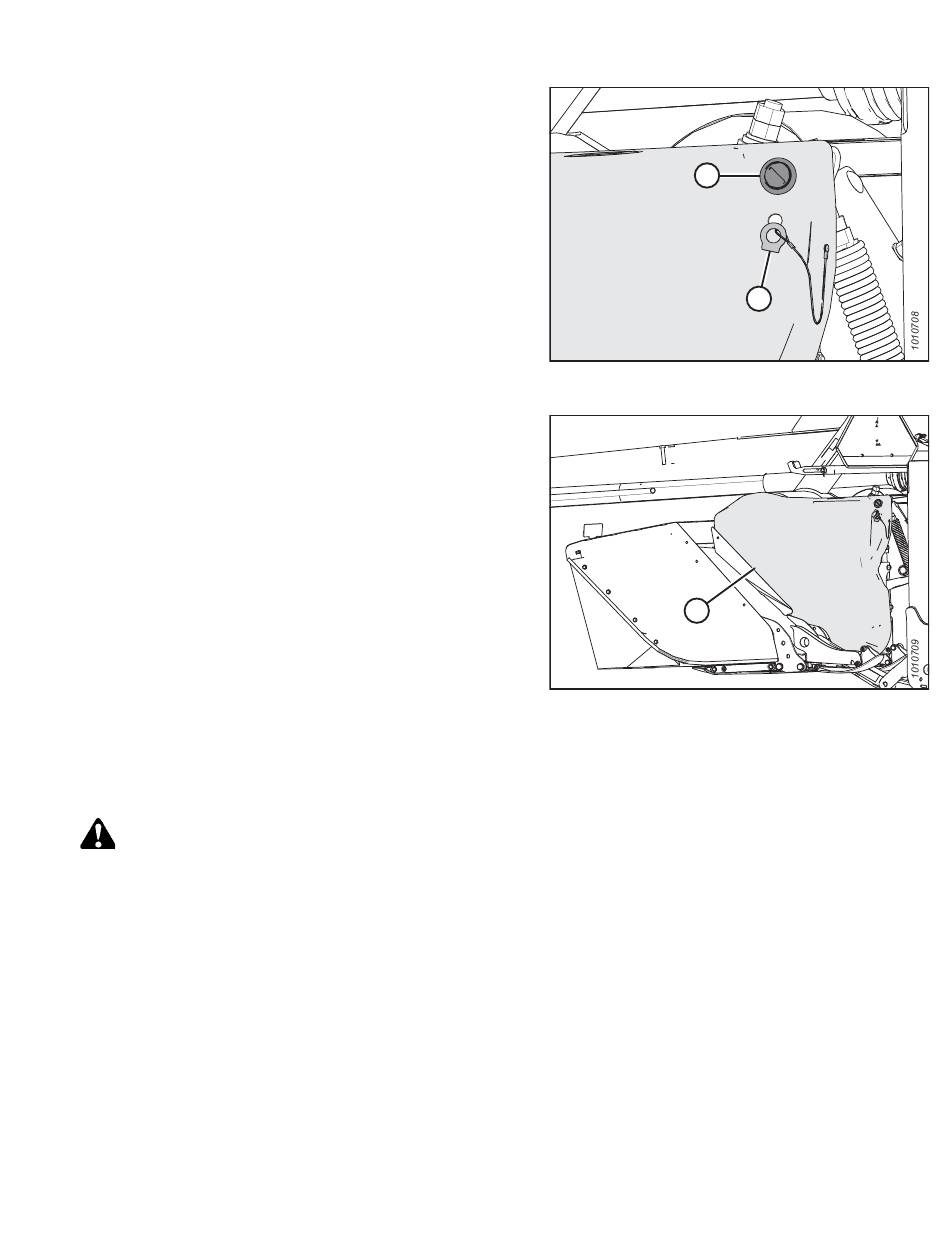

Figure 4.173: Tool to Unlock Driveshield and Latch
Figure 4.174: Driveshield
239
B
A
A
