7. Slide the shield cone to the gearbox and secure it with two
lever clamps (A).
8. R113 PT clutch driveline:
a. Assemble forward half (A) of the clutch driveline onto
the female half and attach it to the shaft on hitch
driveline (B).
b. Position U-joint (C) as shown.
9. R116 PT clutch driveline:
a. Assemble forward half (A) of the clutch driveline onto
the female half and attach it to the shaft on hitch
driveline (B).
b. Position U-joint (C) and grease fitting (D) as shown.
NOTE:
Before installing the driveline, refer to
Phasing, page 243 to ensure the proper orientation.
262634
MAINTENANCE AND SERVICING

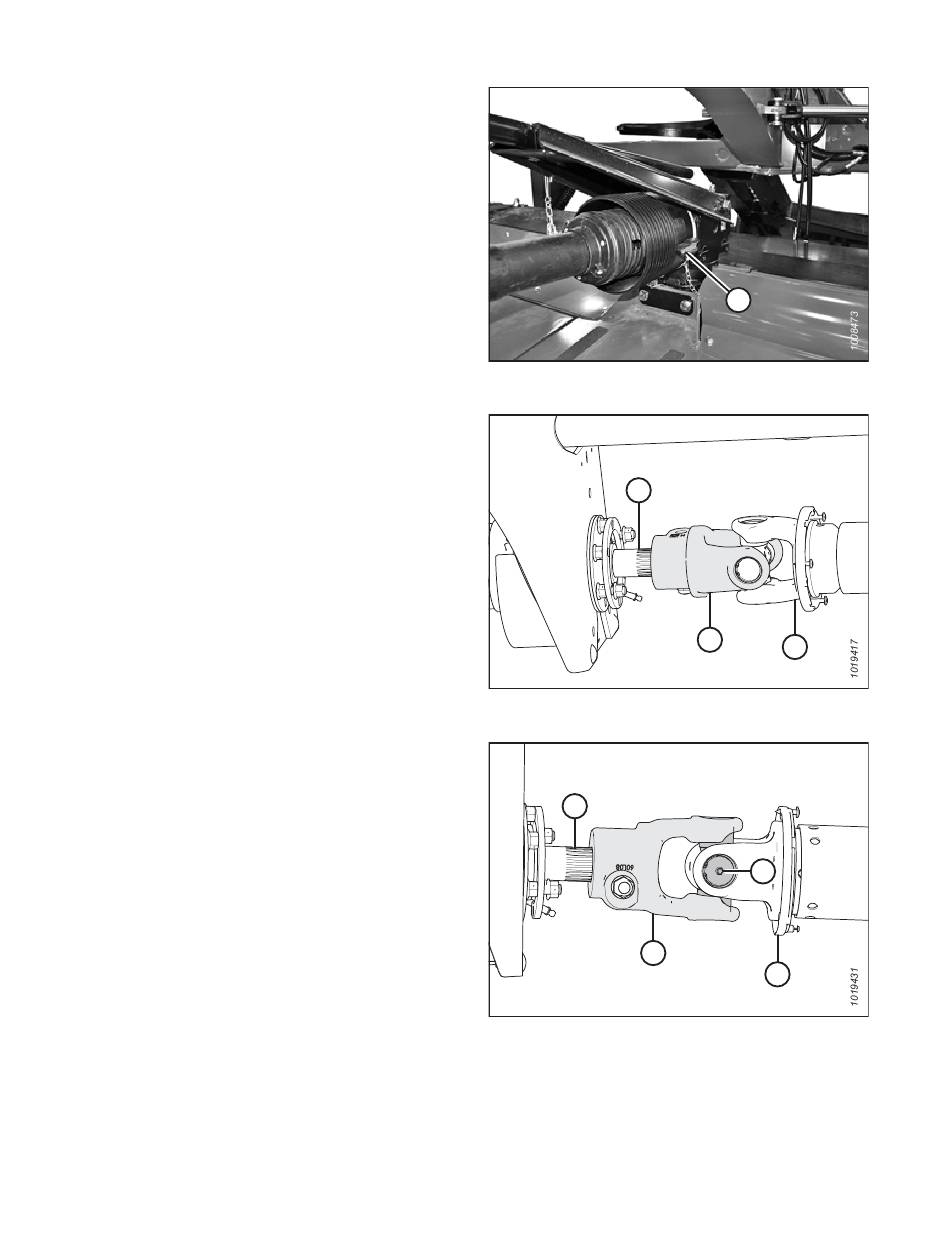

Figure 4.216: Driveline Shield Cone
Figure 4.217: R113 PT Clutch Driveline
4.5.3 Hitch Driveline
Figure 4.218: R116 PT Clutch Driveline
258
A
B
C
B
C
A
D
A
