3.7 Attaching Rotary Disc Pull-Type to Tractor

The rotary disc pull-type can be attached to the tractor with a drawbar hitch or a two-point hitch.
Refer to the attachment procedure that applies to your tractor:
3.7.2 Attaching with Two-Point Hitch, page 51
3.7.1 Attaching with Drawbar Hitch, page 49

3.7.1 Attaching with Drawbar Hitch

If the rotary disc pull-type was configured for a tractor with a drawbar hitch, and the tractor s hitch has been adjusted
correctly, then the rotary disc pull-type can now be attached to the tractor.
DANGER
To prevent injury or death from the unexpected startup of the machine, stop the engine and remove the key from the
ignition before you make adjustments to the machine.
DANGER
Ensure that all bystanders have cleared the area.
1. Shut down the engine, and remove the key from the ignition.
2. Remove lynch pin (A) from clevis pin (B), and remove the
clevis pin from the rotary disc pull-type hitch.
262634
OPERATION

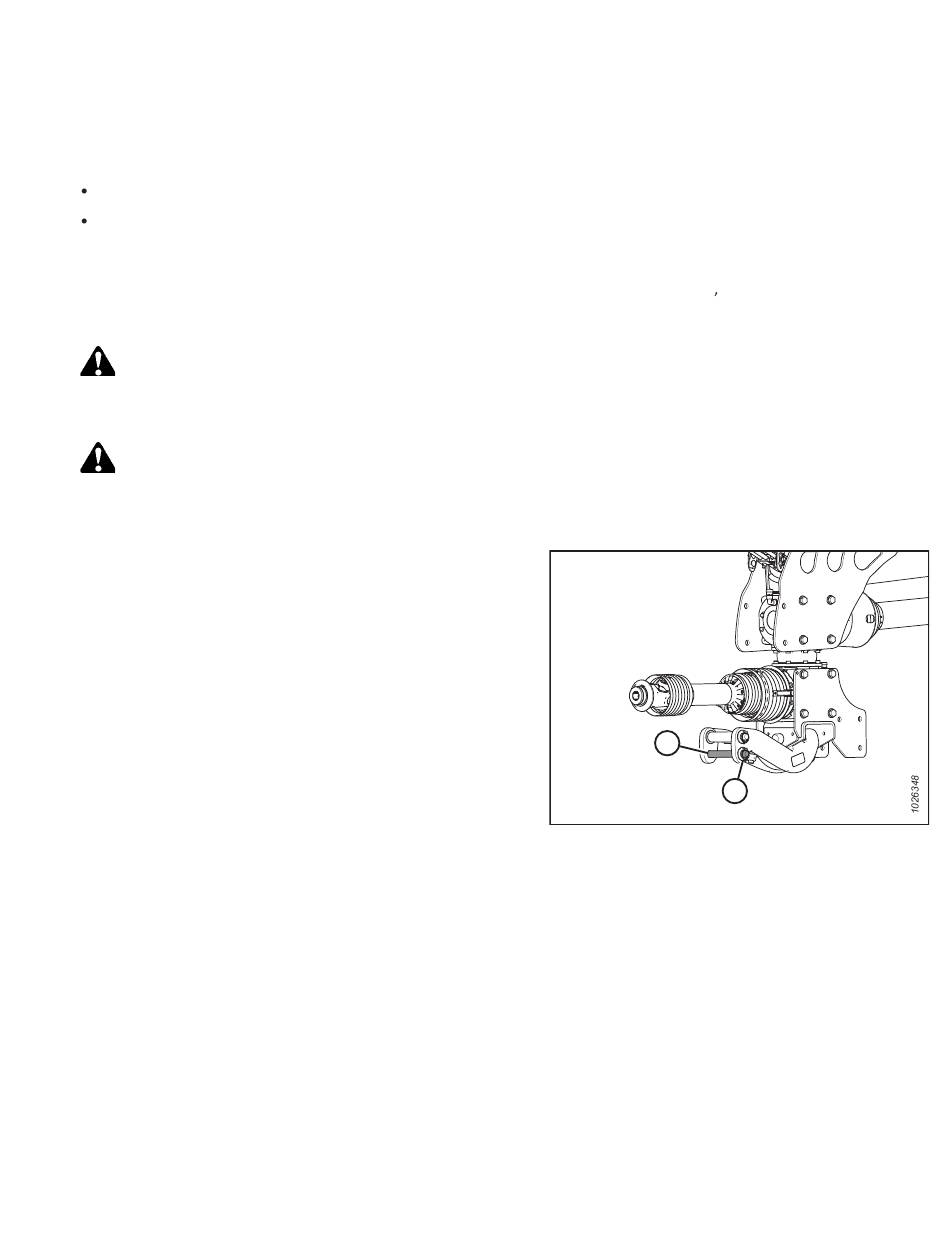

Figure 3.20: Rotary Disc Pull-Type Hitch
49
B
A
