13. Inspect the threads of two M10 bolts (A) and replace them
if they are damaged.
14. Install two M10 bolts and washers (A).
15. Torque the hardware to 55 Nm (40 lbf·ft).
16. Install retaining ring (A).
17. Install the disc or drum. Refer to the relevant procedure:
Install cutterbar disc (A). For instructions, refer to
Installing Cutterbar Discs, page
Install driven drum (B). For instructions, refer to
Installing Large Driven Drums and Driveline, page
Install non-driven drum (C). For instructions, refer to
Installing Large Non-Driven Drums, page
WARNING
Ensure that the cutterbar is completely clear of foreign objects. Foreign objects can be ejected with considerable force
when the machine is started, which can result in serious injury or cause damage to the machine.
262634
MAINTENANCE AND SERVICING
167.
223.
228.
236
A

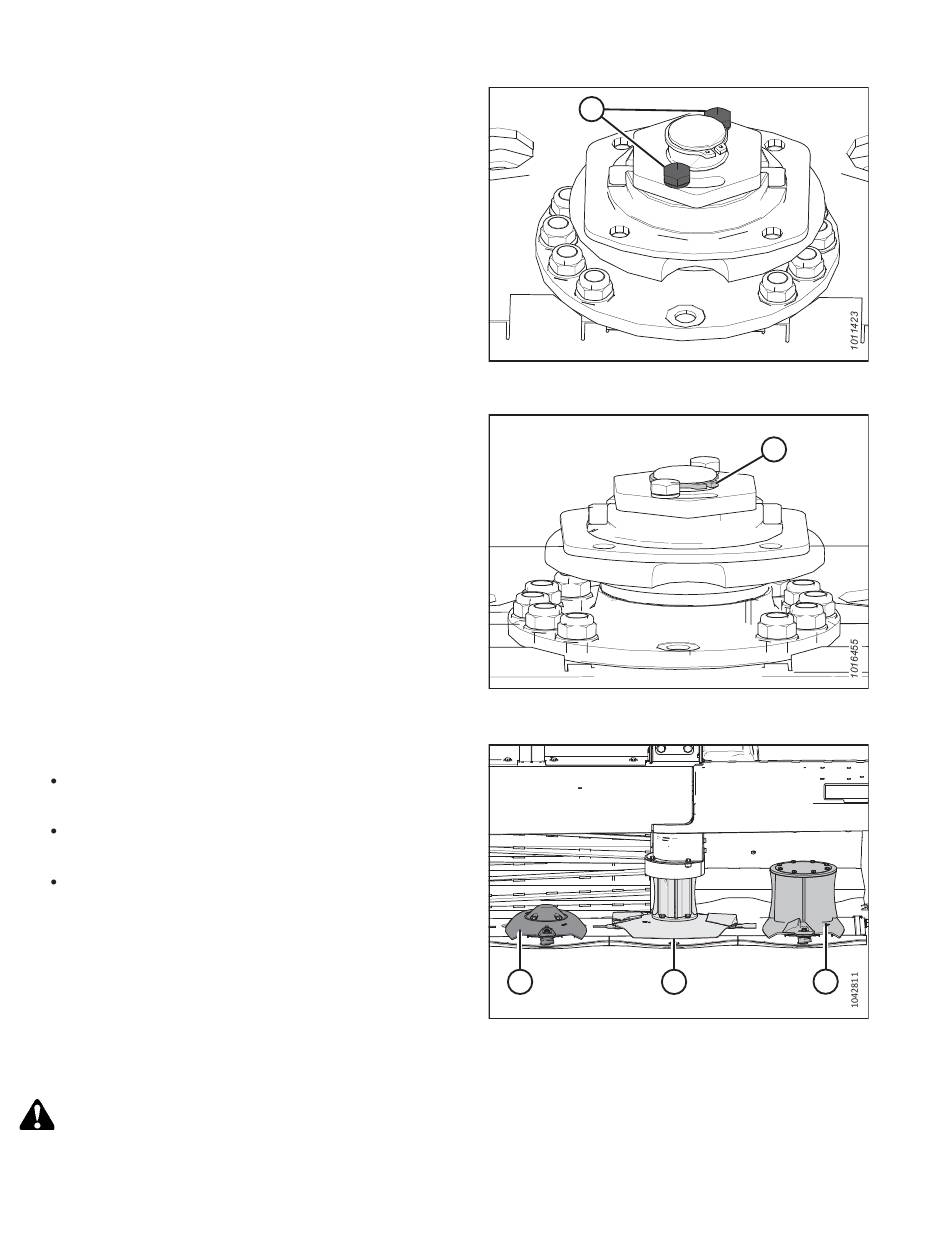

Figure 4.168: Cutterbar Spindle
Figure 4.169: Cutterbar Spindle
A B
Figure 4.170: Cutterbar – 10 Disc Shown, 8 Disc
Similar
A
C
