3. Open the steering lock-out valve by turning handle (A) to
the open position (in line with the hose).
4. Open lock-out valve (A) on each lift cylinder by turning the
handle to the open position (in line with the hose).
Converting from Field to Transport Mode – without Transport
Before operating on the road, the hydraulic steering and lift cylinders must be disabled.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, stop the engine, remove the
key from the ignition, and engage the lift cylinder lock-out valves before going under the machine.
DANGER
Ensure that all bystanders have cleared the area.
1. Raise the rotary disc pull-type.
2. Move the rotary disc pull-type fully to the left, then fully to the right. Repeat this step this a couple times.
3. Center the rotary disc pull-type.
4. Shut down the engine, and remove the key from the ignition.
262634
OPERATION

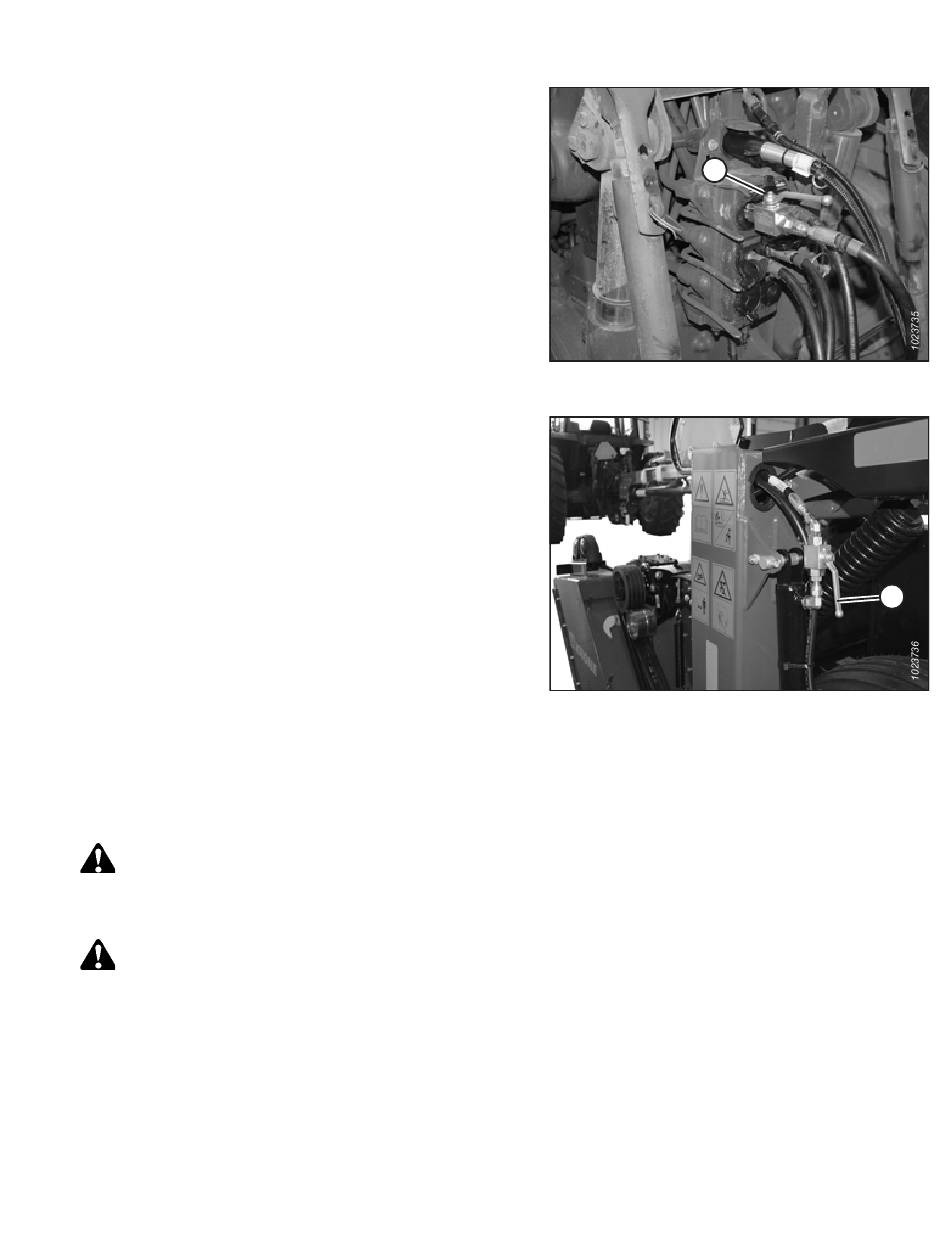

Figure 3.73: Steering Lock-Out Valve in Open Position
Figure 3.74: Lift Cylinder Lock-Out Valve in Open
Position
79
A
A
Revision A
