2. On the left side of the rotary disc pull-type, remove the
conditioner drive belt as follows:
a. Back off the jam nut and tensioner nut (B) on the belt
idler until belts (A) are loose and can be removed.
b. Remove the four belts.
3. Finger conditioner: Move forward baffle adjustment
handle (A) to the fully lowered position, as shown.
4. Finger conditioner: Move rear baffle adjustment handle (B)
to the fully raised position as shown.
NOTE:
Access bolts (C) from behind the conditioner.
5. Roll conditioners: Move baffle adjustment handle (A) to the
fully raised position as shown.
262634
MAINTENANCE AND SERVICING

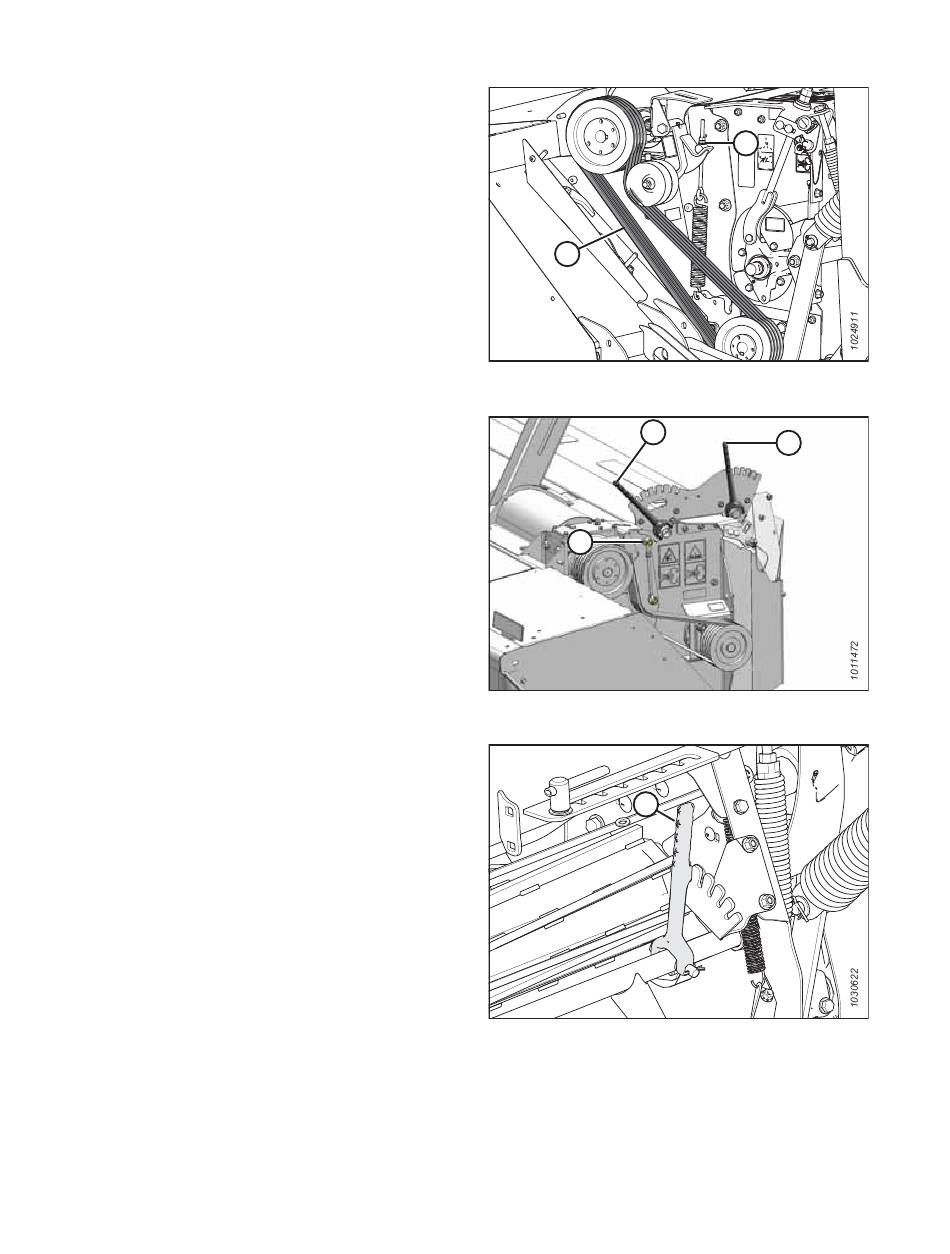

Figure 4.306: Conditioner Drive
Figure 4.307: Left of Finger Conditioner
Figure 4.308: Roll Conditioner – Inboard Right Side
304
B
A
A
C
A
B
