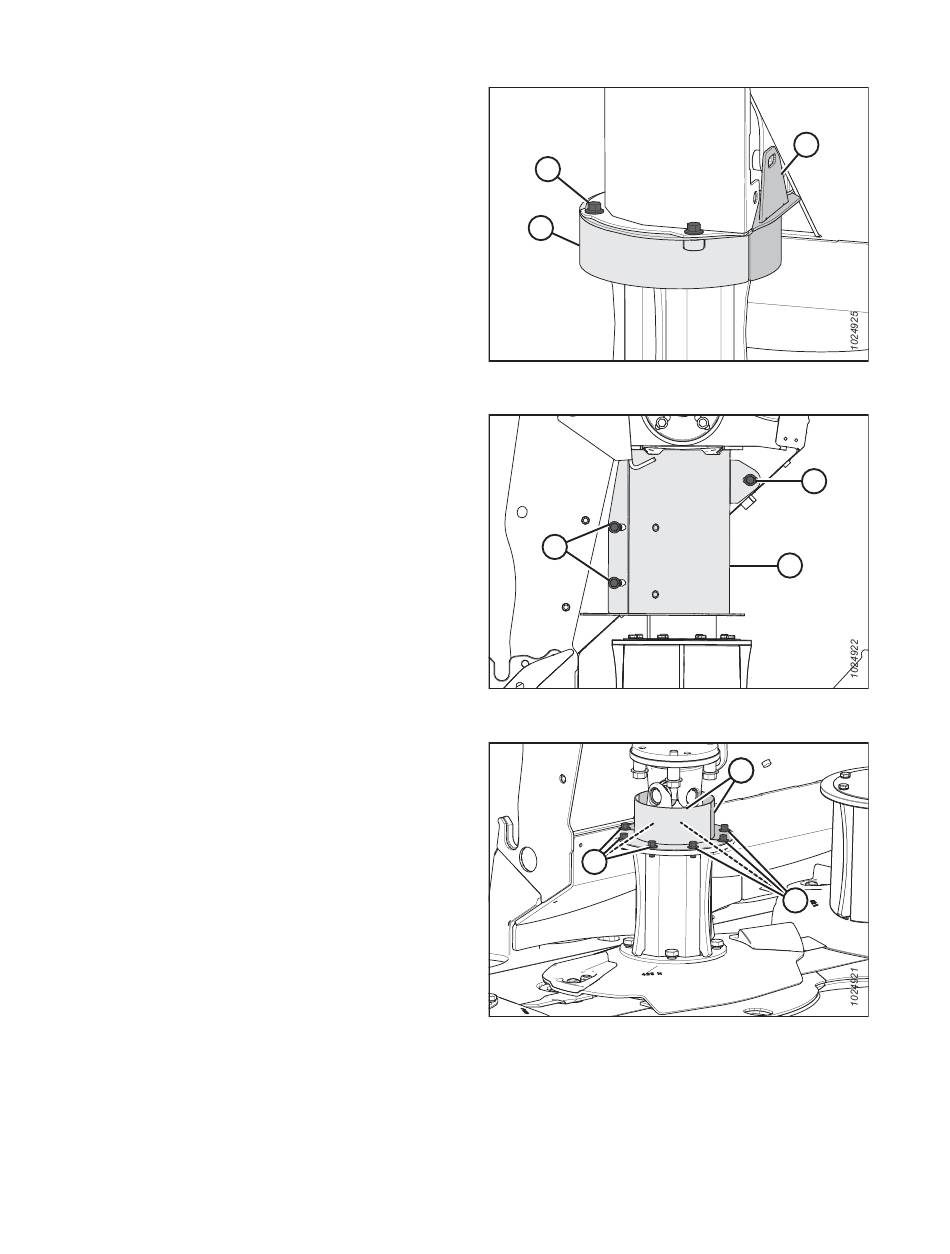

7. Remove four M10 hex flange head bolts (A), top plate (B),
and drum top (C).
8. Remove one 20 mm M10 hex flange head bolt (B), two
16 mm M10 hex flange head bolts (C), and vertical
shield (A).
9. Remove eight M8 hex flange head bolts (A) and two drum
shields (B).
262634
MAINTENANCE AND SERVICING
Figure 4.114: Driveline Shield
Figure 4.115: Driveline Shield
Figure 4.116: Driveline Shield
210
A
B
C
A
C
B
A
B B
A
