Installing Driveline Guards - MacDon R1 Series Operator's Manual

4. Remove base cone (A) and shield tube (B) from the
driveline (not shown) and outer cone (C).
5. Remove shield support (A) from outer cone (B).

Installing Driveline Guards

Installing the Driveline guards that protect the U-joint from dirt, dust, and debris.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator's seat.
WARNING
Do NOT operate the machine without the driveline guards in place and securely fastened.
1. Shut down the engine, and remove the key from the ignition.
262634
MAINTENANCE AND SERVICING

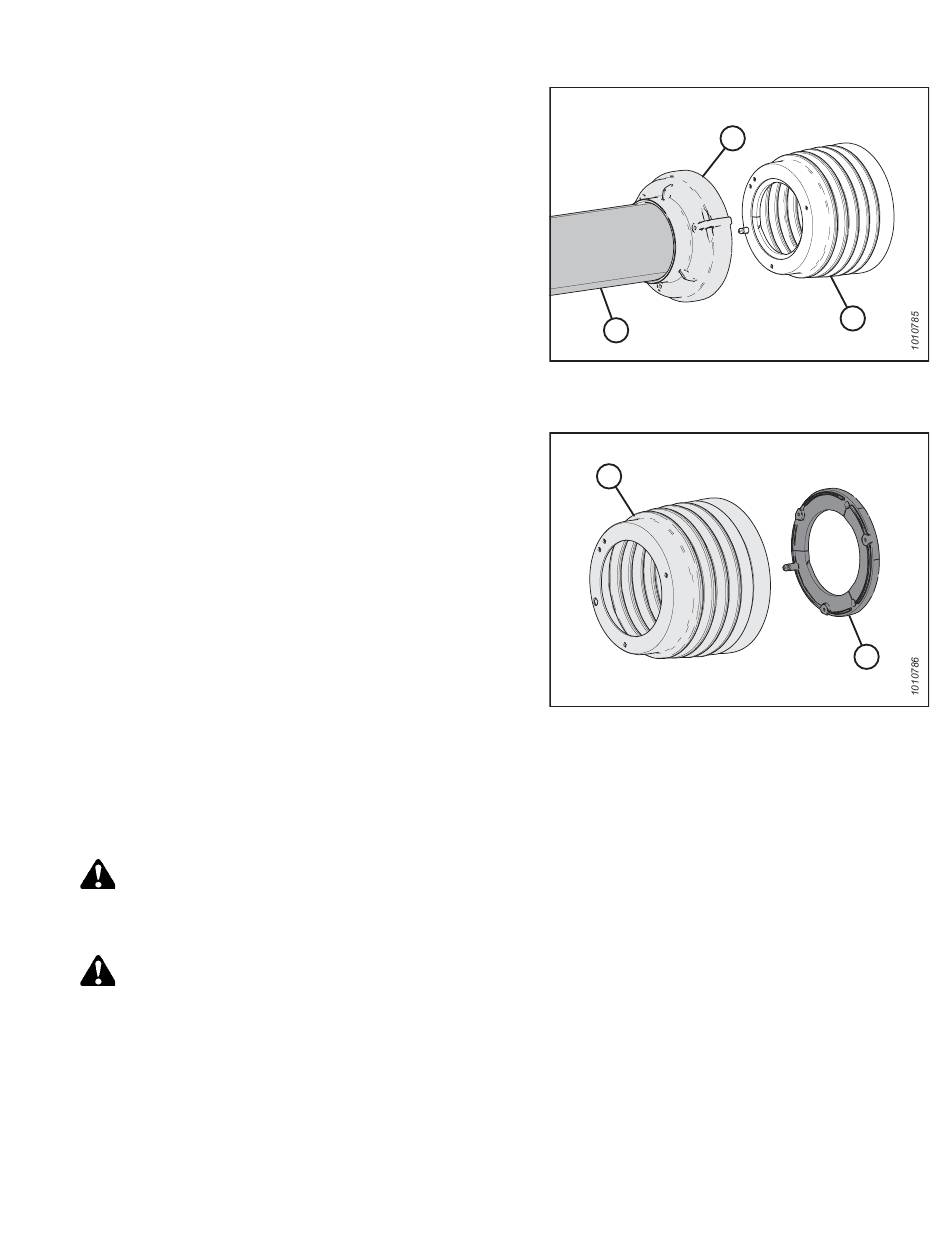

Figure 4.237: Base Cone and Shield Tube Removed
from Outer Cone
Figure 4.238: Shield Support Removed from
Outer Cone
269
A
B
B
C
A
Revision A
