Inspecting Quick Change Plates

Check the thickness of the retaining bolts and the quick change plate using the supplied gauge.
DANGER
To prevent injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and remove
the key from the ignition before leaving the operator's seat or making adjustments to the machine. If the rotary disc
pull-type is raised, always close the lock-out valves, and place blocks under the rotary disc pull-type. Never work on or
beneath an unsupported rotary disc pull-type.
DANGER
Ensure that all bystanders have cleared the area.
WARNING
Disc blades have two sharp cutting edges that can cause serious injury. Exercise caution and wear gloves when working
with, or near, blades.
DANGER
To avoid serious injury or death due to worn quick change plate, check the plates for damage before and after each
use. The wear limit of the quick change plate is reached when the application seam is worn away at one point. The
wear limit must be checked with a gauge.
1. Position the rotary disc pull-type at an appropriate height for the task.
2. Shut down the engine, and remove the key from the ignition.
3. If the rotary disc pull-type is raised:
a. Place blocks under each end, or just inside each end, of the cutterbar.
b. Lower the rotary disc pull-type onto the blocks.
c. Shut down the engine, and remove the key from the ignition.
d. Close the lift cylinder lock-out valves. For instructions, refer to
4. Remove hairpin clip (A).
5. Remove pin (B).
6. Remove change tool (C).
262634
MAINTENANCE AND SERVICING
3.1.1 Engaging Locks, page

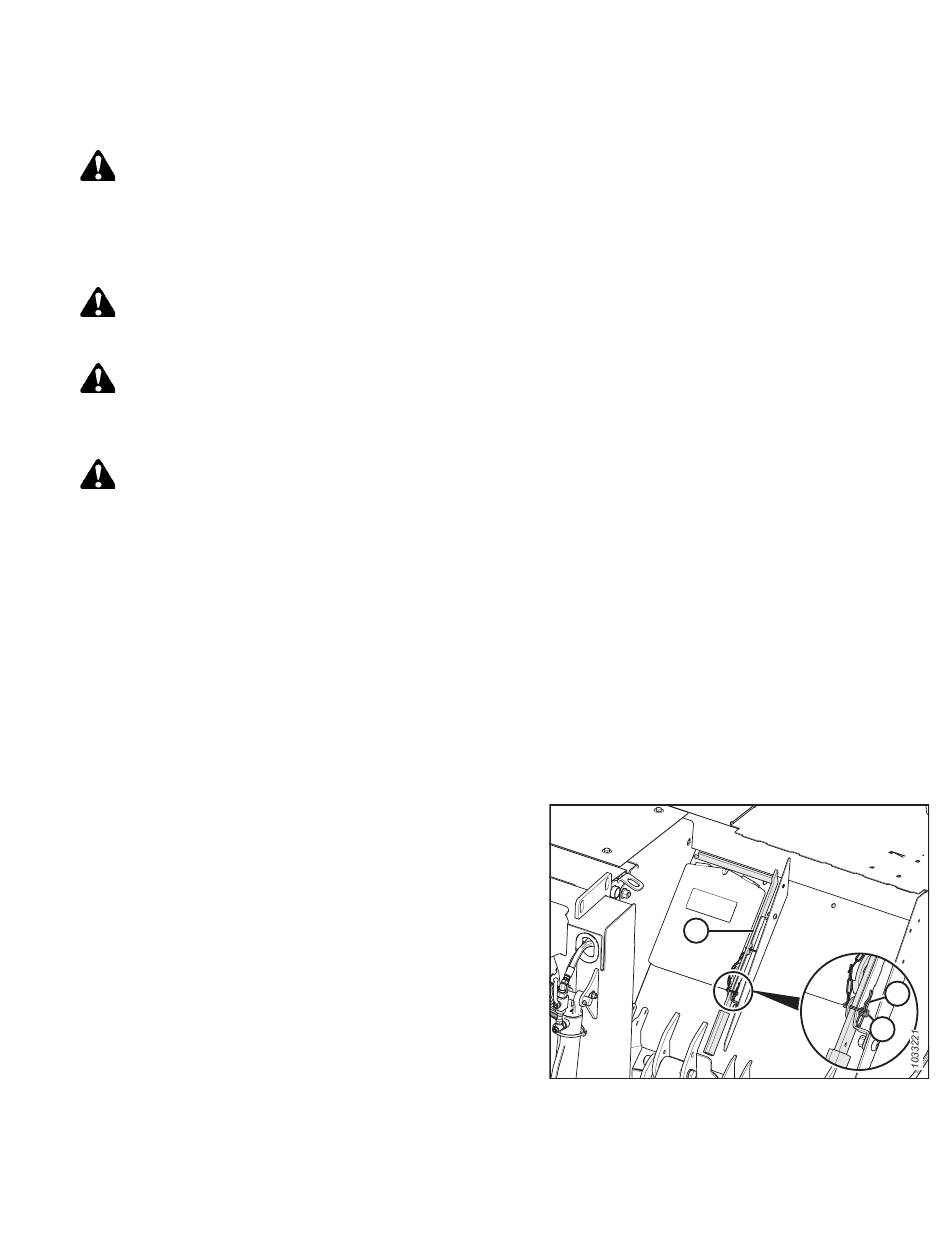

Figure 4.82: Installing Quick Change Blade
191
35.
C
A
B
