Installing Field Wheels

The rotary disc pull-type rolls on the field wheels when in the field position. When the transport is deployed (if equipped),
the field wheels are raised off the road.
1. Position wheel (A) on the spindle, install bolts (B), and
partially tighten the bolts.
IMPORTANT:
Be sure valve stem (C) points away from the wheel support.
NOTE:
The field wheels must be installed inboard on the
carrier frame.
2. Lower the wheels to the ground and torque the wheel bolts
to 160 Nm (120 lbf·ft) using the tightening
sequence shown.
IMPORTANT:
Whenever a wheel is installed, check the wheel bolt torque
after 1 hour of operation.
3. Check the tire pressure and adjust it as required. For
instructions, refer to
262634
MAINTENANCE AND SERVICING
Inflating Tires, page
290.

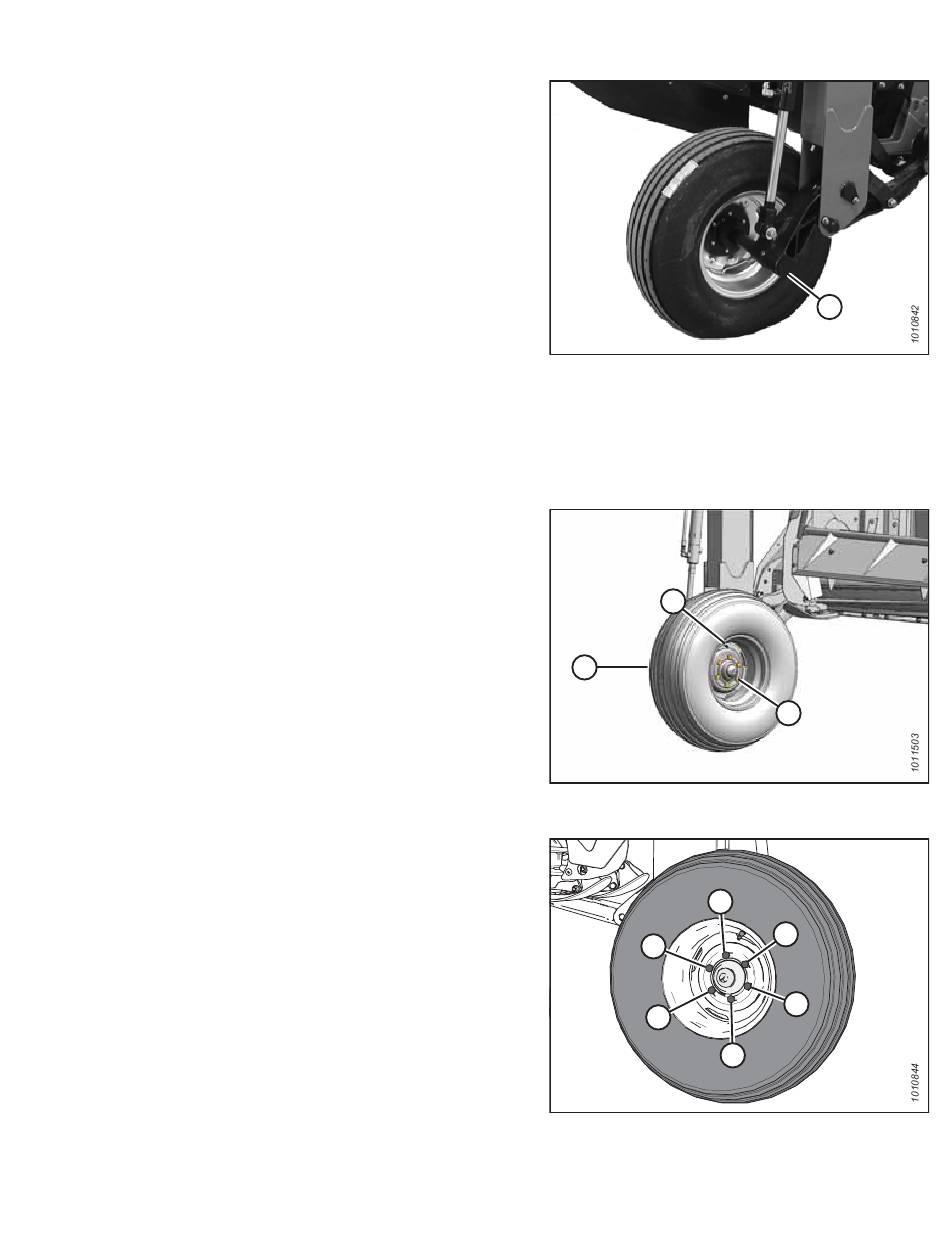

Figure 4.273: Field Wheel
C
A
Figure 4.274: Installing Wheel Bolts
1
6
Figure 4.275: Tightening Sequence
289
B
B
3
5
2
4
Revision A
