WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
1. Position the rotary disc pull-type at an appropriate height for the task.
2. Shut down the engine, and remove the key from the ignition.
3. If the rotary disc pull-type is raised:
a. Place blocks under each end, or just inside each end, of the cutterbar.
b. Lower the rotary disc pull-type onto the blocks.
c. Shut down the engine, and remove the key from the ignition.
d. Close the lift cylinder lock-out valves. For instructions, refer to
4. Open the cutterbar doors. For instructions, refer to
Opening Cutterbar Doors – North America, page 41
Opening Cutterbar Doors – Export, page

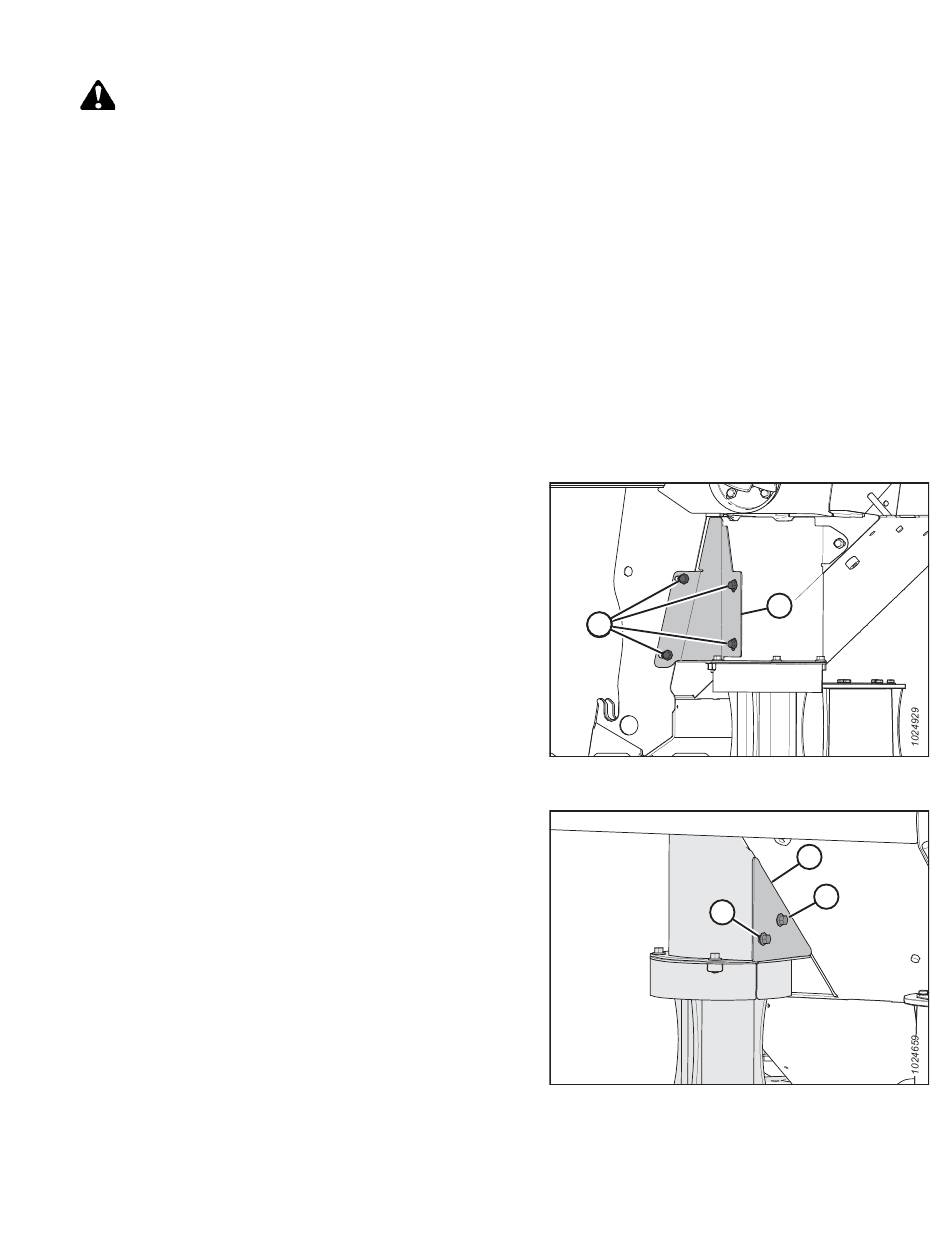

5. Remove four M10 hex flange head bolts (A) and remove
vertical driveshield (B).
6. Remove two M10 hex flange head bolts (B) and cover
plate (A).
262634
MAINTENANCE AND SERVICING
3.3.1
or 3.3.2
42.
Figure 4.112: Driveline Shield
Figure 4.113: Driveline Shield
209
3.1.1 Engaging Locks, page
A A A A
B
35.
B
A
B
