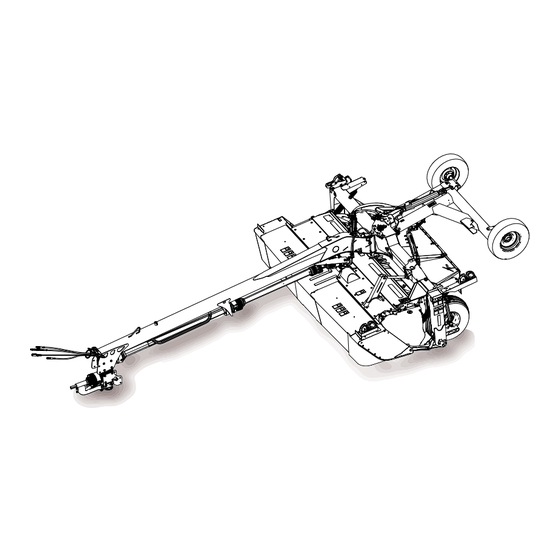

MacDon R113 Quick Manual

R 11 3 / R 11 6 S P Q u i c k C a r d
Rear Baffle Deflector Fins
Controls material distribution across windrow. Narrower windrow.
1. Remove fins from storage position (on top of baffle).
2. Position deflector fin (A) under baffle.
3. Secure with existing bolt and nut (B) (bolt head facing down).
4. Adjust to approximately 60 degree angle (as shown).
5. Torque nut to 69 Nm (51 lbf-ft). Repeat on other side.
(A) acres/hr (B) hectares/hr
Smooth / level / firm ground: 16 km/h (10 mph)
and higher, or until cutting and conditioning quality
are compromised.
R113/R116 Self-Propelled Disc Mower Quick Card MD #214620 Rev. A
Supplement to R113/R116 SP Disc Mower Operator's Manual
W i n d r o w
Side Deflectors—Roll Conditioner
Wide swath (A)
Deflectors are angled
outboard.
Narrow swath (B)
Deflectors are angled
inboard.
G r o u n d S p e e d
(C) km/h (D) mph
Rocks / ridges / loose ground: Slow to minimize
bouncing, uneven stubble, and damage to the
cutterbar.
Subject to change without notice.
Use this card as a guide only. Refer to your Operator's Manual
for detailed settings and adjustment procedures.
Rear Baffle Plate
Controls windrow height. Directs crop flow that affects width.
1. Remove lynch pin (A).
2. Pull adjustment lever (B) inboard to disengage from bracket (C).
3. Move lever forward—raise baffle—narrow swath.
4. Move lever backward—lower baffle—wide swath.
5. Release lever so tab engages the notch in bracket (C).
6. Secure lever with lynch pin (A).
Controls windrow width and placement.
1. Loosen locking handle (A).
2. Slide adjuster bar (B) along adjuster
3. Engage bar (B) into a notch in the
4. Tighten locking handle (A).
5. Repeat for other side to the same
6. Adjust rear baffle as required.
(E) R116 (F) R113
plate (C) to desired position.
adjuster plate.
position.
D i s c S p e e d
Light / Thin Crop
Light or Heavy / Tough Crop
