PathFinder 350S User Manual
6.9.2.3
A racks registry configuration report shows the rack barcode, barcode type, and rack
type identifier for each of the registered racks. Figure 6-38 is an example of the
unfiltered report.
6.9.2.4
A profile gates configuration report shows, for each profile available on the
PathFinder 350S, information on how each gate is used. The profile gates report
can be read from left to right to describe the use of each gate. For instance line 4
in the figure below could be read as:
'In production, when using the PF5x50 Tray, Gate 4 outputs tubes requiring
manual tests'
Page 70
Racks Registry

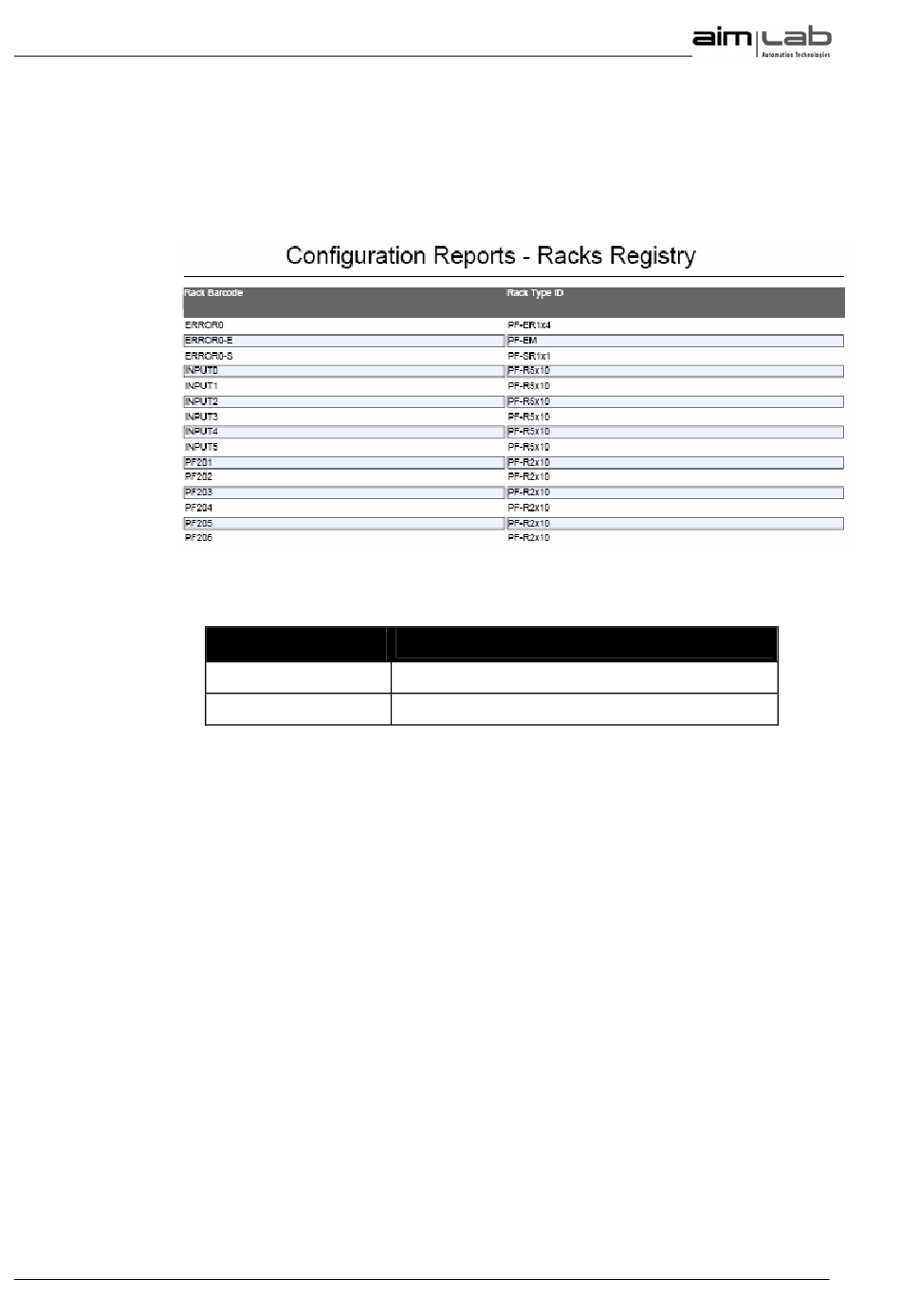

Figure 6-38 Example Rack Registry Report
Heading
Rack Barcode
Rack type ID
Profile Gates
© Copyright 2010 Aim Lab Pty Ltd
Description
Barcode of the rack.
The type of the rack.
03P27-42 Rev A
