PathFinder 350S User Manual
6.4

Home Page

Accessed by Operator and Administrator
The home page displays the current operating state of the PathFinder 350S. A
typical home page is shown in Figure 6-6.
Tray Status
Page 44

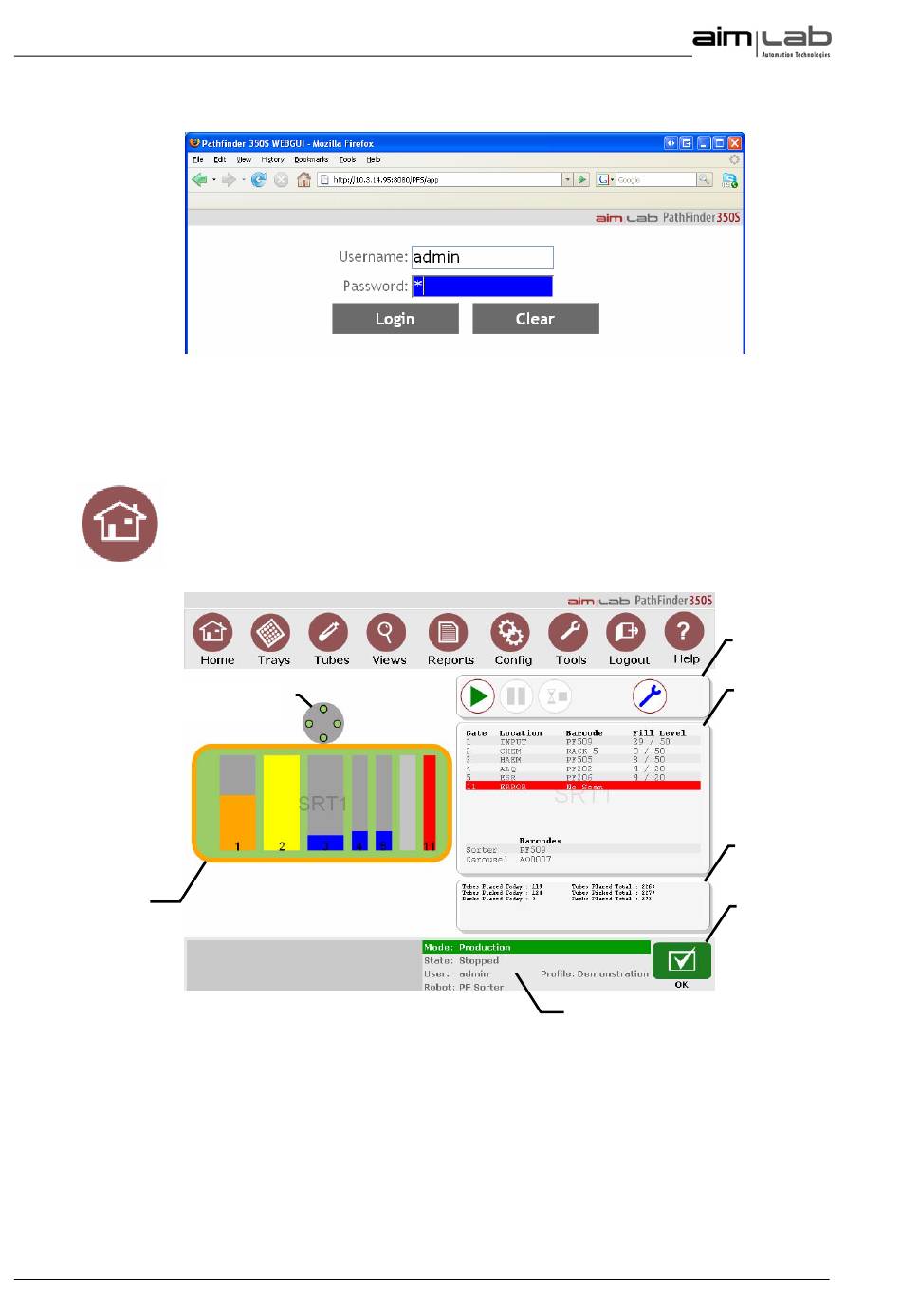

Figure 6-5 Login Page via Remote Access

Carousel

Figure 6-6 Home Page

© Copyright 2010 Aim Lab Pty Ltd
Control Buttons
Rack Details
Status Panel
03P27-42 Rev A
Production Stats
Master Alarm
Indicator
