Production Statistics

This panel shows at a glance the number of tubes processed by the PathFinder 350S
today and since installation.
6.4.5

Master Alarm Indicator

The master alarm indicator indicates the error status of the system. If green then
there are no problems that will stop processing of tubes. If an error occurs that will
stop the Sorter then the indicator will turn red, and an error message is displayed
above the Rack Details panel as shown in Figure 6-7.
6.4.6

Status Panel

The status panel displays information about the current profile being run and the
identification of the PathFinder 350S.
The master alarm indicator and status panel are included at the bottom of every
page to provide current feedback on the system status.
Page 46
Location: the location ID the rack is associated with, this is the name the LIS
uses to access that rack.
Barcode: the barcode of the rack.
Fill Level: this shows the capacity of the rack and how many tubes the rack
currently holds.

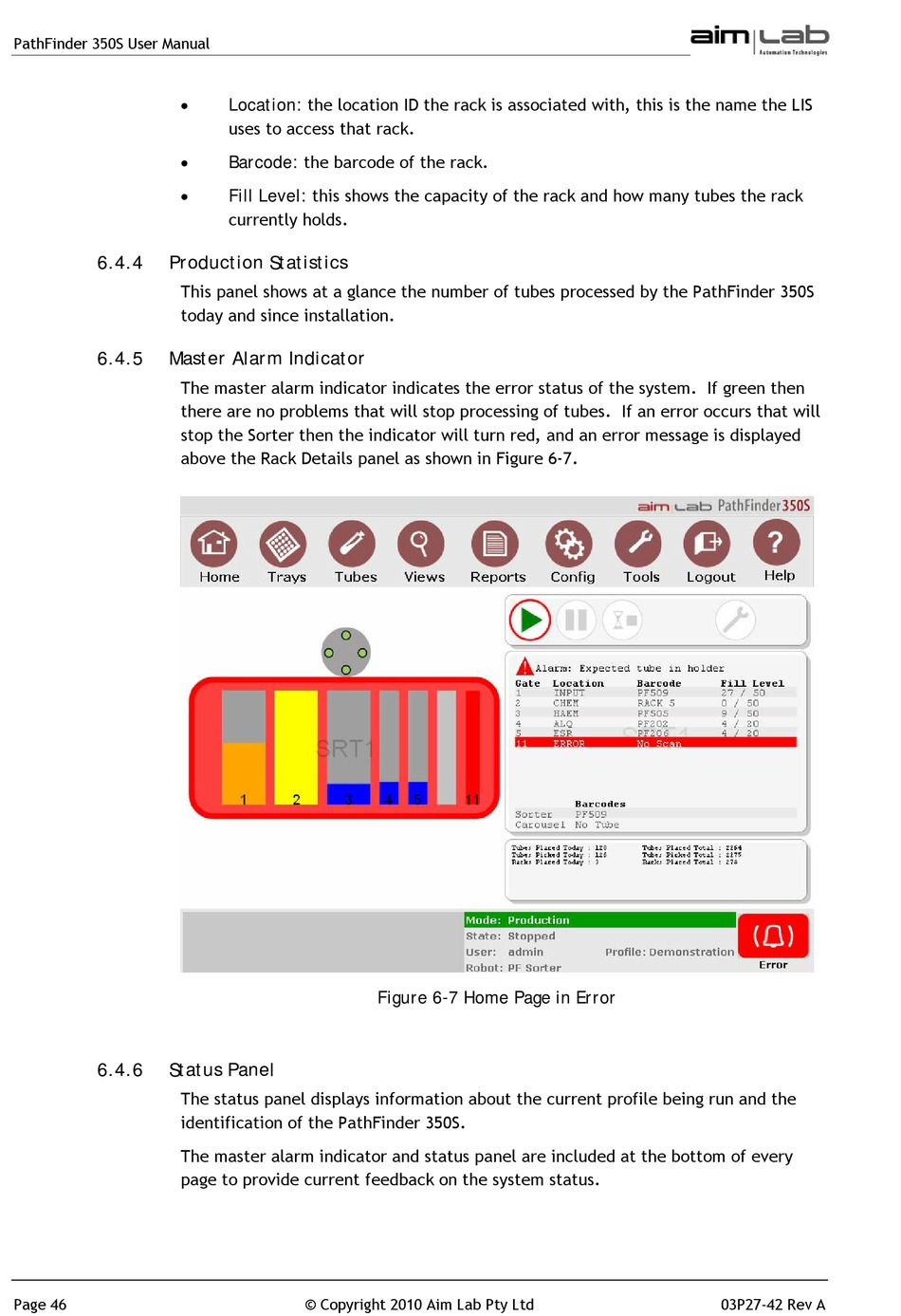

Figure 6-7 Home Page in Error
