PathFinder 350S User Manual
6.7

Config Page

Accessed by Operator and Administrator
The configuration page provides different options depending on the access level.
Operator access is limited to changing the operating mode, and resetting the system
Administrator access provides far more options, as shown in the screenshot below.
The configuration page is broadly divided into three areas: operating mode, workcell
configuration, and GUI configuration.
Page 50

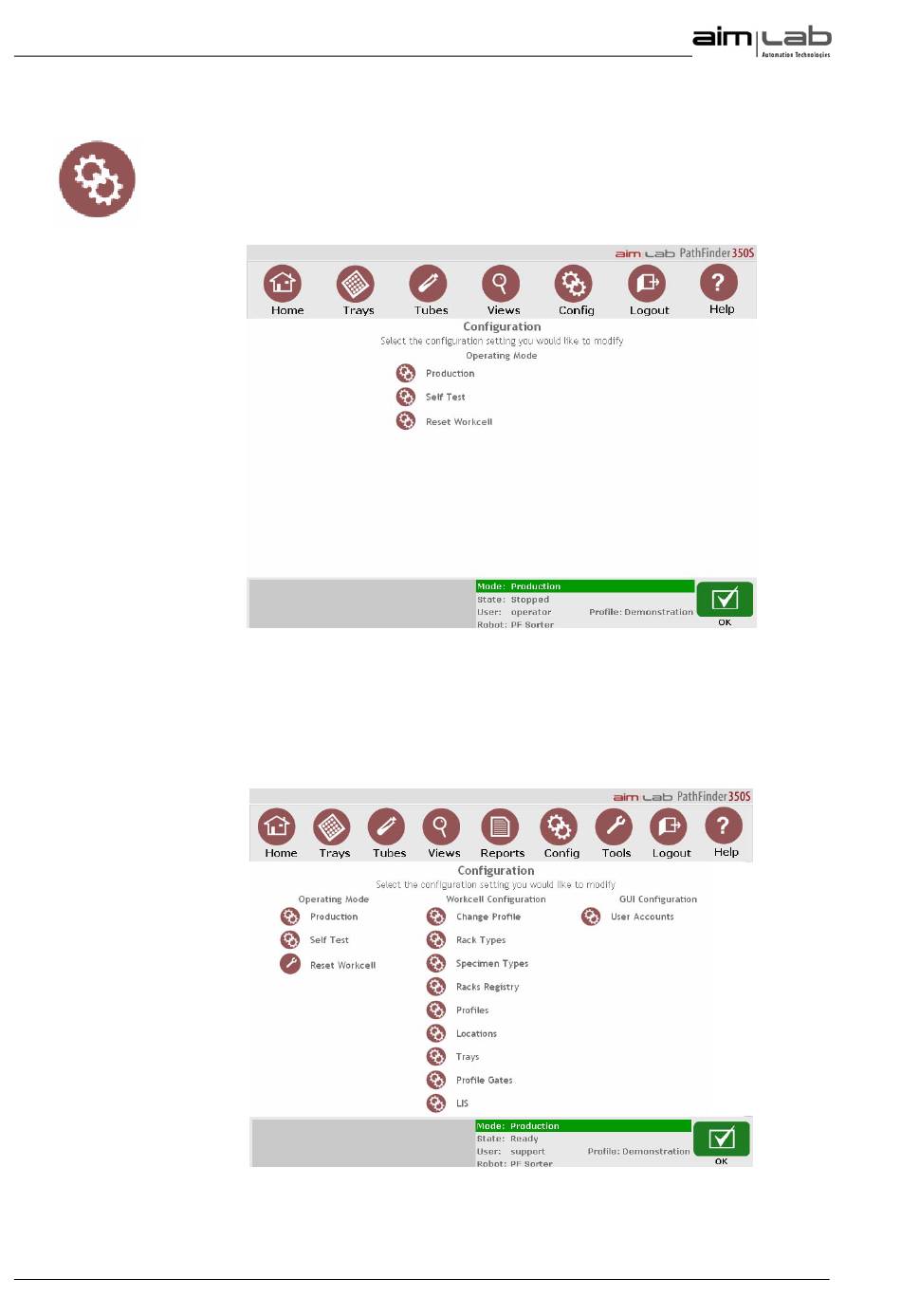

Figure 6-11 Config Page - Operator Login

Figure 6-12 Config Page - Administrator Login
