3.4

Tray Terminology

Gate LED: indicates the
status of a rack.
Gate: This is a location for a rack. It is numbered
(1 thru 10) from the left of the tray. It can also be
Page 24
This manual and the PathFinder 350S configuration refer to different parts of the
specimen tray that may not be obvious to the new user. Figure 3-8 illustrates this
terminology and should be referred to while configuring the PathFinder 350S.
Rack: may be a single piece rack (as shown) or a rack adaptor that
holds multiple analyser racks.
assigned a location ID.

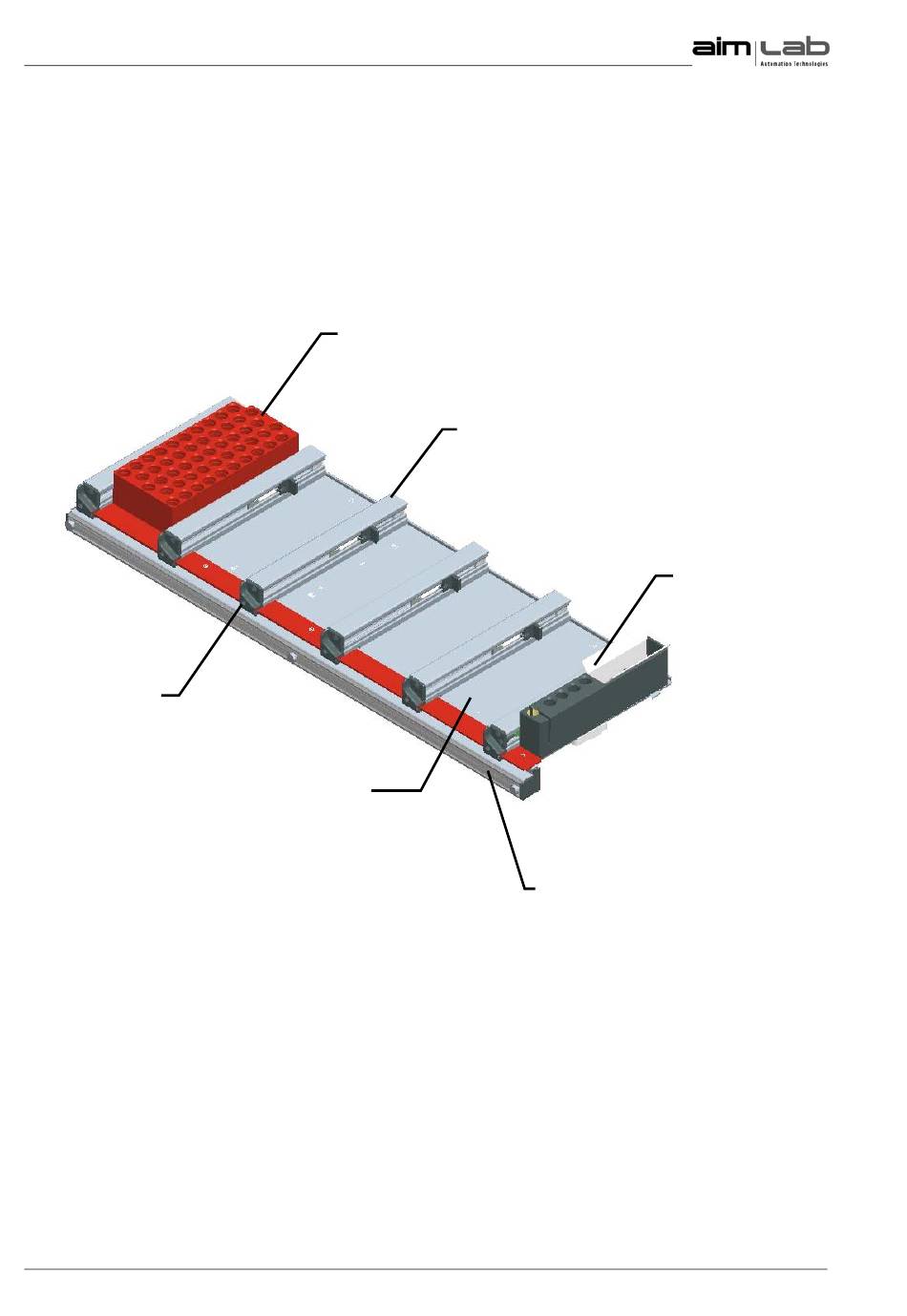

Figure 3-8 Specimen Tray Terminology

© Copyright 2010 Aim Lab Pty Ltd
Rack Fence: this is the physical divider between gates.
They also hold the rack firmly in position. They are
located on a slot cut into the tray.
Label Strip: Clear window that can be used to
label location ID's.
Error/Stat Rack: custom rack
used by the PathFinder 350s.
03P27-42 Rev A
