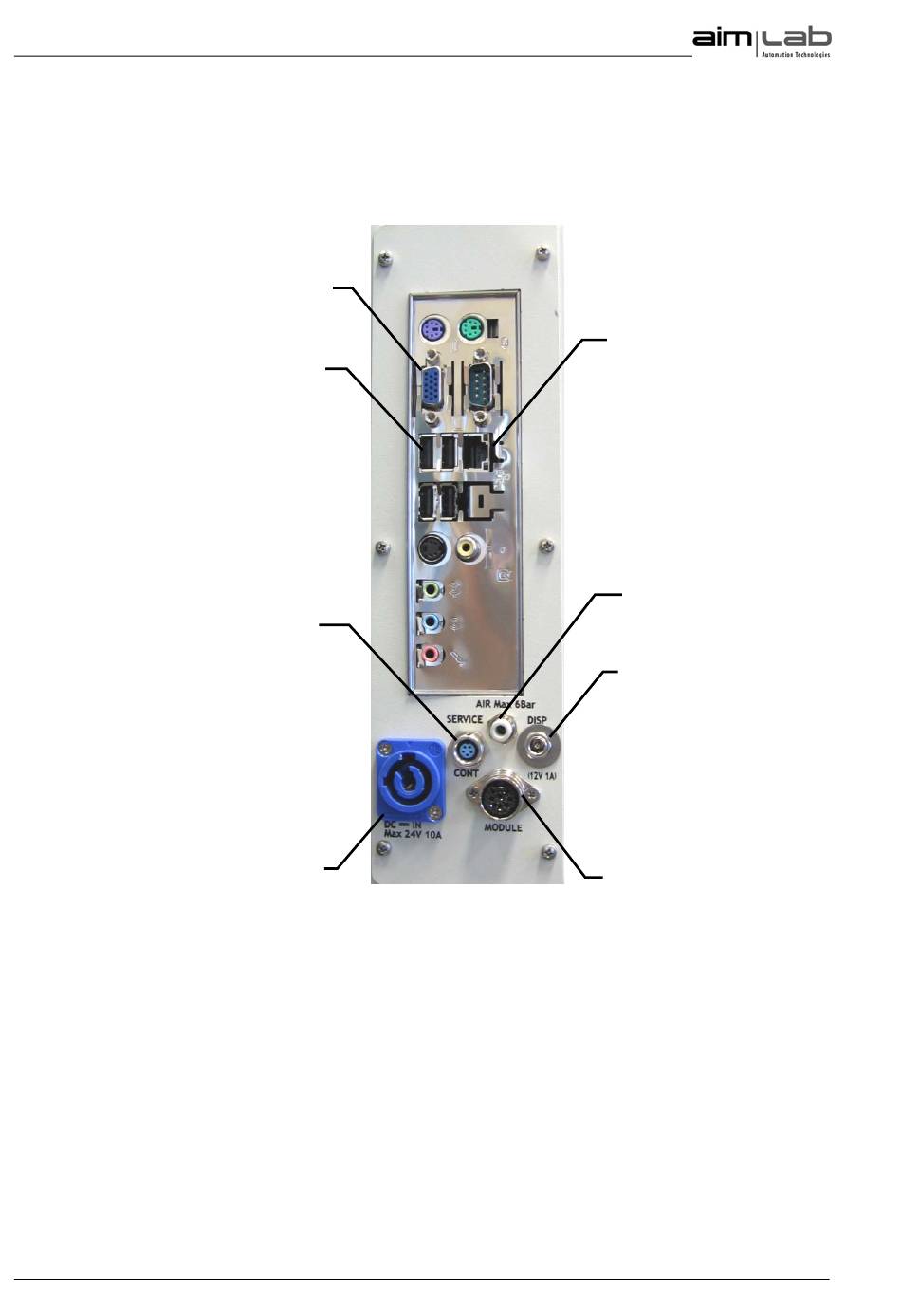

All modules connect into the back panel of the Sorter, shown in Figure 4-1. The
connectors needed during the installation are called out.
Services Module Power
4.2.2

Carousel

Attach the carousel module to the Sorter by following the procedure below:
1)
2)
Page 26
15 pin D Connector
LCD Monitor
USB Port
LCD Touch Screen
Services
Module Control

Figure 4-1 Sorter Connections

Referring to Figure 4-2, use the 2 x M8 Hex bolts (blue) supplied to attach the
two short carousel legs (green) to the Sorter base (grey).
The top of the legs should be level with the Sorter base, and the stepped,
shorter side should face outwards.
