6.9.2.2
The racks configuration report shows, for each type of rack used in the
PathFinder 350S, rack capacity and dimensions, the depth and diameter of wells in
the rack, and the co–ordinates of the centres of the wells. This is an example of the
unfiltered report.
03P27-42 Rev A
Racks

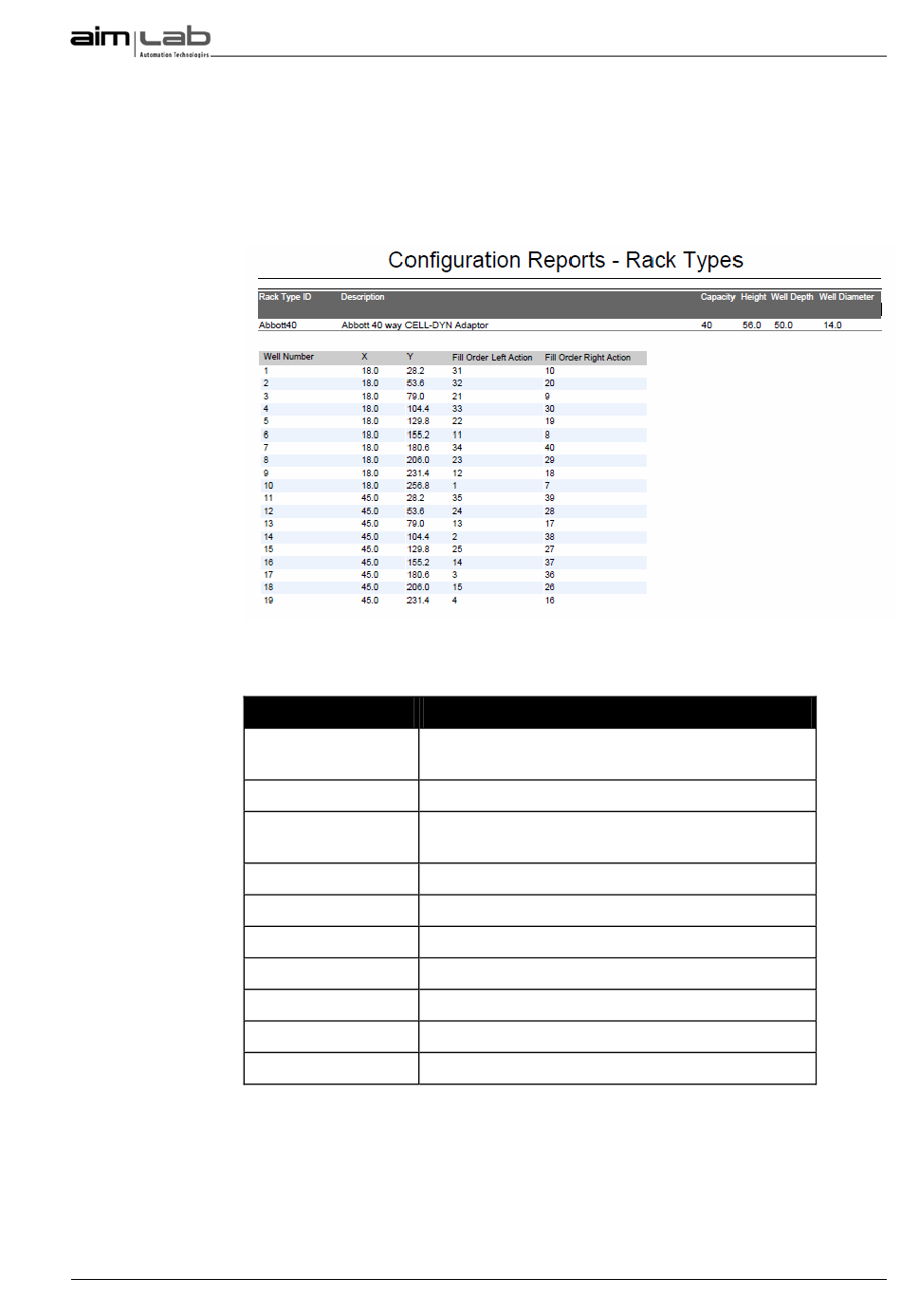

Figure 6-37 Example Rack Types Report
Report Item
Rack Type ID
Description
Capacity
Height
Well depth
Well diameter
Well Number
X
Y
Fill Order
© Copyright 2010 Aim Lab Pty Ltd
Description
This is the identifier of the rack type, set in the rack
types configuration.
Description of the rack type.
The maximum number of tubes that can be held by the
rack.
Height of the rack in mm.
Depth of the tube wells in mm.
Diameter of the tube wells in mm.
The well number in the rack.
The X co-ordinates in mm for the well.
The Y co-ordinates in mm for the well.
The order in which the tube wells are accessed.
