Covers; Figure 4-6 Rear Cover Installation - Aim Lab PathFinder 350S User Manual

4.2.4

Covers

To fit the Sorter covers, follow the procedures below.
4.2.4.1
As shown in Figure 4-6, the rear cover is attached to the Sorter using 2 x M4 screws
and 2 x M8 screws:
1)
2)
3)
M4 Screw
03P27-42 Rev A
Rear Cover
Position the rear cover at the back of the Sorter and over the carousel.
Use a Phillips-head screwdriver to attach the rear cover to the Sorter frame
using the 2 x M4 countersunk screws supplied.
Use a 6mm hex driver to attach the rear cover to the carousel legs.

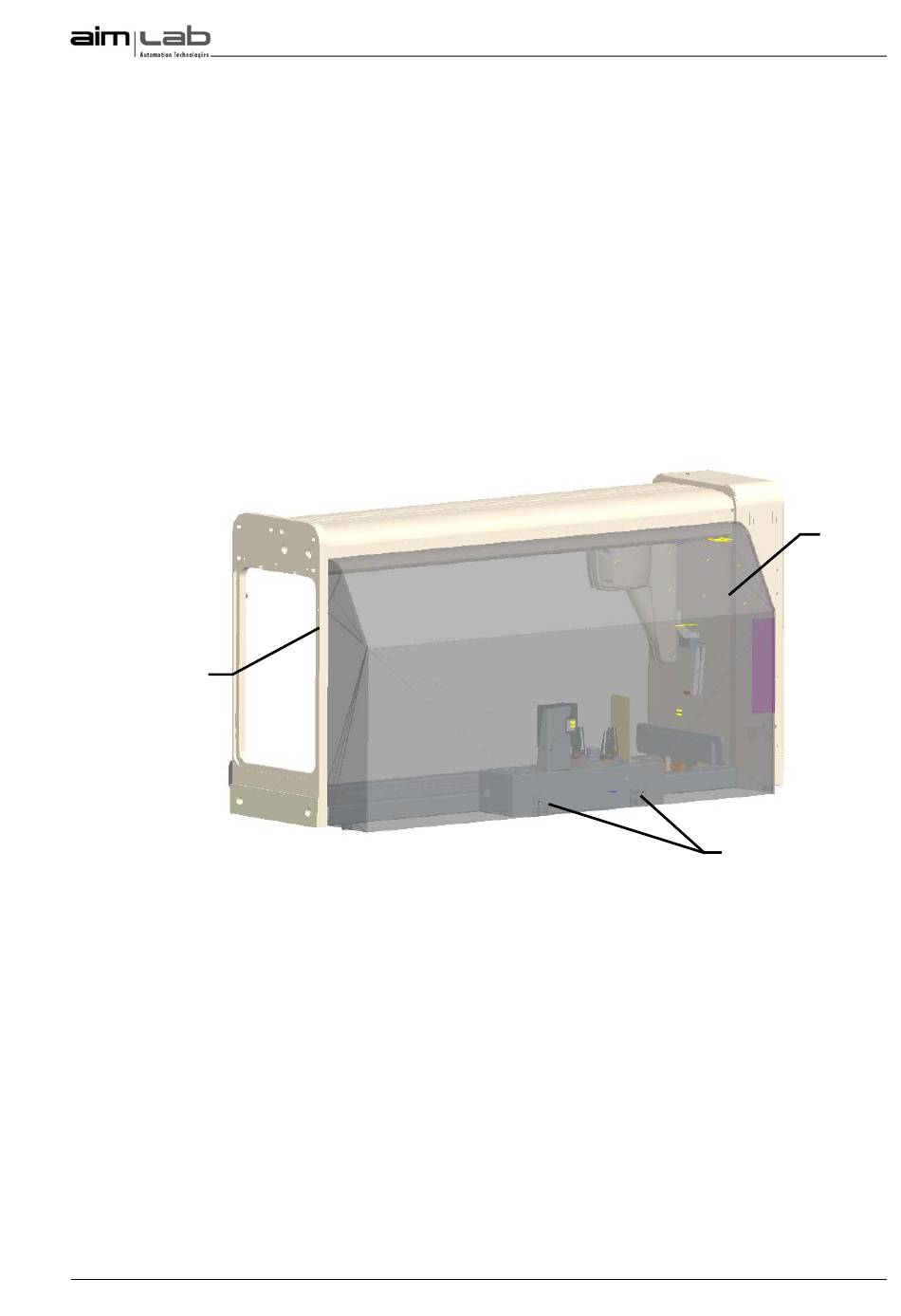

Figure 4-6 Rear Cover Installation

© Copyright 2010 Aim Lab Pty Ltd
PathFinder 350S User Manual
M4 Screw
M8 Screws
Page 29
