PathFinder 350S User Manual
8.7.2
Module Fuse
Ensure the power to the services module has been turned off and the power supply
cable has been disconnected:
1)
2)
Page 106
Unscrew the fuse holder from the front of the services module and pull out
the fuse. Remove the blown fuse and replace with a fuse of the same type
and rating.

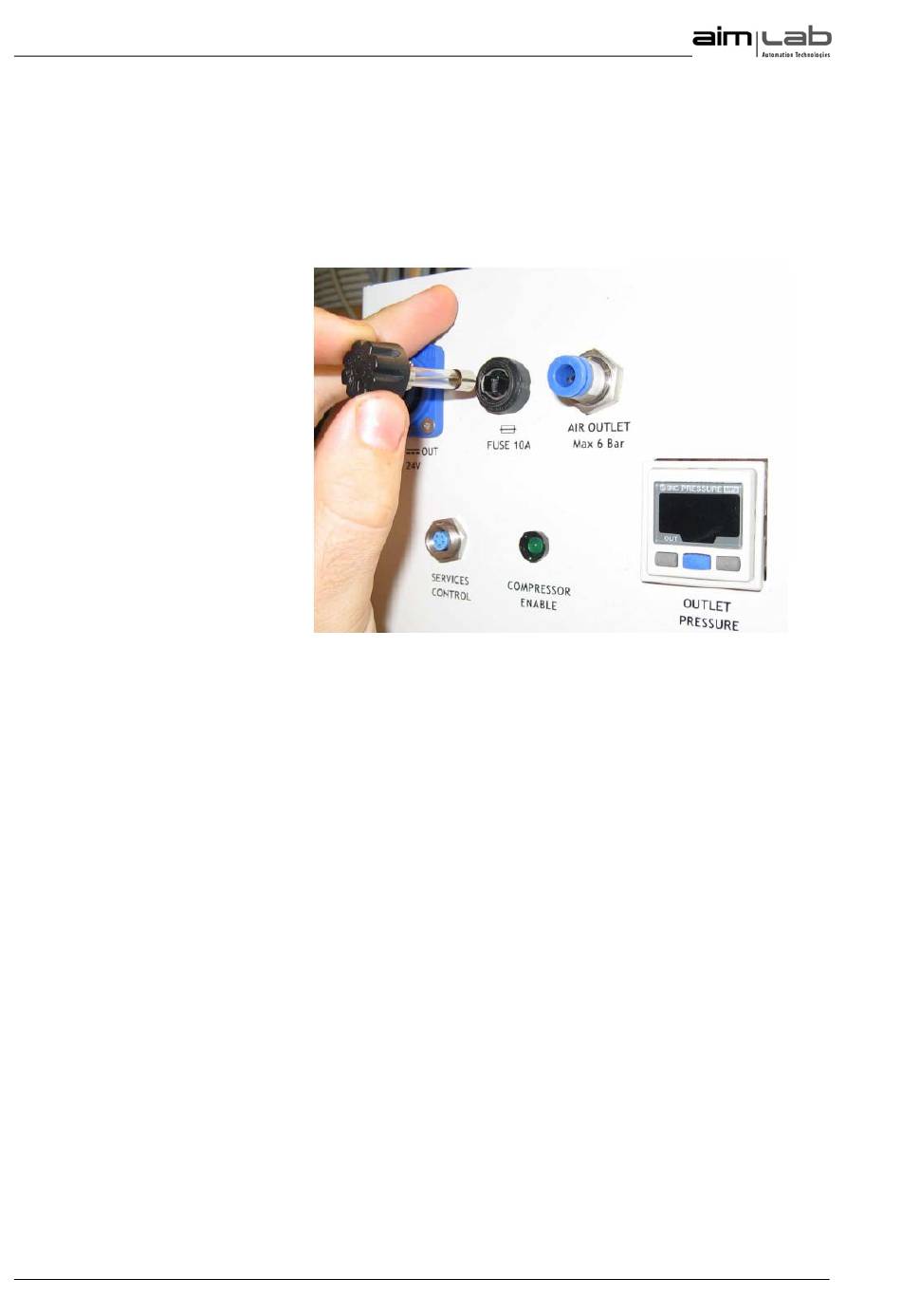

Figure 8-13 Replacing the Module Power Fuse
Slide the fuse holder back into the receptacle in the services module and
screw tight. Reconnect the power supply cable and switch on power to the
unit.
© Copyright 2010 Aim Lab Pty Ltd
03P27-42 Rev A
