Workcell - Lis Communications Log - Aim Lab PathFinder 350S User Manual

Time Stamp
Message ID
Module
Message Type
Zone
Message
User ID
6.8.8

Workcell - LIS Communications Log

The workcell to LIS communications log view shows a history of the messages sent
between the PathFinder 350S and the LIS. An example log is shown in Figure 6-33.
03P27-42 Rev A
Heading
Time the entry was created.
Message identifier.
The module to which the message applies.
The type of message (notice, debug).
The area of the module to which the message applies, if known.
The message details.
Module user, if applicable.

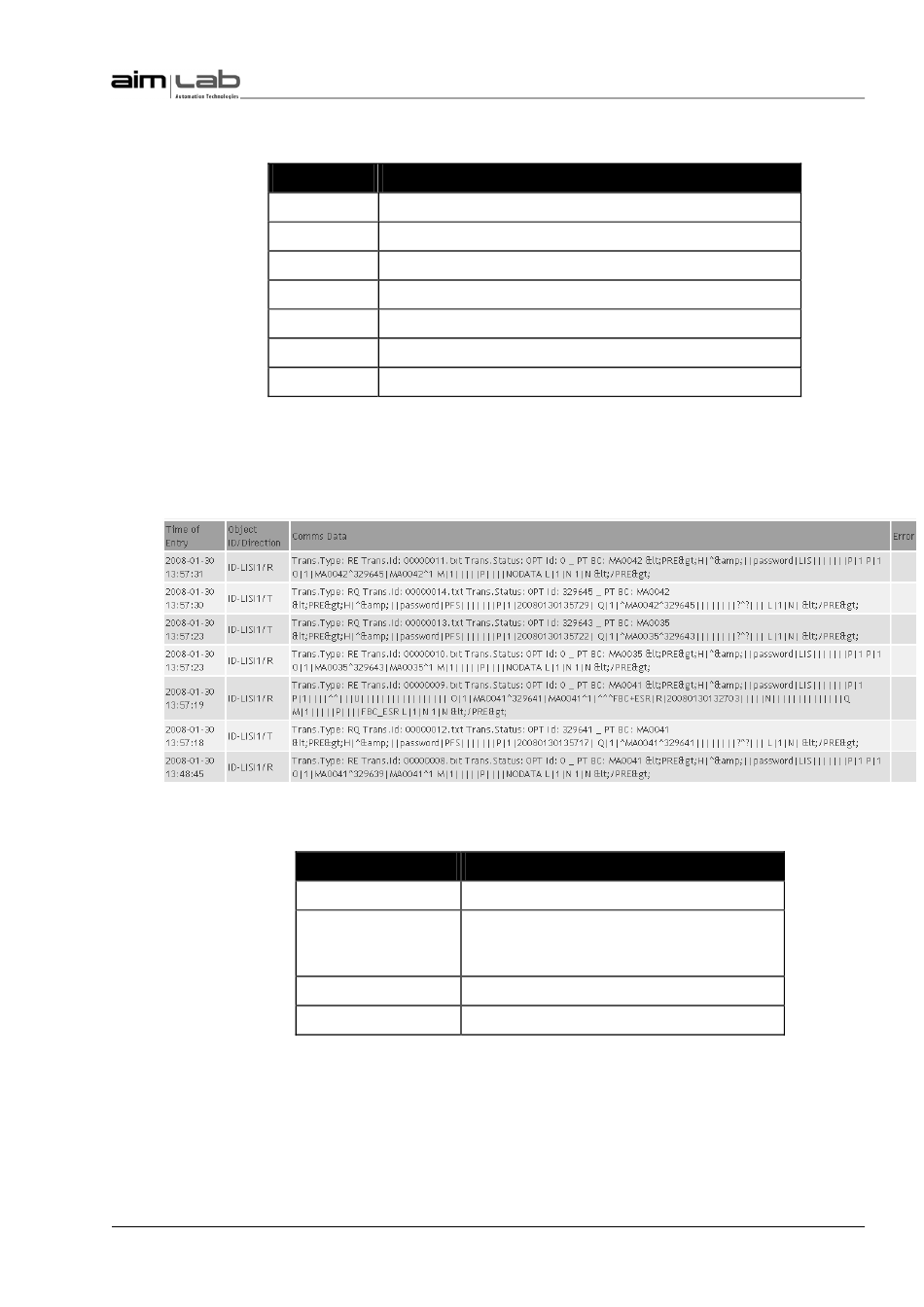

Figure 6-33 Example Workcell - LlS Communications Log View
Heading
Time of Entry Time the message was sent/received.
Object ID/Direction This details which LIS interface handled the
message, and whether it was received or
transmitted by the PathFinder 350S.
Comms Data This is the LIS message content.
Error Description of processing error, if any.
© Copyright 2010 Aim Lab Pty Ltd
PathFinder 350S User Manual
Descriptions
Description
Page 65
