4.2.4.2
The front cover is held in place with 2 x shoulder bolts (pre-fitted) and 2 x M4
countersunk screws. Attach the front cover to the Sorter by following the procedure
below:
1)
2)
Page 30
Front Cover

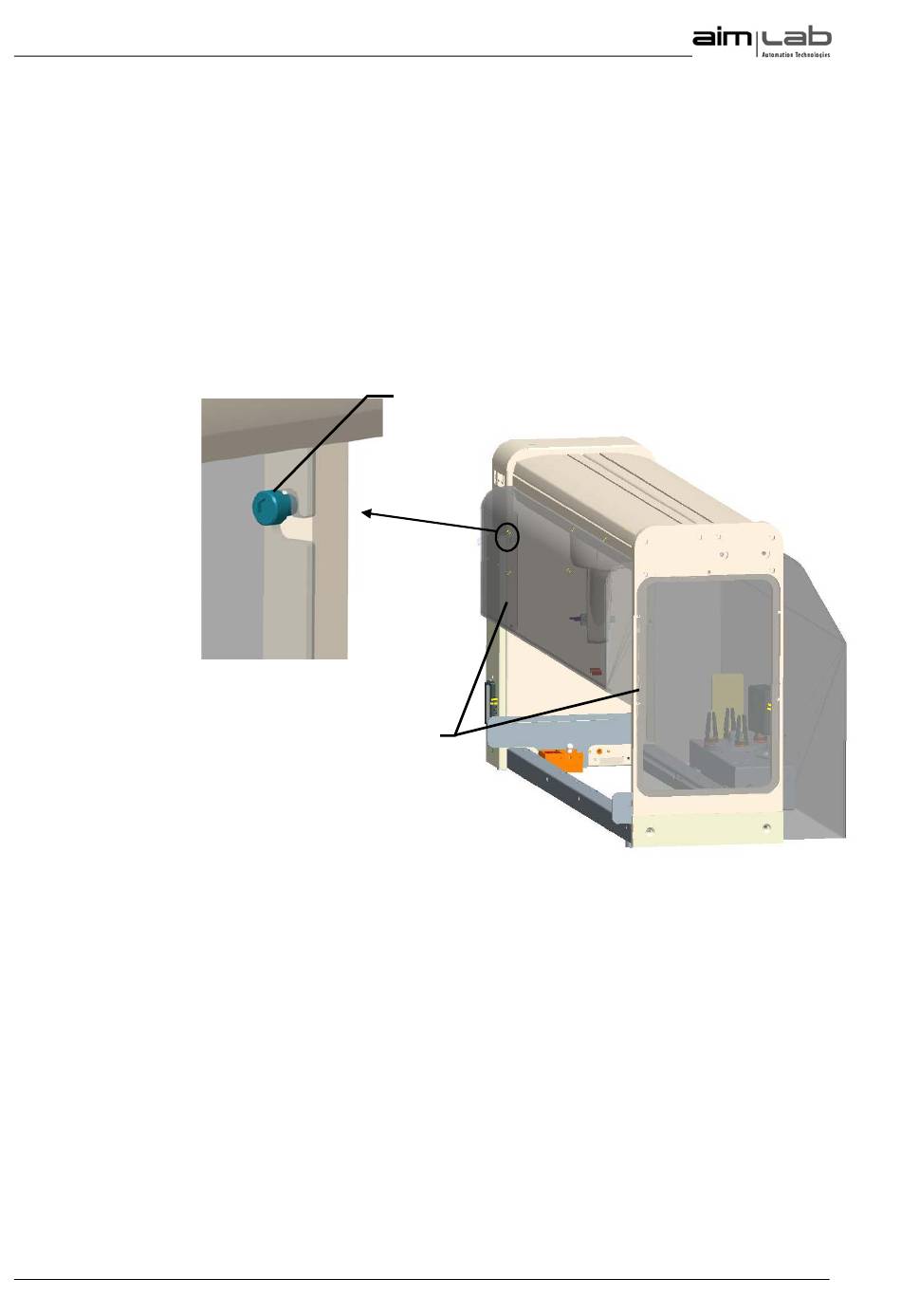

The two shoulder bolts on the Sorter frame fit slots cut into the front cover,
as shown in the inset figure. Slide the front cover over the shoulder bolts.
Secure the front cover to the Sorter frame by screwing the two M4
countersunk screws through the lower two holes in the cover.
M4 Screws
© Copyright 2010 Aim Lab Pty Ltd
Shoulder Bolt
Figure 4-7 Front Cover Installation
03P27-42 Rev A
